85155 Murr Elektronik AC/DC Power Supplies
Part#:85155
Manufacturer:Murr Elektronik
Product Lifecycle:Active
Get a quick Quote!

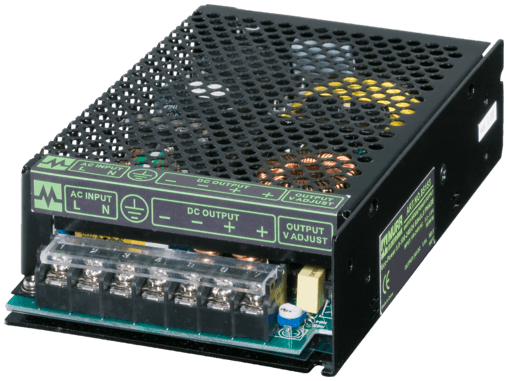

85155 Murrelektronik - ECO-POWER POWER SUPPLY 1-PHASE, IN: 90-132 VAC/180-264 VAC OUT: 24V/10ADC, protection class of the housing IP00
About the manufacturer: Murr Elektronik is one of the manufacturers that offers AC/DC Power Supplies that you can order at marketplace.quotebeam.com. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.
Check out the 85155 Murr Elektronik price in the box on the right side or send a quick quote.
Product Details
- Weight1100 g
- SeriesTransformators/Power Supplies
- Relative humidity 20...90%, no condensation
- Spikes max. 200 mV ss/pp
- Parallel usage/serial usage no/yes (max. 2 units)
- Unit protection short-circuit and overload protected
- Output current 10 A (+40 °C); 8 A (+50 °C)
- Inrush current after 1 ms max. 20 A
- LED display LED (green) for output voltage
- Mounting method screw fixing, M4
- Input current 4.6 A (115 V AC); 2.8 A (230 V AC)
- Temperature range 0...+40 °C, ...+50 °C derating (storage temperature -20...+85 °C)
- Input voltage 100...120 V AC/200...240 V AC
- Efficiency 84% (115 V AC); 85% (230 V AC)
- Dimensions H×W×D 50×115×230 mm
- Mains failure bridging time min. 15 ms (115 V AC); min. 15 ms (230 V AC)
- Product article number of manufacturer 85155
- Standards IEC 61010-2-201, EN 61204-3, EN 55011 B
- Frequency 50...60 Hz
- Output voltage 24 V DC ±1%
- Primary fusing external max. 16 A
- Ripple max. 30 mV eff/rms
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
85155 Description
85155 Murrelektronik - ECO-POWER POWER SUPPLY 1-PHASE, IN: 90-132 VAC/180-264 VAC OUT: 24V/10ADC, protection class of the housing IP00
