V1023081 Mersen Electronic Components
Part#:V1023081
Manufacturer:Mersen
Alt. Part#:4027597028749
Product Lifecycle:Active
Get a quick Quote!

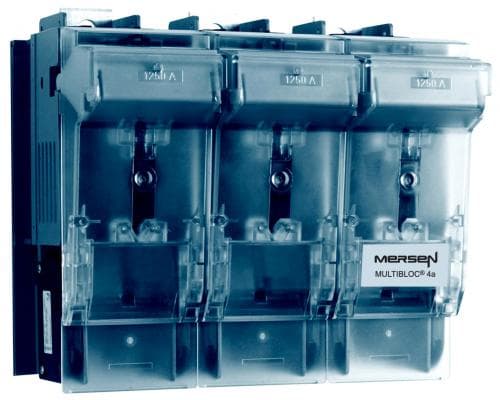

MULTIBLOC size 4a / 1250A, 3-pole M16 terminal screws, single pole switching
About the manufacturer: Mersen is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the V1023081 Mersen price in the box on the right side or send a quick quote.
Product Details
- Switchability 1-,3-pole switching
- Rated Insulation Voltage 800 V
- Installation Mounting Bottom Fitting/panel
- Product Height 12.99 in
- Ampere Rating 1250 A
- Degree of Pollution 3
- Max Power dissipation of Solid Links Pn 42 W
- Product Length 9.17 in
- Frequency 50...60 Hz
- Rated Impulse Withstand Voltage 8 kV
- Power Dissipation by Ith without Fuse-Links 180 W
- Sell Pack Weight 27.558 lb
- Rated voltage AC IEC 400 V
- Rated Duty uninterrupted duty
- Fuse Size 4a
- Utilization Category DC 20 B @ Ue = DC 1000 V; Ie = 1250 A (with solid links)
- Conventional Free Air thermal Current - Solid Links 1500 A
- Comments Cable termination components : M16 terminal screws
- Number of Poles 3-Pole
- Sell Pack Length 15.75 in
- Power Dissipation by Ith without Solid Links 180 W
- Max Power dissipation of Fuse Links Pn 115 W
- ROHS Compliant Yes
- Product Weight 27.558 lb
- Conventional Free Air thermal Current With Fuse-Links Ith 1250 A
- Rated short circuit making capacity with solid links Icm 100 kA
- Sell Pack Width 15.75 in
- Rated SC Withstand 50 kA / 1 s
- Catalogue No. 1.000.089
- Product Width 14.88 in
- Sell Pack Height 11.42 in
- Design Details single pole switching
- Sell Pack Quantity 1 EACH
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents V1023081 Specs
