V1023058 Mersen Electronic Components
Part#:V1023058
Manufacturer:Mersen
Alt. Part#:4027597029654
Product Lifecycle:Active
Get a quick Quote!

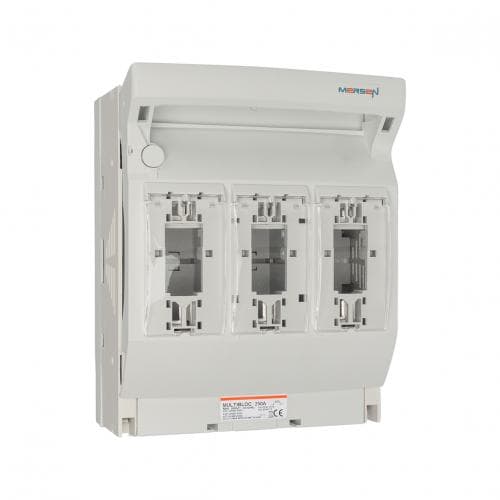

MULTIBLOC 1.ST8 size 1 / 250A, 3-pole clamp strap 1.000.420 / M 10 screws
About the manufacturer: Mersen is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the V1023058 Mersen price in the box on the right side or send a quick quote.
Product Details
- Frequency 50...60 Hz
- Rated Duty uninterrupted duty
- Rated SC Withstand 8 kA / 1 s
- Max Power dissipation of Fuse Links Pn 23 W
- Product Length 4.35 in
- Fuse Size 1
- Utilization Category AC22B @ Ue = AC 500 V; Ie = 250 A
- Max Power dissipation of Solid Links Pn 2.6 W
- Sell Pack Length 9.76 in
- Rated voltage AC IEC 690 V
- Number of Poles 3-Pole
- Power Dissipation by Ith without Fuse-Links 13 W
- Installation Mounting Bottom Fitting/panel
- Product Height 9.69 in
- Switchability 1-,2-,3-,4-pole switching
- Conventional Free Air thermal Current With Fuse-Links Ith 250 A
- Rated short circuit making capacity with solid links Icm 8.2 kA
- Sell Pack Width 7.36 in
- Ampere Rating 250 A
- ROHS Compliant Yes
- Rated Insulation Voltage 1000 V
- Product Width 7.28 in
- Sell Pack Weight 5.335 lb
- Catalogue No. 1.001.239
- Short Circuit Current Rating (SCCR) 80kA@Ue=AC 400 V;Ie=250 A / 80kA@Ue=AC 500 V;Ie=250 A / 80kA (1-,2-pole)@Ue=AC 690 V;Ie=200 A / 50kA (3-,4-pole)@Ue=AC 690 V;Ie=200 A
- Conventional Free Air thermal Current - Solid Links 400 A
- Comments 3 clamp straps 70–150 mm², 3 M10 terminal screws
- Sell Pack Quantity 1 EACH
- Degree of Pollution 3
- Rated Impulse Withstand Voltage 12 kV
- Product Weight 5.335 lb
- Sell Pack Height 4.41 in
- Power Dissipation by Ith without Solid Links 33 W
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents V1023058 Specs
