S300212 Mersen Fuses

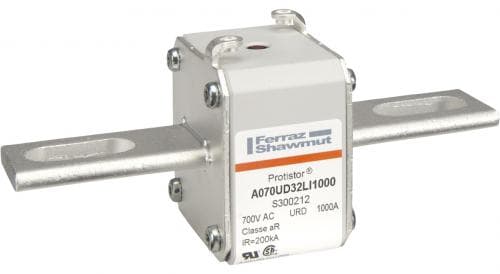

Mersen S300212 S300212 Mersen - Square Body High-Speed Fuse Protistor® Size 32 aR 690VAC IEC 700VAC UL 1000A With Striker Slotted Blades long
Mersen

Part#:S300212

Manufacturer:Mersen

Alt. Part#:3605340325027

Product Lifecycle:Active

Get a quick Quote!

S300212 Mersen - Square Body High-Speed Fuse Protistor® Size 32 aR 690VAC IEC 700VAC UL 1000A With Striker Slotted Blades long

About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the S300212 Mersen price in the box on the right side or send a quick quote.

Product Details

  • Current Rating1000 A
  • Trip ClassHigh Speed
  • Fuse ClassSemiconductor
  • Terminal TypeSlotted Blades
  • Weight744.106 g
  • Country Of OriginFR
  • Clearing I2t At Rated Voltage
    1380 kA²s
  • Product Weight
    1.639 lb
  • Fuse Size
    32
  • AC Max I.R./Breaking Capacity: I1
    200 kA
  • Sell Pack Length
    7.68 in
  • ROHS Compliant
    Yes
  • Indication System
    Yes
  • Sell Pack Width
    6.3 in
  • Mounting
    Bolted
  • Melting I2t
    240 kA²s
  • Connection/Terminal Material
    Silver-Plated Copper
  • Product Length
    6.02 in
  • Sell Pack Weight
    4.916 lb
  • Rated voltage AC IEC
    690 V
  • Body/Insulating Material
    Ceramic
  • Sell Pack Quantity
    3 EACH
  • Rated voltage AC UL
    700 V
  • Power Dissipation at Rated Current Value
    135 W
  • Connection/Terminal Type
    Slotted Blades
  • Ampere Rating
    1000 A
  • Speed/Characteristic
    aR
  • Product Width
    2.32 in
  • Sell Pack Height
    2.83 in
  • Catalogue No.
    A070UD32LI1000
  • Indication System Type
    Striker
  • Product Height
    2.56 in

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

S300212 Description

S300212 Mersen - Square Body High-Speed Fuse Protistor® Size 32 aR 690VAC IEC 700VAC UL 1000A With Striker Slotted Blades long

Product type: Semiconductor Protection Fuses

The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.

The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. Fuses are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.

Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.

*Multiple body sizes and terminals or blades combination

*aR Class according to IEC 60269-4 and VDE 636-23

*Very low I²t for improved semiconductor protection

*Ultra fast acting

*Current limiting

*Superior cycling capability

Related documents S300212 Specs

S300212 DS-Semiconductor-Protection-Square-Body-Fuses-Protistor-Size-32-aR-450-to-690VAC-IEC-700VAC-UL-EN (EN,PDF,1806Ko).pdf
