S300005 Mersen Fuses
Part#:S300005
Manufacturer:Mersen
Alt. Part#:3605340322293
Product Lifecycle:Active
Get a quick Quote!

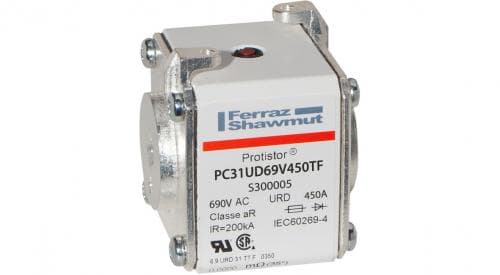

S300005 Mersen - Square Body High-Speed Fuse Protistor® Size 31 aR 690VAC IEC 700VAC UL 450A With Striker Flush ends metric threads
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the S300005 Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating450 A
- Trip ClassHigh Speed
- Fuse ClassSemiconductor
- Terminal TypeEnd Contact with Threaded Holes
- Weight382.722 g
- Country Of OriginFR
- Melting I2t 26500 A²s
- Rated voltage AC UL 700 V
- Product Weight 0.843 lb
- Product Width 2.01 in
- Sell Pack Length 6.61 in
- Mounting Bolted
- Ampere Rating 450 A
- Connection/Terminal Type End Contact with Threaded Holes
- Product Length 1.99 in
- Sell Pack Height 2.56 in
- Rated voltage AC IEC 690 V
- Fuse Size 31
- Connection/Terminal Material Silver-Plated Brass
- Indication System Yes
- Sell Pack Width 3.35 in
- Catalogue No. PC31UD69V450TF
- AC Max I.R./Breaking Capacity: I1 200 kA
- Body/Insulating Material Ceramic
- Sell Pack Weight 2.53 lb
- Power Dissipation at Rated Current Value 70 W
- Product Height 2.22 in
- Clearing I2t At Rated Voltage 155000 A²s
- Speed/Characteristic aR
- Indication System Type Striker
- Sell Pack Quantity 3 EACH
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
S300005 Description
S300005 Mersen - Square Body High-Speed Fuse Protistor® Size 31 aR 690VAC IEC 700VAC UL 450A With Striker Flush ends metric threads
Product type: Semiconductor Protection Fuses
The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.
They have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.
Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
*Multiple body sizes and terminals or blades combination
*aR Class according to IEC 60269-4 and VDE 636-23
*Very low I²t for improved semiconductor protection
*Ultra fast acting
*Current limiting
*Superior cycling capability
Related documents S300005 Specs
