S1023217 Mersen Electronic Components
Part#:S1023217
Manufacturer:Mersen
Alt. Part#:9008567001561
Product Lifecycle:Active
Get a quick Quote!

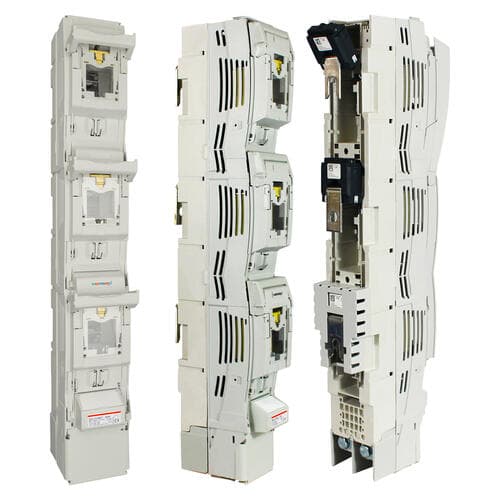

MULTIVERT 400A, 3-pole switching, mod. V-terminal, integrated C.T. triple pole
About the manufacturer: Mersen is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the S1023217 Mersen price in the box on the right side or send a quick quote.
Product Details
- Frequency 50...60 Hz
- Design Details MULTIVERT® 1.270.000 with integrated C.T. 400/5A, 3,75 VA, class 1 for triple pole measurement
- Installation Mounting Bus bar system 185 mm
- Rated Impulse Withstand Voltage 12 kV
- Ampere Rating 400 A
- Rated Insulation Voltage 1000 V
- Conventional Free Air thermal Current With Fuse-Links Ith 400 A
- Power Dissipation by Ith without Solid Links 151 W
- Sell Pack Length 27.09 in
- Catalogue No. 1.270.094
- Rated Duty uninterrupted duty
- Rated SC Withstand 8 kA / 1 s
- Product Height 26.97 in
- Switchability 1 x triple pole, 3 x single pole
- Number of Poles 3-Pole
- Max Power dissipation of Solid Links Pn 9 W
- Product Width 3.86 in
- Sell Pack Quantity 1 EACH
- Rated voltage AC IEC 690 V
- Degree of Pollution 3
- Max Power dissipation of Fuse Links Pn 34 W
- Product Weight 11.927 lb
- Product Length 7.48 in
- Sell Pack Weight 11.927 lb
- Utilization Category AC23B @ Ue = AC 400 V; Ie = 400 A
- Short Circuit Current Rating (SCCR) 120kA@Ue = AC 400 V; Ie = 400 A / 120kA@Ue = AC 500 V; Ie = 400 A / 120kA@Ue = AC 690 V; Ie = 315 A / 100kA@Ue = AC 690 V; Ie = 400 A
- Sell Pack Height 7.68 in
- ROHS Compliant Yes
- Fuse Size 2
- Rated short circuit making capacity with solid links Icm 16 kA
- Comments Cable termination components : V-terminal for V-terminal clamps size 1,2,3
- Sell Pack Width 3.94 in
- Power Dissipation by Ith without Fuse-Links 61 W
- Conventional Free Air thermal Current - Solid Links 630 A
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
