S1023056 Mersen Electronic Components
Part#:S1023056
Manufacturer:Mersen
Alt. Part#:9008567002179
Product Lifecycle:Active
Get a quick Quote!

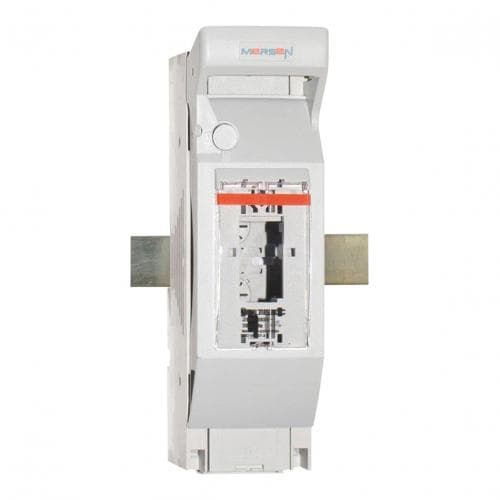

MULTIBLOC 1.ST8 size 1/250A, 1-pole bus bar installation, screws M 10
About the manufacturer: Mersen is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the S1023056 Mersen price in the box on the right side or send a quick quote.
Product Details
- Frequency 50...60 Hz
- Rated Duty uninterrupted duty
- Max Power dissipation of Fuse Links Pn 23 W
- Product Width 2.8 in
- Sell Pack Length 9.69 in
- Rated Impulse Withstand Voltage 12 kV
- Power Dissipation by Ith without Solid Links 10 W
- Product Height 9.69 in
- Rated voltage AC IEC 690 V
- Rated SC Withstand 8 kA / 1 s
- Comments Cable termination components : 2 M10 terminal screws
- Product Length 4.35 in
- Degree of Pollution 3
- Utilization Category AC22B @ Ue = AC 500 V; Ie = 250 A
- Short Circuit Current Rating (SCCR) 80kA@Ue=AC 400 V;Ie=250 A / 80kA@Ue=AC 500 V;Ie=250 A / 80kA (1-,2-pole)@Ue=AC 690 V;Ie=200 A / 50kA (3-,4-pole)@Ue=AC 690 V;Ie=200 A
- Rated Insulation Voltage 1000 V
- Installation Mounting Bottom Fitting/panel
- Sell Pack Quantity 1 EACH
- Design Details for direct installation on to bus bars with M10 screws
- Conventional Free Air thermal Current With Fuse-Links Ith 250 A
- Sell Pack Height 4.41 in
- Switchability 1-,2-,3-,4-pole switching
- ROHS Compliant Yes
- Max Power dissipation of Solid Links Pn 2.6 W
- Sell Pack Width 3.11 in
- Product Weight 2.006 lb
- Catalogue No. 1.001.818
- Fuse Size 1
- Ampere Rating 250 A
- Power Dissipation by Ith without Fuse-Links 4 W
- Rated short circuit making capacity with solid links Icm 8.2 kA
- Conventional Free Air thermal Current - Solid Links 400 A
- Sell Pack Weight 2.006 lb
- Number of Poles 1-Pole
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
