Q331168 Mersen Fuse Holders
Part#:Q331168
Manufacturer:Mersen
Alt. Part#:0782001311315
Product Lifecycle:Active
Get a quick Quote!
Q331168 Mersen - Fuse Holder UltraSafe™ 800VAC 1000VDC UL Fuse size 22x58 2-Pole Visual Indicator 2c.x Microswitch con. Pressure Plate IP20
About the manufacturer: Mersen is one of the manufacturers that offers Fuse Holders that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the Q331168 Mersen price in the box on the right side or send a quick quote.
Product Details
- Number of Poles2 Pole
- Current Rating125 A
- Voltage800 VAC
- Weight467.166 g
- ROHS Compliant Yes
- Number of Poles 2-Pole
- Product Length 3.01 in
- Ampere Rating 125
- Catalogue No. US222M2I
- Torque Rating 35.4 lb-in
- Conventional Free Air thermal Current With Fuse-Links Ith 125 A
- Sell Pack Width 5.12 in
- Rated voltage AC IEC 690 V
- Connection/Terminal Material Tin-Plated Copper
- Body/Insulating Material Polyamide
- Comments Wiring tool : PZ2 or flat 6.5x1.2mm screw drivers recommended (max. diameter 7mm)
- Sell Pack Weight 3.086 lb
- Rated voltage DC UL 1000 V
- Indication System Yes
- Fuse Installation Method Clip-in
- Sell Pack Quantity 3 EACH
- Rated voltage DC IEC 690 V
- Indication System Type Visual Indicator Microswitch
- Max Fuse Rating 125 A
- Product Width 2.76 in
- Sell Pack Height 3.35 in
- Rated voltage AC UL 800 V
- Design Details double pole
- Rated Impulse Withstand Voltage 8
- Product Height 5.02 in
- Frequency 50...60 Hz
- Wiring range 1/0 - #14
- Installation Mounting DIN rail acc. EN 60715
- Product Weight 1.029 lb
- Short Circuit Current Rating (SCCR) 100 kA
- Fuse Size 22x58
- Connection/Terminal Type Clip
- Rated Insulation Voltage 750 V
- Sell Pack Length 9.06 in
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Q331168 Description

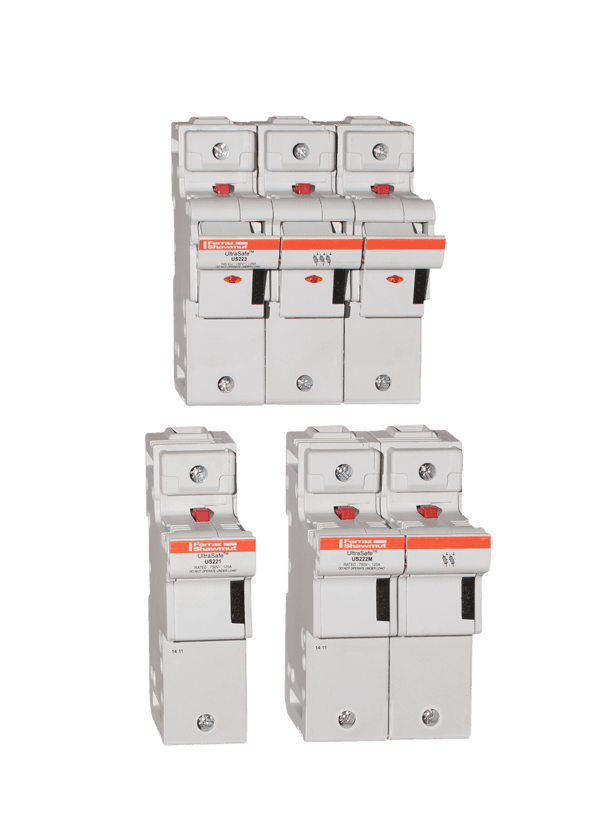

Q331168 Mersen - Fuse Holder UltraSafe™ 800VAC 1000VDC UL Fuse size 22x58 2-Pole Visual Indicator 2c.x Microswitch con. Pressure Plate IP20 | The innovative and comprehensive UltraSafe™ range of Mersen fuse-holders.
Modular fuse-holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in UL + IEC version.
Multi-pole units can also be field assembled by ordering pin-ties assembly kit. In this size, the range also offers the possibility to use microswitches (supplied with the holders or ordered separately) to allow remote indication.
UltraSafe™ range is made of tough and durable thermoplastic or thermoset material. | Features: *Finger safe
*Degree of protection: IP20
*Optional visual blown fuse indicator & microswitch
*DIN rail mounting
*Modular design
*Lockable
*Multi-pole assembly kit available
*Sealable in closed and open position
*Plastic material UL94V2 mini
*Flame retardant materials with glow wire flammability index to 960°C | Application: *All circuits up to 750VAC for protection of motors,
*transformers, low voltage distribution, control circuits
*Non-load operation
Related documents Q331168 Specs
