Q331145 Mersen Fuse Holders
Part#:Q331145
Manufacturer:Mersen
Alt. Part#:0782001310141
Product Lifecycle:Active
Get a quick Quote!

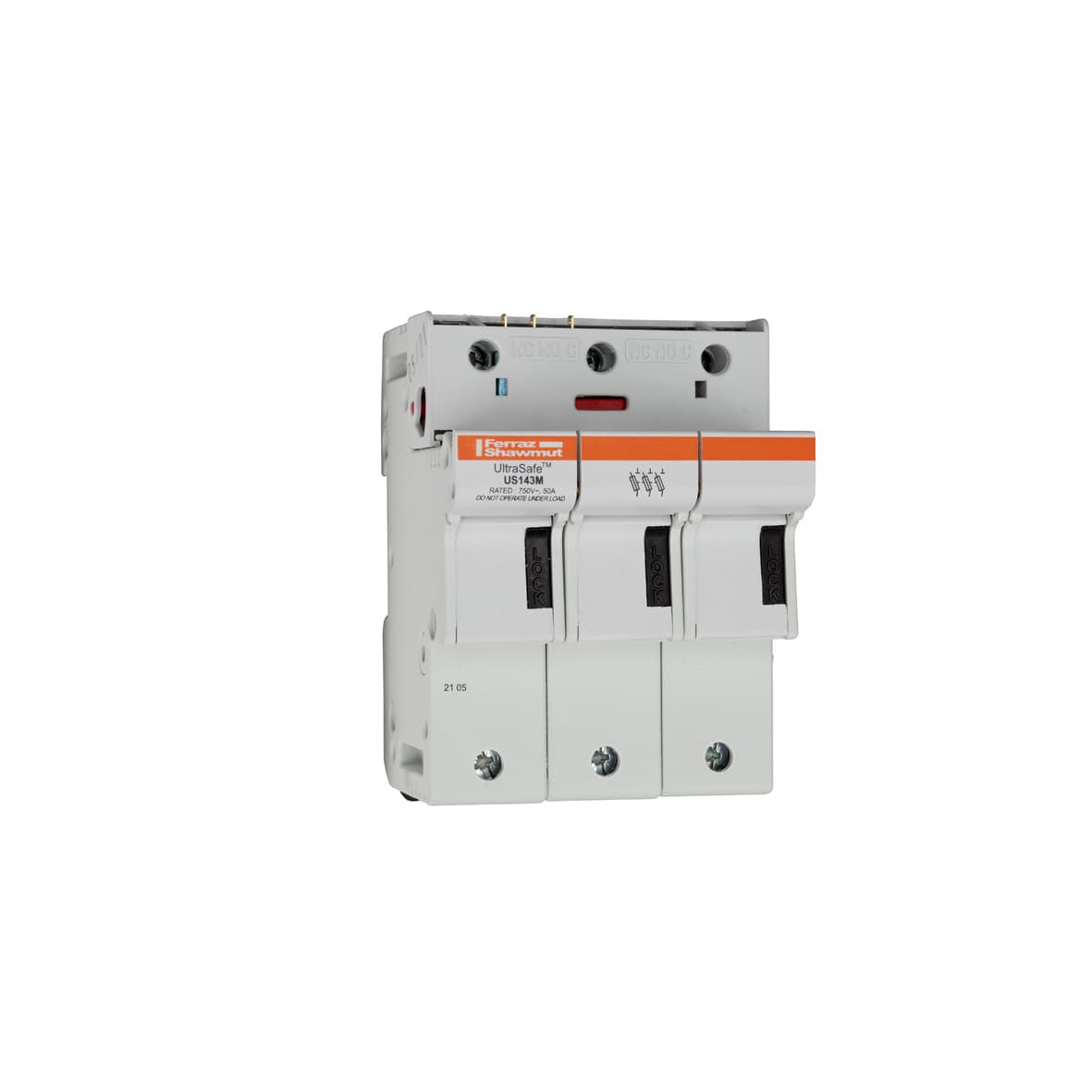

Q331145 Mersen - Fuse Holder UltraSafe™ 800VAC 1000VDC UL Fuse size 14x51 3-Pole Microswitch Pressure Plate IP20
About the manufacturer: Mersen is one of the manufacturers that offers Fuse Holders that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the Q331145 Mersen price in the box on the right side or send a quick quote.
Product Details
- Number of Poles3 Pole
- Current Rating50 A
- Voltage800 VAC
- Weight448.098 g
- Rated voltage AC UL 800 V
- ROHS Compliant Yes
- Connection/Terminal Type Clip
- Rated Insulation Voltage 690 V
- Product Height 4.36 in
- Rated voltage DC IEC 750 V
- Short Circuit Current Rating (SCCR) 100 kA
- Wiring range #2 - #14
- Rated Impulse Withstand Voltage 8
- Product Length 3.01 in
- Sell Pack Length 7.24 in
- Frequency 50...60 Hz
- Catalogue No. US143M
- Indication System Type Microswitch
- Body/Insulating Material Polyamide
- Product Width 2.09 in
- Sell Pack Height 3.35 in
- Fuse Size 14x51
- Connection/Terminal Material Tin-Plated Copper
- Max Fuse Rating 50 A
- Product Weight 0.987 lb
- Sell Pack Width 4.72 in
- Rated voltage AC IEC 750 V
- Ampere Rating 50
- Number of Poles 3-Pole
- Torque Rating 30.98 lb-in
- Conventional Free Air thermal Current With Fuse-Links Ith 50 A
- Sell Pack Weight 1.973 lb
- Rated voltage DC UL 1000 V
- Indication System Yes
- Fuse Installation Method Clip-in
- Installation Mounting DIN rail acc. EN 60715
- Sell Pack Quantity 2 EACH
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Q331145 Description
Q331145 Mersen - Fuse Holder UltraSafe™ 800VAC 1000VDC UL Fuse size 14x51 3-Pole Microswitch Pressure Plate IP20 | The innovative and comprehensive UltraSafe™ range of Mersen fuse-holders.
Modular fuse-holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in UL + IEC version.
Multi-pole units can also be field assembled by ordering pin-ties assembly kit. In this size, the range also offers the possibility to use microswitches (supplied with the holders or ordered separately) to allow remote indication.
UltraSafe™ range is made of tough and durable thermoplastic or thermoset material. | Features: *Finger safe
*Degree of protection: IP20
*Optional visual blown fuse indicator & microswitch
*DIN rail mounting
*Modular design
*Lockable
*Multi-pole assembly kit available
*Sealable in closed and open position
*Plastic material UL94V2 mini
*Flame retardant materials with glow wire flammability index to 960°C | Application: *All circuits up to 750VAC for protection of motors,
*transformers, low voltage distribution, control circuits
*Non-load operation
