HP6J400 Mersen Fuses
Part#:HP6J400
Manufacturer:Mersen
Alt. Part#:782001426729
Product Lifecycle:Active
Get a quick Quote!

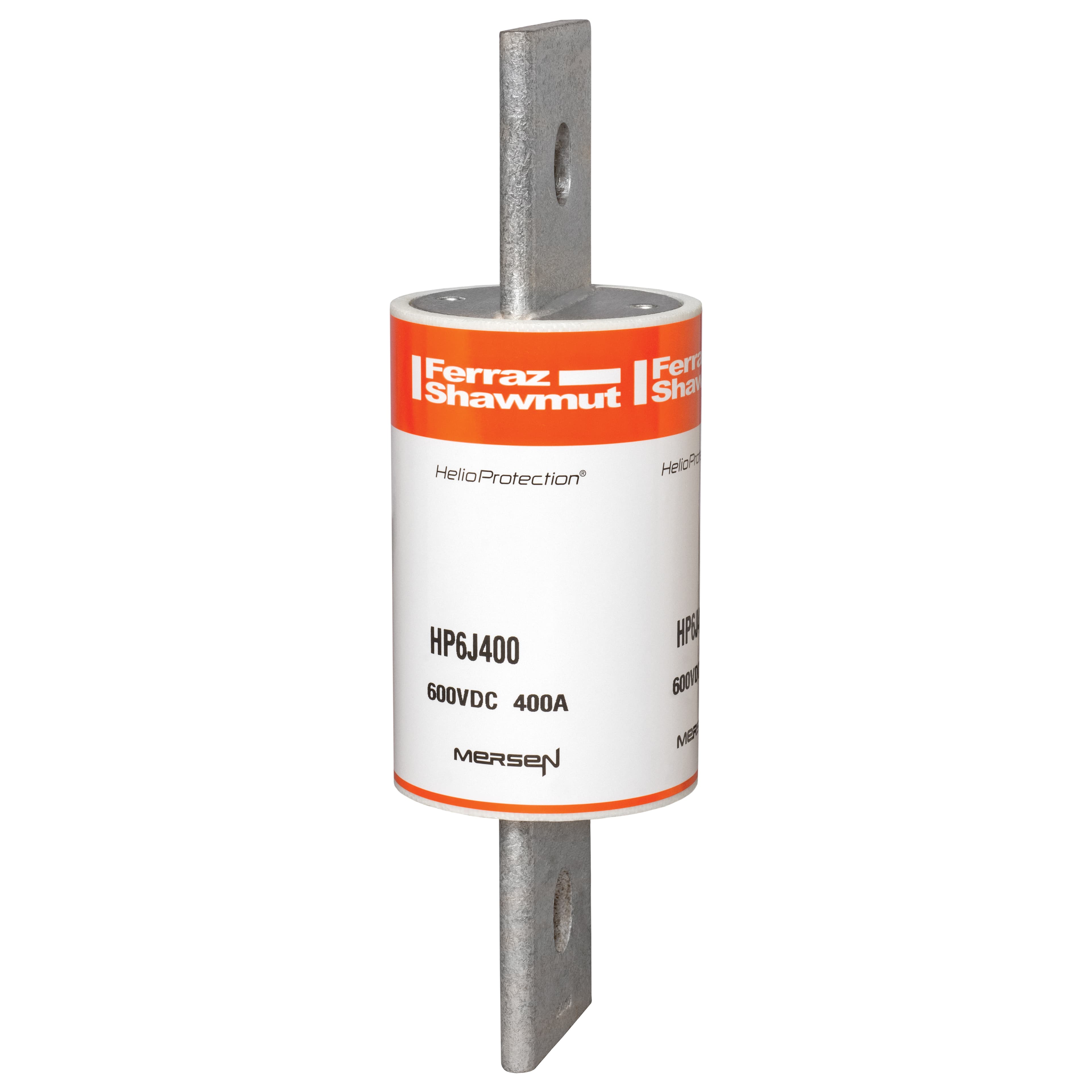

HP6J400 Mersen Photovoltaic fuse gPV 600VDC UL 400A With Blade For Clip or Bolted
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the HP6J400 Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating400 A
- Voltage600 VDC
- Trip ClassPhotovoltaic
- TypePhotovoltaic Fuses
- Fuse ClassSpecial Purpose Fuses
- Terminal TypeBlade
- UL CertificationYES
- Weight1.75 lb
- Country Of OriginMX
- Mounting Clip or Bolted
- Connection/Terminal Type Blade
- Sell Pack Height 2.12 in
- Rated voltage DC UL 600 V
- Product Diameter 2.13 in
- ROHS Compliant Yes
- Sell Pack Weight 1.84 lb
- Ampere Rating 400 A
- Sell Pack Width 2.12 in
- Fuse Class Photovoltaic
- Body/Insulating Material GMG
- Sell Pack Length 7.25 in
- Connection/Terminal Material Silver-Plated Copper
- Sell Pack Quantity 1 Each
- AC Max I.R./Breaking Capacity: I1 10 kA
- Product Weight 1.75 lb
- Speed/Characteristic gPV
- Product Length 7.13 in
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
HP6J400 Description
HP6J400 Mersen Photovoltaic fuse gPV 600VDC UL 400A With Blade For Clip or Bolted
Mersen’s HP6J photovoltaic (PV) fuse series was engineered specifically
for DC Recombiner Boxes in the protection of 600VDC photovoltaic
systems. Its enhanced construction makes it ideal for continuous
temperature and current cycling withstand adding to system longevity.
The 600VDC rated HP6J designed for low minimum breaking capacity
capabilities of 1.35 times the fuse rated current value allows for safe circuit
interruption under typical low fault current conditions produced by PV
arrays. Protect your off-grid or grid tied PV system from unexpected
ground faults and line faults using Mersen’s HelioProtection® fuse line.
*Smallest footprint in the industry
*UL class J dimensions
*Low fault current interrupting capability
*Durable construction for enhanced system longevity
*Temperature cycle withstand capability
*Guaranteed operation at temperature extremes
*Industry’s first UL Listed Solution
*Globally accepted
*Re-combiner (sub-combiner, array combiner, master combiner) applications
*Inverter DC input protection
*Battery charge controllers
Related documents HP6J400 Specs
