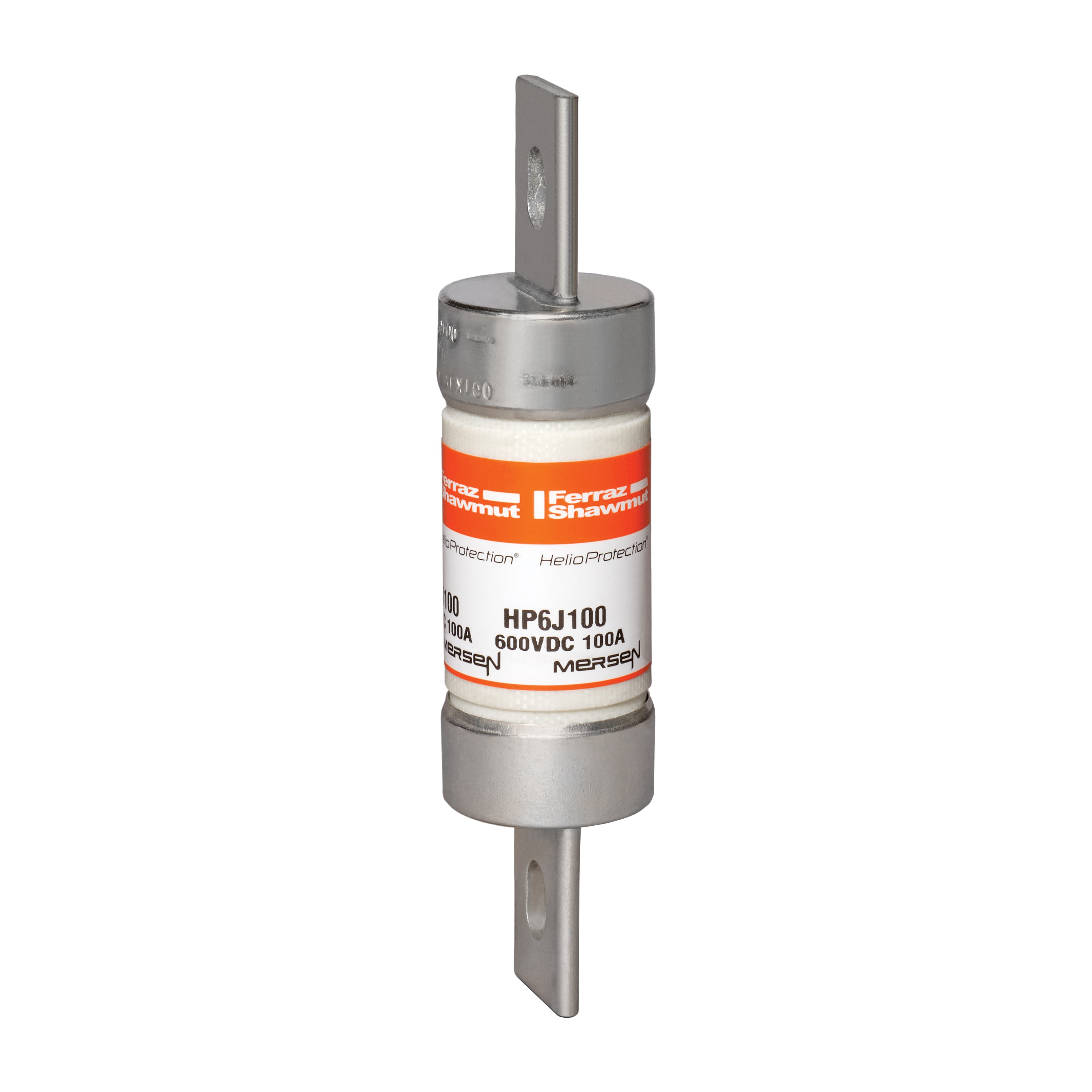

HP6J100 Mersen Fuses
Part#:HP6J100
Manufacturer:Mersen
Alt. Part#:782001426620
Product Lifecycle:Active
In-stock parts: 21
Aug 26, 2025
HP6J100 Mersen Photovoltaic fuse gPV 600VDC UL 100A With Blade For Clip or Bolted
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the HP6J100 Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating100 A
- Voltage600 VDC
- Trip ClassPhotovoltaic
- TypePhotovoltaic Fuses
- Fuse ClassSpecial Purpose Fuses
- Terminal TypeBlade
- UL CertificationYES
- Weight0.25 lb
- Country Of OriginMX
- Fuse Class Photovoltaic
- Product Diameter 1.08 in
- Mounting Clip or Bolted
- Sell Pack Height 6 in
- AC Max I.R./Breaking Capacity: I1 10 kA
- Sell Pack Quantity 5 Each
- ROHS Compliant Yes
- Body/Insulating Material GMG
- Product Length 4.62 in
- Ampere Rating 100 A
- Sell Pack Width 5.38 in
- Connection/Terminal Material Silver-Plated Copper
- Connection/Terminal Type Blade
- Product Weight 0.25 lb
- Rated voltage DC UL 600 V
- Sell Pack Length 1.06 in
- Speed/Characteristic gPV
- Sell Pack Weight 1.31 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
HP6J100 Description
HP6J100 Mersen Photovoltaic fuse gPV 600VDC UL 100A With Blade For Clip or Bolted
Mersen’s HP6J photovoltaic (PV) fuse series was engineered specifically
for DC Recombiner Boxes in the protection of 600VDC photovoltaic
systems. Its enhanced construction makes it ideal for continuous
temperature and current cycling withstand adding to system longevity.
The 600VDC rated HP6J designed for low minimum breaking capacity
capabilities of 1.35 times the fuse rated current value allows for safe circuit
interruption under typical low fault current conditions produced by PV
arrays. Protect your off-grid or grid tied PV system from unexpected
ground faults and line faults using Mersen’s HelioProtection® fuse line.
*Smallest footprint in the industry
*UL class J dimensions
*Low fault current interrupting capability
*Durable construction for enhanced system longevity
*Temperature cycle withstand capability
*Guaranteed operation at temperature extremes
*Industry’s first UL Listed Solution
*Globally accepted
*Re-combiner (sub-combiner, array combiner, master combiner) applications
*Inverter DC input protection
*Battery charge controllers
Related documents HP6J100 Specs
