F1000275 Mersen Fuses

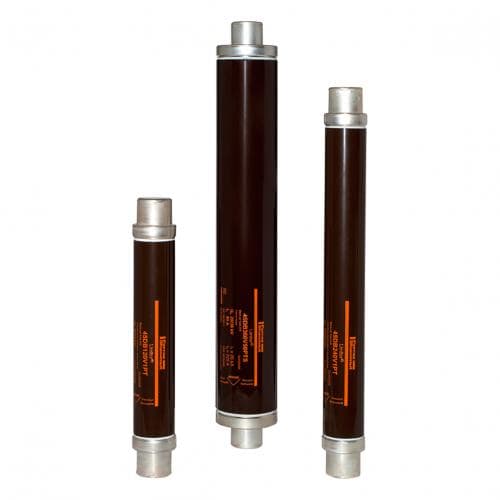

Mersen F1000275 F1000275 Mersen - High Voltage DIN Back-up fuse for Transformer Limitor® VDE T402 24kVAC IEC 6.3A d56mm, L442mm With Thermal Striker 80N
Mersen

Part#:F1000275

Manufacturer:Mersen

Alt. Part#:3605340456400

Product Lifecycle:Active

Get a quick Quote!

F1000275 Mersen - High Voltage DIN Back-up fuse for Transformer Limitor® VDE T402 24kVAC IEC 6.3A d56mm, L442mm With Thermal Striker 80N

About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the F1000275 Mersen price in the box on the right side or send a quick quote.

Product Details

  • Current Rating6.3 A
  • Voltage24 kV AC
  • Fuse ClassHigh Voltage IEC Fuses
  • Terminal TypeCylindrical
  • Weight5.291 lb
  • Country Of OriginHU
  • Min Interrupting Rating (MBC)
    23 A
  • Rated voltage AC IEC
    24 kV
  • Body/Insulating Material
    Ceramic
  • Power Dissipation at Rated Current Value
    31 W
  • Connection/Terminal Material
    Silver-Plated Copper
  • Catalogue No.
    45DB240V6,3PTD
  • Indication System Type
    Striker
  • Product Length
    20 in
  • Sell Pack Height
    2.36 in
  • Clearing I2t At Rated Voltage
    0.8 kA²s
  • Product Weight
    5.291 lb
  • Sell Pack Weight
    5.291 lb
  • Mounting
    Clip
  • Connection/Terminal Type
    Cylindrical
  • Fuse Size
    d=56mm, L=442mm
  • Indication System
    Yes
  • Sell Pack Width
    2.56 in
  • AC Max I.R./Breaking Capacity: I1
    65 kA
  • Sell Pack Quantity
    1 EACH
  • Ampere Rating
    6.3 A
  • Product Diameter
    2.2 in
  • Sell Pack Length
    21.26 in

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

F1000275 Description

F1000275 Mersen - High Voltage DIN Back-up fuse for Transformer Limitor® VDE T402 24kVAC IEC 6.3A d56mm, L442mm With Thermal Striker 80N

Mersen HV fuse-links have been used for reliable protection in high-voltage switchgear and controlgear and high-voltage systems for decades.

Limitor®-PTD HV fuse-links are back-up fuses as defined in the standards: IEC 60282-1 and VDE 0670 T402 and dedicated to protect transformers in combination with air or gas insulated switchgear against the thermal and dynamic effects of short-circuit currents.

To guarantee high quality, Mersen uses the best materials: fuse-elements are in pure silver, caps are in copper coated with silver and bodies are in ceramic.

Limitor®-PTD HV fuse-links are perfectly designed to be used in combination with HV switchgear.

Siemens and Ormazabal recommend Limitor®-PTD HV fuses to be used in their gas-insulated switchgear.

High breaking capacity

*High current limitation

*Low switching voltage

*Medium striker 80N/30mm

*CPD striker: controlled power dissipation

*Indoor and outdoor applications

*Quick breaking

*Non-ageing

*Energy efficiency

*New cap design for a better compatibility with all types of clips

*and easier assembly

*Coordination with IEC 60787, IEC 62271-105, IEC/TR 62655

*and VDE 0670 T303

HV Transformer protection

Related documents F1000275 Specs

F1000275 DS-Limitor-PTD-back-up-fuse-links-with-controlled-power-dissipation-EN (EN,PDF,1256Ko).pdf
