F1000160 Mersen Fuses
Part#:F1000160
Manufacturer:Mersen
Alt. Part#:3605340453331
Product Lifecycle:Active
Get a quick Quote!

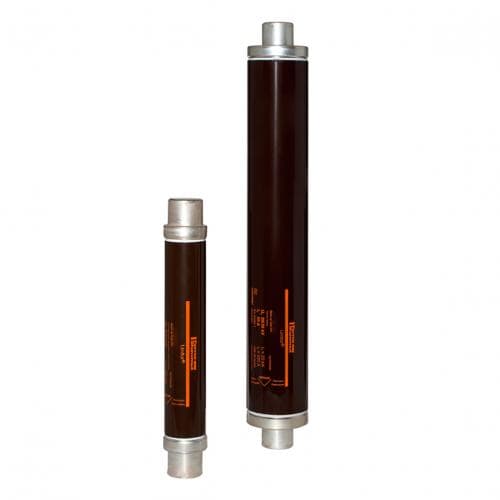

F1000160 Mersen - High Voltage DIN General Purpose fuse for Transformer Limitor® 24kVAC IEC 16A d78mm, L442mm With Striker 80N
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the F1000160 Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating16 A
- Voltage24 kV AC
- Fuse ClassHigh Voltage IEC Fuses
- Terminal TypeCylindrical
- Weight9.039 lb
- Country Of OriginHU
- Rated voltage AC IEC 24 kV
- Min Interrupting Rating (MBC) 0
- Fuse Size d=78mm, L=442mm
- Clearing I2t At Rated Voltage 14 kA²s
- Indication System Type Striker
- Product Weight 9.039 lb
- Sell Pack Weight 9.039 lb
- Catalogue No. 45DG240V16P
- AC Max I.R./Breaking Capacity: I1 40 kA
- Indication System Yes
- Ampere Rating 16 A
- Mounting Clip
- Power Dissipation at Rated Current Value 21 W
- Connection/Terminal Material Silver-Plated Copper
- Product Length 20 in
- Sell Pack Length 21.65 in
- Connection/Terminal Type Cylindrical
- Product Diameter 3.07 in
- Sell Pack Width 3.54 in
- Body/Insulating Material Ceramic
- Sell Pack Quantity 1 EACH
- Sell Pack Height 3.94 in
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
F1000160 Description
F1000160 Mersen - High Voltage DIN General Purpose fuse for Transformer Limitor® 24kVAC IEC 16A d78mm, L442mm With Striker 80N
Mersen HV fuse-links have been used for reliable protection in high-voltage switchgear and controlgear and high-voltage systems for decades.
Limitor®-G HV fuses are general purpose fuses as defined in the IEC 60282-1 standard and dedicated to protect transformers against effects of short-circuit currents and low overcurrents.
To guarantee high quality, Mersen uses the best materials: fuse-elements are in pure silver, caps are in copper coated with silver and bodies are in ceramic.
High breaking capacity
*High current limitation
*Low switching voltage
*Quick breaking
*Non-ageing
*Energy efficency
*New cap design for a better compatibility with all types of clips
*and easier assembly
*Coordination with IEC 60787, IEC 62271-105 and VDE 0670 T303
HV Transformer protection
