D1017178 Mersen Fuses
Part#:D1017178
Manufacturer:Mersen
Alt. Part#:3605340506754
Product Lifecycle:Active
Get a quick Quote!

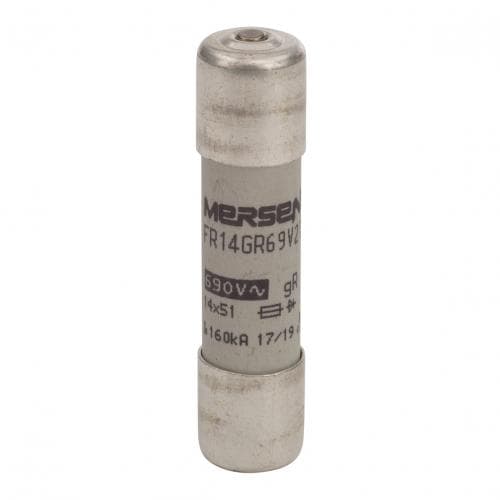

D1017178 Mersen - High-Speed Cylindrical Fuse Protistor® Size 14x51 gR 690VAC IEC 2A With Striker
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the D1017178 Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating2 A
- Trip ClassHigh Speed
- Fuse ClassSemiconductor
- Terminal TypeFerrule
- Weight19.976 g
- Country Of OriginTN
- Speed/Characteristic gR
- Indication System Yes
- Product Diameter 0.56 in
- Rated voltage AC IEC 690 V
- AC Max I.R./Breaking Capacity: I1 160 kA
- Product Weight 0.044 lb
- Sell Pack Weight 0.441 lb
- Catalogue No. FR14GR69V2T
- Mounting Clip
- Power Dissipation at Rated Current Value 1.75 W
- Sell Pack Quantity 10 EACH
- Clearing I2t At Rated Voltage 1.8 A²s
- Body/Insulating Material Ceramic
- Sell Pack Width 2.95 in
- Fuse Size 14x51
- Indication System Type Striker
- Sell Pack Length 4.09 in
- Melting I2t 0.9 A²s
- Connection/Terminal Material Silver-Plated Copper
- Sell Pack Height 0.63 in
- Ampere Rating 2 A
- Connection/Terminal Type Ferrule
- Product Length 2.01 in
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
D1017178 Description
D1017178 Mersen - High-Speed Cylindrical Fuse Protistor® Size 14x51 gR 690VAC IEC 2A With Striker
Product type: Semiconductor Protection Fuses
These Protistor® size 14x51 have been designed to protect power semi conductors, complying with standard IEC 60269-1 and -4. They are extremely high interrupting rating fuses: 690VAC, with large band of ratings (current rating 1 to 63A).
Two models are existing: with or without trip-indicator.
*IEC standard 60269-4 compliant
*UL 248-13 compliant
*gR class
*Clearing all overloads
*Improved safety and protection
*Enabling selective coordination among all
*Distribution circuit fuses
*With or without trip-indicator
