D1014579 Mersen Fuses
Part#:D1014579
Manufacturer:Mersen
Alt. Part#:3605340501018
Product Lifecycle:Active
Get a quick Quote!

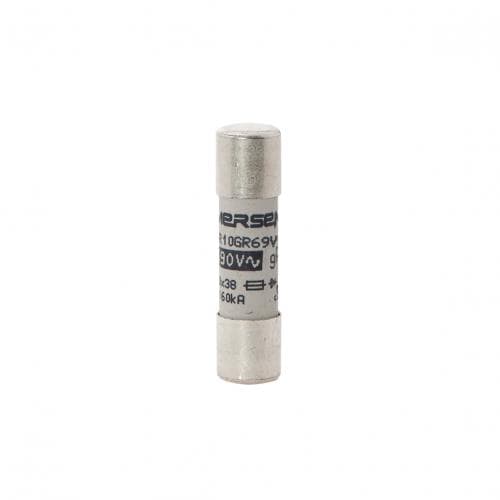

D1014579 Mersen - High-Speed Cylindrical Fuse Protistor® Size 10x38 gR 690VAC IEC 16A
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the D1014579 Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating16 A
- Trip ClassHigh Speed
- Fuse ClassSemiconductor
- Terminal TypeFerrule
- UL CertificationYES
- Weight8.172 g
- Country Of OriginFR
- Ampere Rating 16 A
- Power Dissipation at Rated Current Value 3 W
- Product Diameter 0.41 in
- Mounting Clip
- Melting I2t 19 A²s
- Body/Insulating Material Ceramic
- Speed/Characteristic gR
- AC Max I.R./Breaking Capacity: I1 160 kA
- Product Length 1.54 in
- Sell Pack Width 2.17 in
- Rated voltage AC IEC 690 V
- Clearing I2t At Rated Voltage 140 A²s
- Connection/Terminal Material Silver-Plated Copper
- Product Weight 0.018 lb
- Sell Pack Height 0.59 in
- Catalogue No. FR10GR69V16
- Fuse Size 10x38
- Connection/Terminal Type Ferrule
- Sell Pack Quantity 10 EACH
- Sell Pack Length 3.15 in
- Sell Pack Weight 0.176 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
D1014579 Description
D1014579 Mersen - High-Speed Cylindrical Fuse Protistor® Size 10x38 gR 690VAC IEC 16A
Product type: Semiconductor Protection Fuses
The 10x38 gR cylindrical is a fast acting, full range fuse used in the protection of inverters, UPS, variable speed drives and other discrete semiconductor devices.
International 10x38 mm (1-1/2" x 13/32") for worldwide acceptance
*gR Class according to IEC 60269-4 and VDE 636-23
*Low I²t for improved semiconductor protection
*Eliminate all overloads
*Extremely fast acting
*Current limiting
*Excellent cycling capability
Related documents D1014579 Specs
