C300658 Mersen Fuses

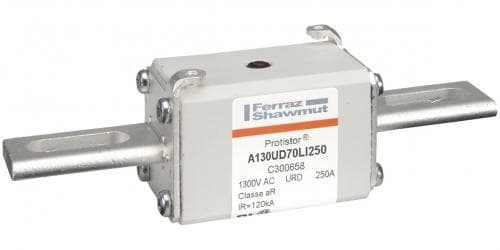

Mersen C300658 C300658 Mersen - Square Body High-Speed Fuse Protistor® Size 70 aR 1250VAC IEC 1300VAC UL 250A With Striker Slotted Blades long
Mersen

Part#:C300658

Manufacturer:Mersen

Alt. Part#:3605340331776

Product Lifecycle:Active

Get a quick Quote!

C300658 Mersen - Square Body High-Speed Fuse Protistor® Size 70 aR 1250VAC IEC 1300VAC UL 250A With Striker Slotted Blades long

About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the C300658 Mersen price in the box on the right side or send a quick quote.

Product Details

  • Current Rating250 A
  • Trip ClassHigh Speed
  • Fuse ClassSemiconductor
  • Terminal TypeSlotted Blades
  • Weight376.82 g
  • Country Of OriginFR,MX
  • Fuse Size
    70
  • Ampere Rating
    250 A
  • Product Weight
    0.83 lb
  • Sell Pack Height
    2.13 in
  • Melting I2t
    9580 A²s
  • Catalogue No.
    A130UD70LI250
  • Body/Insulating Material
    Ceramic
  • Product Height
    1.95 in
  • Mounting
    Bolted
  • Rated voltage AC IEC
    1250 V
  • Product Width
    1.57 in
  • AC Max I.R./Breaking Capacity: I1
    150 kA
  • Indication System Type
    Striker
  • Sell Pack Width
    5.24 in
  • Rated voltage AC UL
    1300 V
  • Indication System
    Yes
  • Sell Pack Weight
    2.491 lb
  • Speed/Characteristic
    aR
  • Power Dissipation at Rated Current Value
    61 W
  • Product Length
    6 in
  • Clearing I2t At Rated Voltage
    77000 A²s
  • Connection/Terminal Type
    Slotted Blades
  • Sell Pack Quantity
    3 EACH
  • Connection/Terminal Material
    Silver-Plated Copper
  • Sell Pack Length
    6.18 in

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

C300658 Description

C300658 Mersen - Square Body High-Speed Fuse Protistor® Size 70 aR 1250VAC IEC 1300VAC UL 250A With Striker Slotted Blades long

Product type: Semiconductor Protection Fuses

The 1250/1300V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.

The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors, GTO's and IGBT devices. Fuses are assembled with pure silver, die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.

All fuse-links can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.

*Multiple body sizes and terminals or blades combination

*aR Class according to VDE 636-23 and IEC 60269-4

*Very low I²t for improved semiconductor protection

*Ultra fast acting

*Current limiting

*Superior cycling capability

*Increased technical performances: higher ratings and reduction in volume and weight

Related documents C300658 Specs

C300658 DS-Semiconductor-Protection-Square-Body-Fuses-Protistor-Size-70-aR100-to300VAC-EN (EN,PDF,1379Ko).pdf
