C300129 Mersen Fuses

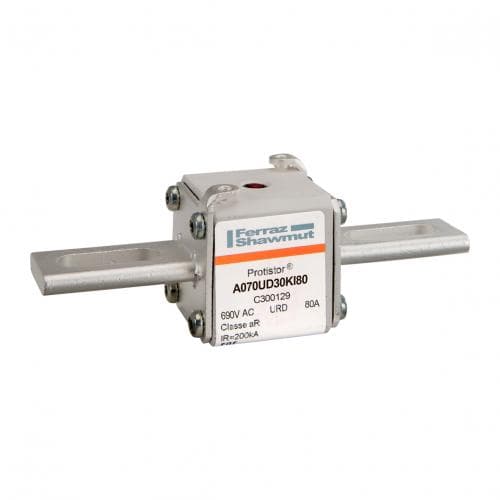

Mersen C300129 C300129 Mersen - Square Body High-Speed Fuse Protistor® Size 30 aR 690VAC IEC 700VAC UL 80A With Striker Slotted Blades short
Mersen

Part#:C300129

Manufacturer:Mersen

Alt. Part#:3605340323740

Product Lifecycle:Active

Get a quick Quote!

C300129 Mersen - Square Body High-Speed Fuse Protistor® Size 30 aR 690VAC IEC 700VAC UL 80A With Striker Slotted Blades short

About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the C300129 Mersen price in the box on the right side or send a quick quote.

Product Details

  • Current Rating80 A
  • Trip ClassHigh Speed
  • Fuse ClassSemiconductor
  • Terminal TypeSlotted Blades
  • Weight291.468 g
  • Country Of OriginFR
  • Melting I2t
    0.33 kA²s
  • Indication System
    Yes
  • Product Height
    1.89 in
  • Speed/Characteristic
    aR
  • Product Width
    1.57 in
  • Fuse Size
    30
  • Rated voltage AC UL
    700 V
  • Sell Pack Quantity
    3 EACH
  • Sell Pack Height
    2.13 in
  • Clearing I2t At Rated Voltage
    1.9 kA²s
  • Indication System Type
    Striker
  • Sell Pack Weight
    1.925 lb
  • Rated voltage AC IEC
    690 V
  • Mounting
    Bolted
  • Body/Insulating Material
    Ceramic
  • Sell Pack Length
    6.18 in
  • AC Max I.R./Breaking Capacity: I1
    200 kA
  • Ampere Rating
    80 A
  • Product Weight
    0.642 lb
  • Catalogue No.
    A070UD30KI80
  • Power Dissipation at Rated Current Value
    19 W
  • Connection/Terminal Type
    Slotted Blades
  • Sell Pack Width
    5.24 in
  • Connection/Terminal Material
    Silver-Plated Copper
  • Product Length
    5.08 in

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

C300129 Description

C300129 Mersen - Square Body High-Speed Fuse Protistor® Size 30 aR 690VAC IEC 700VAC UL 80A With Striker Slotted Blades short

Product type: Semiconductor Protection Fuses

The 690/700V Protistor® fuse-links range provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.

They have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors, IGBT and MOSFET devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.

Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.

*Multiple body sizes and terminals or blades combination

*aR Class according to IEC 60269-4 and VDE 636-23

*Very low I²t for improved semiconductor protection

*Ultra fast acting

*Current limiting

*Superior cycling capability

Related documents C300129 Specs

C300129 DS-Semiconductor-Protection-Square-Body-Fuses-Protistor-Size-30-aR-600-to-690VAC-IEC-700VAC-UL-EN (EN,PDF,1256Ko).pdf
