B300519 Mersen Fuses

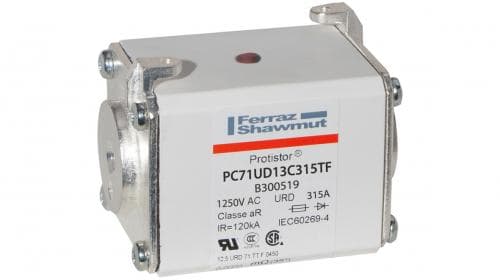

Mersen B300519 B300519 Mersen - Square Body High-Speed Fuse Protistor® Size 71 aR 1250VAC IEC 1300VAC UL 315A With Striker Flush ends metric threads
Mersen

Part#:B300519

Manufacturer:Mersen

Alt. Part#:3605340329711

Product Lifecycle:Active

Get a quick Quote!

B300519 Mersen - Square Body High-Speed Fuse Protistor® Size 71 aR 1250VAC IEC 1300VAC UL 315A With Striker Flush ends metric threads

About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the B300519 Mersen price in the box on the right side or send a quick quote.

Product Details

  • Current Rating315 A
  • Trip ClassHigh Speed
  • Fuse ClassSemiconductor
  • Terminal TypeEnd Contact with Threaded Holes
  • Weight515.29 g
  • Country Of OriginFR,MX
  • Ampere Rating
    315 A
  • Product Length
    2.91 in
  • Sell Pack Weight
    3.406 lb
  • Rated voltage AC UL
    1300 V
  • Clearing I2t At Rated Voltage
    129 kA²s
  • Connection/Terminal Type
    End Contact with Threaded Holes
  • AC Max I.R./Breaking Capacity: I1
    126 kA
  • Indication System Type
    Striker
  • Sell Pack Length
    6.69 in
  • Speed/Characteristic
    aR
  • Power Dissipation at Rated Current Value
    73 W
  • Product Weight
    1.135 lb
  • Catalogue No.
    PC71UD13C315TF
  • Mounting
    Bolted
  • Connection/Terminal Material
    Silver-Plated Brass
  • Sell Pack Height
    2.76 in
  • Melting I2t
    16 kA²s
  • Body/Insulating Material
    Ceramic
  • Sell Pack Quantity
    3 EACH
  • Rated voltage AC IEC
    1250 V
  • Product Width
    2.01 in
  • Sell Pack Width
    3.54 in
  • Fuse Size
    71
  • Indication System
    Yes
  • Product Height
    2.22 in

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

B300519 Description

B300519 Mersen - Square Body High-Speed Fuse Protistor® Size 71 aR 1250VAC IEC 1300VAC UL 315A With Striker Flush ends metric threads

Product type: Semiconductor Protection Fuses

These 1250/1300V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.

The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. Fuses are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.

All fuse-links can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.

*Multiple body sizes and terminals or blades combination

*aR Class according to IEC 60269-4 and VDE 636-23

*Very low I²t for improved semiconductor protection

*Ultra fast acting

*Current limiting

*Superior cycling capability

Related documents B300519 Specs

B300519 DS-Semiconductor-Protection-Square-Body-Fuses-Protistor-Size-71-aR-750-to250VAC-IEC300VAC-UL-EN (EN,PDF,1548Ko).pdf
