B300473 Mersen Fuses
Part#:B300473
Manufacturer:Mersen
Alt. Part#:3605340329025
Product Lifecycle:Active
Get a quick Quote!

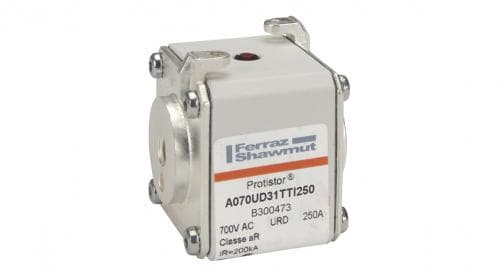

B300473 Mersen - Square Body High-Speed Fuse Protistor® Size 31 aR 690VAC IEC 700VAC UL 250A With Striker Flush ends UNC threads
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the B300473 Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating250 A
- Trip ClassHigh Speed
- Fuse ClassSemiconductor
- Terminal TypeEnd Contact with Threaded Holes
- Weight385.446 g
- Country Of OriginFR
- Power Dissipation at Rated Current Value 52 W
- Body/Insulating Material Ceramic
- Sell Pack Height 2.56 in
- Mounting Bolted
- Speed/Characteristic aR
- Fuse Size 31
- Connection/Terminal Type End Contact with Threaded Holes
- Sell Pack Length 6.61 in
- Rated voltage AC UL 700 V
- AC Max I.R./Breaking Capacity: I1 200 kA
- Sell Pack Quantity 3 EACH
- Catalogue No. A070UD31TTI250
- Ampere Rating 250 A
- Product Height 2.22 in
- Clearing I2t At Rated Voltage 28000 A²s
- Rated voltage AC IEC 690 V
- Product Weight 0.849 lb
- Sell Pack Width 3.35 in
- Melting I2t 4700 A²s
- Connection/Terminal Material Silver-Plated Brass
- Product Length 1.99 in
- Indication System Yes
- Indication System Type Striker
- Sell Pack Weight 2.546 lb
- Product Width 2.01 in
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
B300473 Description
B300473 Mersen - Square Body High-Speed Fuse Protistor® Size 31 aR 690VAC IEC 700VAC UL 250A With Striker Flush ends UNC threads
Product type: Semiconductor Protection Fuses
The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.
They have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.
Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
*Multiple body sizes and terminals or blades combination
*aR Class according to IEC 60269-4 and VDE 636-23
*Very low I²t for improved semiconductor protection
*Ultra fast acting
*Current limiting
*Superior cycling capability
Related documents B300473 Specs
