A331154 Mersen Fuse Holders
Part#:A331154
Manufacturer:Mersen
Alt. Part#:0782001310967
Product Lifecycle:Active
Get a quick Quote!

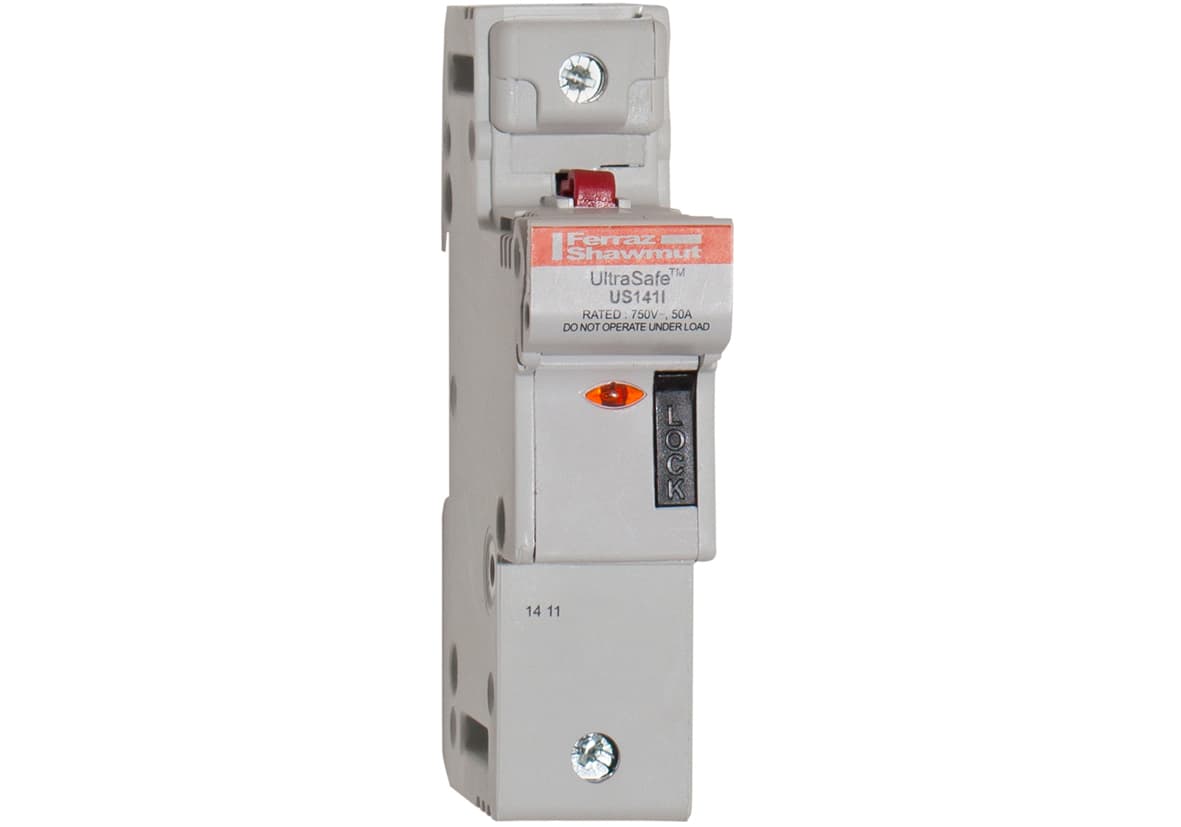

A331154 Mersen - Fuse Holder UltraSafe™ 800VAC 1000VDC UL Fuse size 14x51 1-Pole Visual Indicator Pressure Plate IP20
About the manufacturer: Mersen is one of the manufacturers that offers Fuse Holders that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the A331154 Mersen price in the box on the right side or send a quick quote.
Product Details
- Number of Poles1 Pole
- Current Rating50 A
- Voltage800 VAC
- Weight143.464 g
- ROHS Compliant Yes
- Frequency 50...60 Hz
- Fuse Size 14x51
- Rated Impulse Withstand Voltage 8
- Product Width 1.04 in
- Short Circuit Current Rating (SCCR) 100 kA
- Wiring range #2 - #14
- Conventional Free Air thermal Current With Fuse-Links Ith 50 A
- Product Height 4.36 in
- Sell Pack Width 4.72 in
- Rated voltage AC IEC 750 V
- Connection/Terminal Type Clip
- Max Fuse Rating 50 A
- Comments Wiring tool : PZ2 or flat 5.5x1mm screw drivers recommended (max. diameter 6mm)
- Product Length 3.01 in
- Catalogue No. US141I
- Rated voltage DC UL 1000 V
- Fuse Installation Method Clip-in
- Installation Mounting DIN rail acc. EN 60715
- Product Weight 0.316 lb
- Rated voltage DC IEC 750 V
- Design Details US14 single pole
- Body/Insulating Material Polyamide
- Sell Pack Quantity 6 EACH
- Ampere Rating 50
- Indication System Type Visual Indicator
- Indication System Yes
- Sell Pack Weight 1.896 lb
- Rated voltage AC UL 800 V
- Connection/Terminal Material Tin-Plated Copper
- Torque Rating 30.98 lb-in
- Sell Pack Length 7.24 in
- Number of Poles 1-Pole
- Rated Insulation Voltage 690 V
- Sell Pack Height 3.35 in
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
A331154 Description
A331154 Mersen - Fuse Holder UltraSafe™ 800VAC 1000VDC UL Fuse size 14x51 1-Pole Visual Indicator Pressure Plate IP20 | The innovative and comprehensive UltraSafe™ range of Mersen fuse-holders.
Modular fuse-holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in UL + IEC version.
Multi-pole units can also be field assembled by ordering pin-ties assembly kit. In this size, the range also offers the possibility to use microswitches (supplied with the holders or ordered separately) to allow remote indication.
UltraSafe™ range is made of tough and durable thermoplastic or thermoset material. | Features: *Finger safe
*Degree of protection: IP20
*Optional visual blown fuse indicator & microswitch
*DIN rail mounting
*Modular design
*Lockable
*Multi-pole assembly kit available
*Sealable in closed and open position
*Plastic material UL94V2 mini
*Flame retardant materials with glow wire flammability index to 960°C | Application: *All circuits up to 750VAC for protection of motors,
*transformers, low voltage distribution, control circuits
*Non-load operation
Related documents A331154 Specs
