A331062 Mersen Fuse Holders

Mersen A331062 A331062 Mersen - Fuse Holder Modulostar® Size 14x51 IEC 690VAC 690VDC 2-Pole With 2x Microswitch IP20
Mersen

Part#:A331062

Manufacturer:Mersen

Alt. Part#:8430399000169

Product Lifecycle:Active

Get a quick Quote!

A331062 Mersen - Fuse Holder Modulostar® Size 14x51 IEC 690VAC 690VDC 2-Pole With 2x Microswitch IP20

About the manufacturer: Mersen is one of the manufacturers that offers Fuse Holders that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the A331062 Mersen price in the box on the right side or send a quick quote.

Product Details

  • Number of Poles2 Pole
  • Current Rating50 A
  • Weight285.112 g
  • ROHS Compliant
    Yes
  • Rated Impulse Withstand Voltage
    8
  • Sell Pack Weight
    1.885 lb
  • Design Details
    CMS14 double pole, two auxiliary microswitches
  • Catalogue No.
    CMS142M
  • Product Width
    2.09 in
  • Rated voltage DC IEC
    690 V
  • Product Weight
    0.628 lb
  • Ampere Rating
    50 A
  • Indication System
    Yes
  • Installation Mounting
    DIN rail acc. EN 60715
  • Sell Pack Quantity
    3 EACH
  • Rated Insulation Voltage
    690 V
  • Sell Pack Length
    6.46 in
  • Fuse Size
    14x51
  • Torque Rating
    30.98 lb-in
  • Product Length
    3.01 in
  • Short Circuit Current Rating (SCCR)
    100 kA
  • Number of Poles
    2-Pole
  • Conventional Free Air thermal Current With Fuse-Links Ith
    50 A
  • Comments
    Wiring tool : PZ2 or flat 5.5x1mm screw drivers recommended (max. diameter 6mm)
  • Sell Pack Height
    3.11 in
  • Rated voltage AC IEC
    690 V
  • Indication System Type
    Microswitch
  • Product Height
    4.36 in
  • Sell Pack Width
    4.45 in

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

A331062 Description

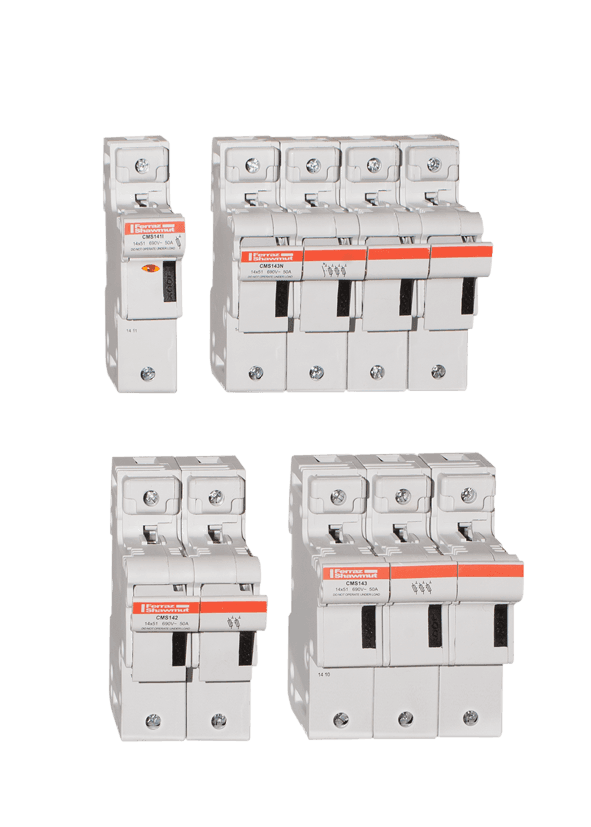

A331062 Mersen - Fuse Holder Modulostar® Size 14x51 IEC 690VAC 690VDC 2-Pole With 2x Microswitch IP20 | The innovative and comprehensive Modulostar® range of Mersen fuse-holders. Modular fuse-holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in IEC version or IEC + UL version. Multi-pole units can also be field assembled by ordering pin-ties assembly kit. In size 14 or 22, the range also offers the possibility to use microswitches (supplied with the holders or ordered separately) to allow remote indication. Modulostar® range is made of tough and durable thermoplastic or thermoset material. | Features: *Finger safe

*Degree of protection: IP20

*Optional visual blown fuse indicator

*DIN rail mounting

*Modular design

*Lockable

*Multi-pole assembly kit available

*Sealable in closed and open position

*Plastic material UL94V2 mini

*Flame retardant materials with glow wire flammability index to 960°C

*Shock and vibration tested for marine and railway applications | Application: *All circuits up to 690V for protection of motors, transformers,

*low voltage distribution, control circuits, drive protection

*Non-load operation

Related documents A331062 Specs

A331062 CF9A577212D6415684873EFDD1E51F48-1en.pdf
