8058726 Festo Electronic Components
Part#:8058726
Manufacturer:Festo
Alt. Part#:SBSI-Q-AF-R3B-F6-NR
Product Lifecycle:Active
Get a quick Quote!

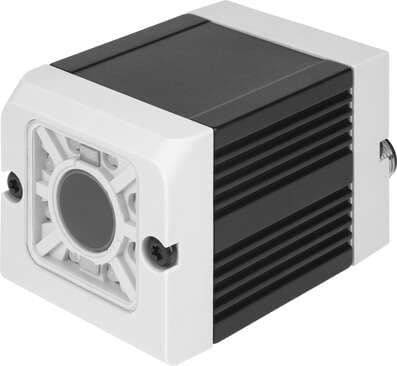

object sensor SBSI-Q-AF-R3B-F6-NR Monochrome object sensor with integrated lens (f : 6 mm), infrared LED lighting and Ethernet interface, RS 232 and PROFINET for various tasks such as checking for presence and quality inspection, expanded function. Visi
About the manufacturer: Festo is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 8058726 Festo price in the box on the right side or send a quick quote.
Product Details
- Cover material ABS-reinforced
- Wavelength 880 nm
- Type code SBSI
- Working distance 6 mm - infinite
- CE marking (see declaration of conformity) As per EU EMC directive
- Focal length 6 mm
- Sensor type Monochrome
- Max. no. of inspection programs/jobs 255
- Information on Ethernet, connection technology Socket 4-pin
- Number of digital inputs 2
- Switching output PNP/NPN switchable
- Nominal operating voltage DC 24 V
- Permissible voltage fluctuations -25 %/+10 %
- Note on degree of protection With lens protection tube
- Vibration resistance as per EN 60068-2-6
- Vision sensor version Object sensor
- Type of light Infrared LED
- Max. number of test criteria/detectors 255
- Ethernet, data transmission speed 100 Mbit/s
- Number of selectable digital inputs/outputs 4
- Current consumption with load-free outputs 200 mA
- Dimensions W x L x H 45 mm x 45 mm x 76.7 mm
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- KC characters KC EMC
- Field of view min. 5 x 4 mm
- Sensor resolution 736 x 480 pixels (WideVGA)
- Ethernet, supported protocols Ethernet/IP TCP/IP
- Switching level Signal 0: <= 3 V Signal 1: >= UB - 1 V
- Max. current consumption 550 mA
- Storage temperature -20 °C ... 60 °C
- Certification RCM compliance mark c UL us - Listed (OL)
- Focus setting With adjusting screw
- Frame rate (full image) 50 fps
- Function of detectors/characteristics Position tracking via contour BLOB
- Serial interface, connection technology Plug 5-pin
- Number of digital outputs 2
- Switching input PNP/NPN switchable
- Short-circuit protection For all electrical connections
- Ambient temperature 0 °C ... 50 °C
- Housing material Wrought aluminum alloy, anodized
- Note on materials RoHS-compliant
- Lens attachment Integrated optics
- Lighting type Integrated
- Typical cycle time Position tracking: 30 ms BLOB: 30 ms
- Serial interface, type RS 232 / RS 422
- Electrical connection 12-pin Plug
- Max. output current 50 mA
- Degree of protection IP67
- Product weight 160 g
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
