8058728 Festo Pneumatic Components
Part#:8058728
Manufacturer:Festo
Alt. Part#:SBSC-Q-AF-R3B
Product Lifecycle:Active
Get a quick Quote!

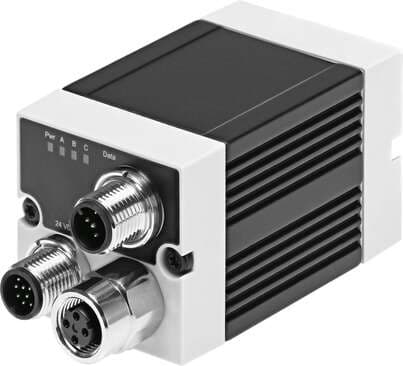

object sensor SBSC-Q-AF-R3B Monochrome object sensor with C-mount thread, Ethernet interface, RS 232 and PROFINET for various tasks such as checking for presence and quality inspection, expanded function. Vision sensor version: Object sensor, CE mark (see
About the manufacturer: Festo is one of the manufacturers that offers Pneumatic Components that you can order at marketplace.quotebeam.com. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 8058728 Festo price in the box on the right side or send a quick quote.
Product Details
- Type code SBSC
- Certification RCM compliance mark c UL us - Listed (OL)
- Frame rate (full image) 50 fps
- Max. no. of inspection programs/jobs 255
- Ethernet, supported protocols Ethernet/IP TCP/IP
- Number of digital outputs 2
- Switching input PNP/NPN switchable
- Short-circuit protection For all electrical connections
- Ambient temperature 0 °C ... 50 °C
- Dimensions W x L x H 45 mm x 45 mm x 76.7 mm
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- KC characters KC EMC
- Field of view Depending on lens selected
- Max. number of test criteria/detectors 255
- Serial interface, connection technology Plug 5-pin
- Switching output PNP/NPN switchable
- Current consumption with load-free outputs 200 mA
- Storage temperature -20 °C ... 60 °C
- Housing material Wrought aluminum alloy, anodized
- CE marking (see declaration of conformity) As per EU EMC directive
- Lens attachment CS mount
- Typical cycle time Position tracking: 30 ms BLOB: 30 ms
- Serial interface, type RS 232 / RS 422
- Number of digital inputs 2
- Max. output current 50 mA
- Degree of protection IP67
- Cover material ABS-reinforced
- Sensor resolution 736 x 480 pixels (WideVGA)
- Information on Ethernet, connection technology Socket 4-pin
- Number of selectable digital inputs/outputs 4
- Max. current consumption 550 mA
- Product weight 160 g
- Vision sensor version Object sensor
- Sensor type Monochrome
- Function of detectors/characteristics Position tracking via contour BLOB
- Ethernet, data transmission speed 100 Mbit/s
- Electrical connection 12-pin Plug
- Switching level Signal 0: <= 3 V Signal 1: >= UB - 1 V
- Nominal operating voltage DC 24 V
- Permissible voltage fluctuations -25 %/+10 %
- Note on degree of protection With lens protection tube
- Vibration resistance as per EN 60068-2-6
- Note on materials RoHS-compliant
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 8058728 Specs
