533347 Festo Directional Control Valves
Part#:533347
Manufacturer:Festo
Alt. Part#:VMPA1-M1H-K-PI
Product Lifecycle:Active
Get a quick Quote!

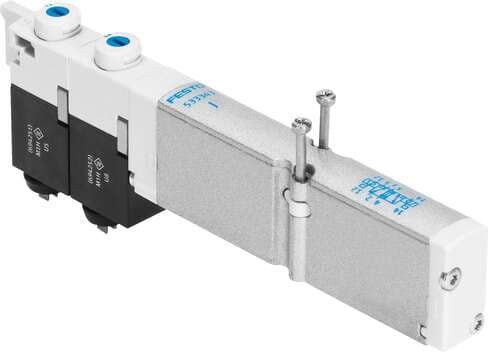

solenoid valve VMPA1-M1H-K-PI For valve terminal MPA-S. Valve function: 2x3/2 closed, monostable, Type of actuation: electrical, Valve size: 10 mm, Standard nominal flow rate: 230 l/min, Operating pressure: 3 - 10 bar
About the manufacturer: Festo is one of the manufacturers that offers Directional Control Valves that you can order at marketplace.quotebeam.com. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 533347 Festo price in the box on the right side or send a quick quote.
Product Details
- Operating pressure 3 bar ... 10 bar
- Design Piston gate valve
- Sealing principle Soft
- Type of control Pilot-controlled
- Switching time off 20 ms
- Standard nominal flow rate with QS-6 230 l/min
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Temperature of medium -5 °C ... 50 °C
- Housing material Die-cast aluminum
- Relative air humidity Max. 90 % at 40 °C
- Standard nominal flow rate 230 l/min
- Certification c UL us - Recognized (OL)
- Symbol 00991809
- Max. negative test pulse on 1 signal 200 µs
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Product weight 56 g
- Valve function 2x3/2, closed, monostable
- Pilot pressure MPa 0.3 MPa ... 0.8 MPa
- Valve size 10 mm
- Operating voltage 24V DC
- Flow direction Non-reversible
- Suitability for vacuum no
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Ambient temperature -5 °C ... 50 °C
- Note on materials RoHS-compliant
- Lap Overlap
- Actuation type Electrical
- Reset method Pneumatic spring
- Type code VMPA1
- Manual override Detenting Non-detenting
- Signal status display yes
- On switching time 10 ms
- Permissible voltage fluctuations +/- 25 %
- Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Storage temperature -20 °C ... 40 °C
- Type of mounting With through-hole
- Seals material NBR
- Degree of protection IP65 as per IEC 60529
- Mounting position Any
- Pilot pressure 3 bar ... 8 bar
- Max. positive test pulse with 0 signal 400 µs
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Max. tightening torque for valve mounting 0.25 Nm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 533347 Specs
