533342 Festo Directional Control Valves
Part#:533342
Manufacturer:Festo
Alt. Part#:VMPA1-M1H-M-PI
Product Lifecycle:Active
Get a quick Quote!

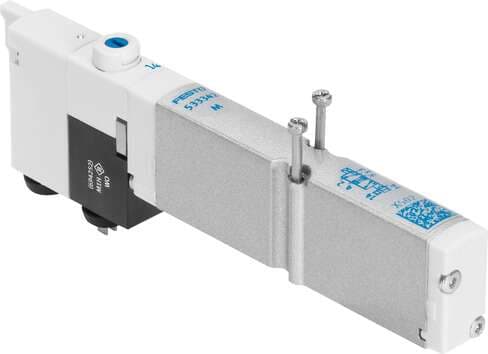

solenoid valve VMPA1-M1H-M-PI For valve terminal MPA-S. Valve function: 5/2 monostable, Type of actuation: electrical, Valve size: 10 mm, Standard nominal flow rate: 360 l/min, Operating pressure: -0,9 - 10 bar
About the manufacturer: Festo is one of the manufacturers that offers Directional Control Valves that you can order at marketplace.quotebeam.com. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 533342 Festo price in the box on the right side or send a quick quote.
Product Details
- Relative air humidity Max. 90 % at 40 °C
- Valve size 10 mm
- Actuation type Electrical
- Degree of protection IP65 as per IEC 60529
- Flow direction Reversible
- On switching time 10 ms
- Operating pressure -0.9 bar ... 10 bar
- Standard nominal flow rate 360 l/min
- Certification c UL us - Recognized (OL)
- Manual override Detenting Non-detenting
- Symbol 00991066
- Max. negative test pulse on 1 signal 200 µs
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Product weight 49 g
- Valve function 5/2, monostable
- Pilot pressure MPa 0.3 MPa ... 0.8 MPa
- Design Piston gate valve
- Sealing principle Soft
- Mounting position Any
- Pilot pressure 3 bar ... 8 bar
- Suitability for vacuum yes
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Max. tightening torque for valve mounting 0.25 Nm
- Temperature of medium -5 °C ... 50 °C
- Seals material NBR
- Lap Overlap
- Reset method Pneumatic spring
- Type of control Pilot-controlled
- Signal status display yes
- Standard nominal flow rate with QS-6 360 l/min
- Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Housing material Die-cast aluminum
- Operating voltage 24V DC
- Type code VMPA1
- Switching time off 20 ms
- Permissible voltage fluctuations +/- 25 %
- Max. positive test pulse with 0 signal 400 µs
- Ambient temperature -5 °C ... 50 °C
- Type of mounting With through-hole
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Storage temperature -20 °C ... 40 °C
- Note on materials RoHS-compliant
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
