SSA-EB1PLXR-12ED1Q8 Banner Emergency Stop Push Buttons
Part#:SSA-EB1PLXR-12ED1Q8
Manufacturer:Banner
Alt. Part#:29988
Product Lifecycle:Active
In-stock parts: 4
Jun 19, 2025
Emergency Stop: Flush Mount 40 mm Push Button; Environ. Rating: IP65; Lighted; Color: Red Solid/Flashing; 2 N.C. Safety Contacts; 1 N.O. aux. Contacts; 8-pin M12 QD
About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SSA-EB1PLXR-12ED1Q8 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight426.37648 g
- Country Of OriginJP
- Device Type Push Button
- Actuation Twist/Pull-to-Release
- Actuator/Button Material Thermoplastic
- Contact Rating 2 A @ 24 V dc
- Max Operating Temperature ( °C) 55
- Primary Housing Material Polycarbonate
- Feature: Lockable No
- Illumination Type Base
- Contact Quantity 2 NC, 1 NO
- Armed Color (Solid) OFF
- Button Shroud No
- Dimensions (HxWxD mm ) 103 x 110 x 81
- IP Rating IP65
- Mounting Thread/Style Flat
- Button Diameter (mm) 40
- Actuated Color Red - Flash
- Feature: Illuminated Yes
- Stop Signal Color ( Solid) Red
- Connection Type M12 (Euro)
- In-Series Diagnostics No
- Housing Style Base
- Min Operating Temperature ( °C) -25
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SSA-EB1PLXR-12ED1Q8 Description

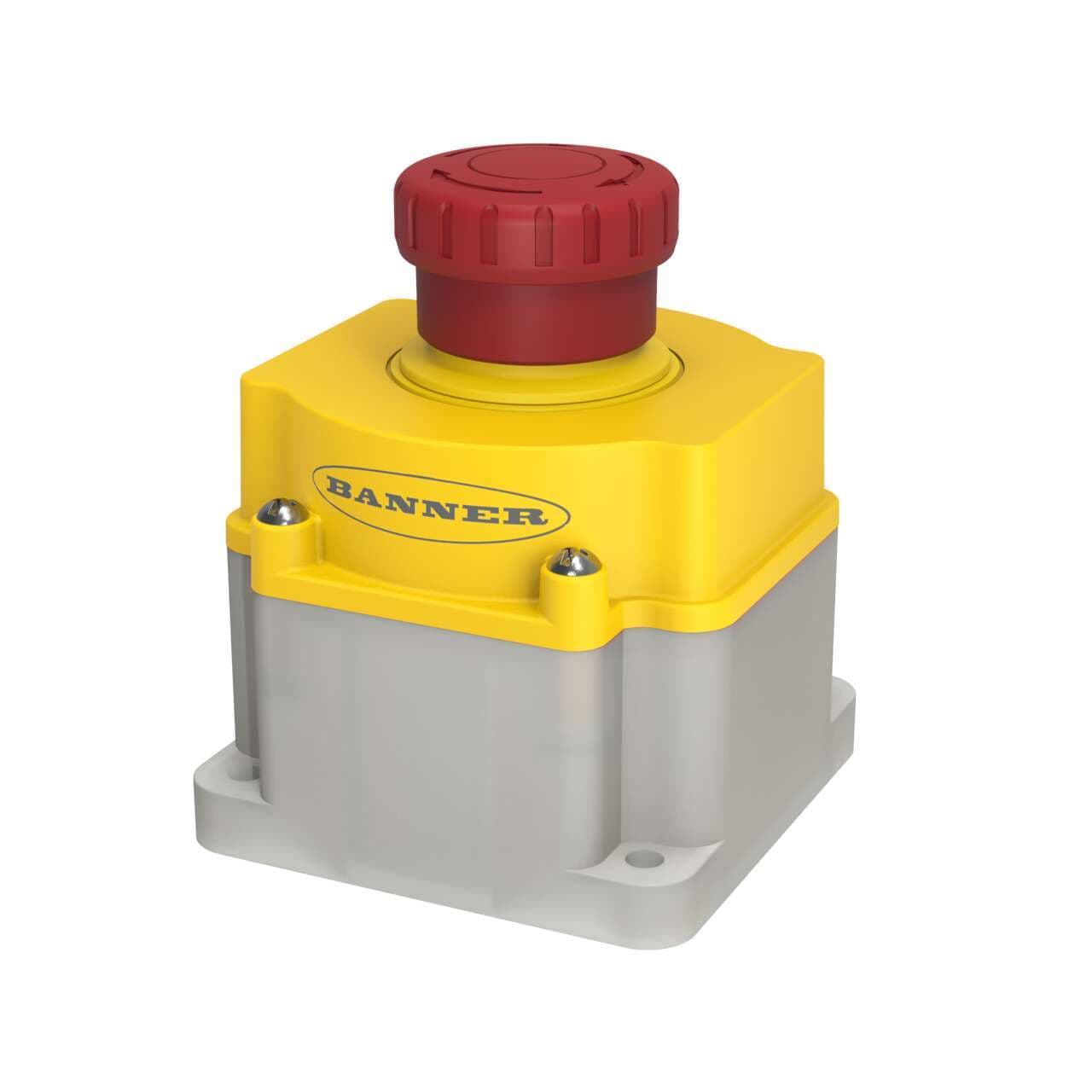

Banner Engineering SSA-EB1PLXR-12ED1Q8 is an enclosed illuminated emergency STOP (E-Stop) pushbutton featuring a flashing red illuminated base when activated. It is designed with a polycarbonate housing and a 40mm mushroom head for easy operation. This push-button is pre-equipped with an 8-pin M12 Euro-style QD connector for straightforward installation. It comes in a yellow housing with a red actuator, ensuring high visibility. The device includes 1NO+2NC contacts for connectivity, operates on a 24Vdc supply voltage, and can be mounted on a square base using 4 screws. It is designed to operate in ambient air temperatures ranging from -25°C to +60°C and offers an IP65 degree of protection against dust and water ingress. The operating mode is push-to-stop and stay-put (maintained/latched) with a twist-to-release mechanism. Additionally, it features 1 Normally Open (NO) auxiliary contact and 2 Normally Closed (NC) auxiliary contacts for enhanced functionality.
Related documents SSA-EB1PLXR-12ED1Q8 Specs
This item can ship within 24h!
1-year warranty
$258.50
Stock:
4
Select Qty:
$258.50
$258.50 each
By purchasing this item, you agree to the Terms & Conditions
Quotebeam is NOT an authorized distributor of Banner
Shipping and Delivery Worldwide
calculate costs and time
Secure Payment Processing
with money back guarantee
1 year warranty
on all parts
Responsive Customer Support
we're here to help!
Need more details?
Feel free to chat with us or check our FAQ
Banner Disclaimer:
The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Banner Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Banner, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
