SSA-EB1PLGR-0DED1Q8 Banner Emergency Stop Push Buttons
Part#:SSA-EB1PLGR-0DED1Q8
Manufacturer:Banner
Alt. Part#:808881
Product Lifecycle:Active
In-stock parts: 3
Jun 19, 2025
Emergency Stop with ISD: Flush Mount 40 mm Push Button; Illuminated Color: Green/Red Flashing; 2 N.C. OSSD Safety Contacts, IP65; 8-pin M12 QD
About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SSA-EB1PLGR-0DED1Q8 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight299.37072 g
- Country Of OriginJP
- Primary Housing Material Polycarbonate
- Contact Rating 24 V dc @ 0.1 A each
- Button Shroud No
- Actuation Twist-to-Release
- Actuator/Button Material Thermoplastic
- Illumination Type Base
- In-Series Diagnostics Yes
- IP Rating IP65
- Feature: Lockable No
- Armed Color (Solid) Green
- Feature: Illuminated Yes
- Max Operating Temperature ( °C) 50
- Connection Type M12 (Euro)
- Mounting Thread/Style Flat
- Actuated Color Red - Flash
- Contact Quantity 2 NC OSSD
- Button Diameter (mm) 40
- Device Type Push Button
- Min Operating Temperature ( °C) -25
- Housing Style Base
- Dimensions (HxWxD mm ) 103 x 110 x 81
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SSA-EB1PLGR-0DED1Q8 Description

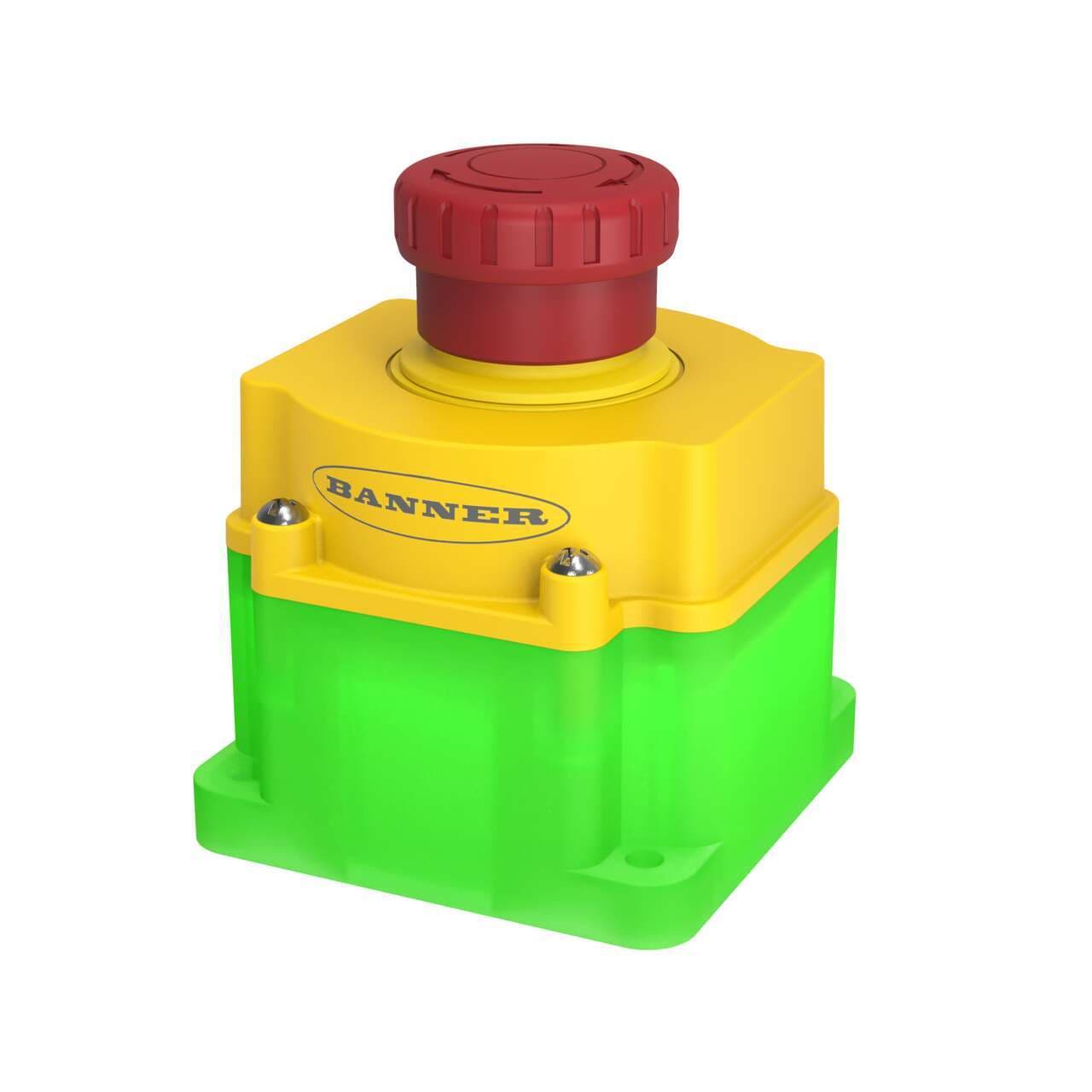

Banner Engineering SSA-EB1PLGR-0DED1Q8 is an enclosed illuminated emergency STOP push-button featuring a solid green (ARMED) / flashing red (button pushed ON) illuminated base for clear status indication. Constructed with a polycarbonate (PC) base, this E-Stop push-button is designed with a 40mm mushroom head and a yellow housing with a red actuator. It is pre-equipped with an 8-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The device offers 2NC contacts for safety functions and operates with a 24Vdc supply voltage. It can be mounted using a square base with 4 screws and is suitable for operation in ambient air temperatures ranging from -25°C to +50°C. With an IP65 degree of protection, it ensures durability in various environmental conditions. The operating mode is push-to-stop stay-put (maintained / latched) with a twist-to-release mechanism, and it includes 0 Normally Open (NO) auxiliary contacts and 2 Normally Closed (NC) auxiliary contacts for comprehensive control.
Related documents SSA-EB1PLGR-0DED1Q8 Specs
This item can ship within 24h!
1-year warranty
$288.36
Stock:
3
Select Qty:
$288.36
$288.36 each
