SME312DQD Banner Proximity Sensors
Part#:SME312DQD
Manufacturer:Banner
Alt. Part#:53708
Product Lifecycle:Active
Get a quick Quote!

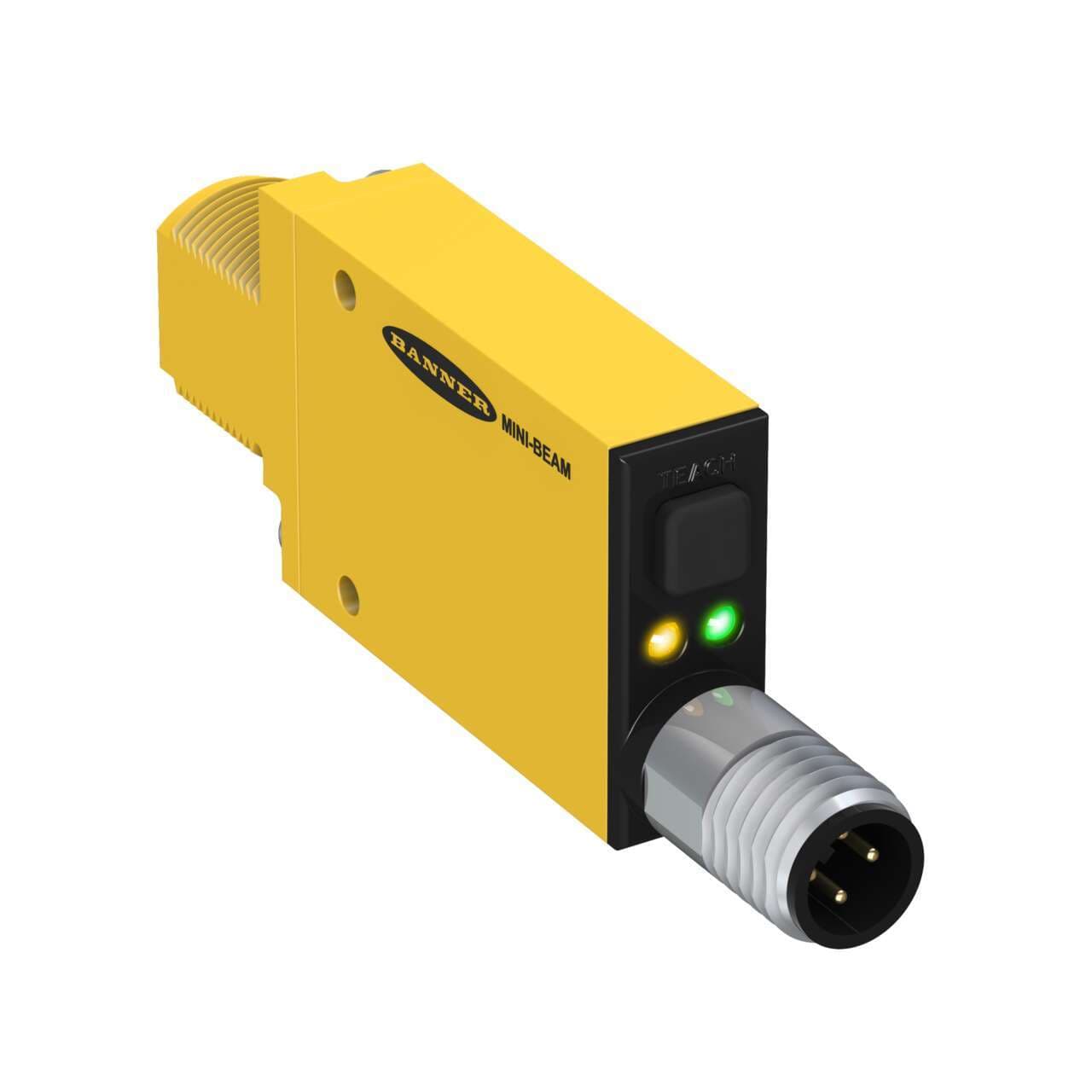

MINI-BEAM EXPERT: Diffuse; Range: 380 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SME312DQD Banner price in the box on the right side or send a quick quote.
Product Details
- Weight99.79024 g
- Country Of OriginUS
- Wavelength 880 nm
- Response time 0.5ms / 0.0005 s
- Material thermoplastic housing Acrylic lns.
- Primary brand Banner Engineering
- Main function Sensor (Photo-electric)
- Light Color Infrared (IR)
- Operating mode Light-ON Dark-ON
- Product series / family name MINI-BEAM series
- Functions Photo-electric sensor green / red LED (power ON) amber LED (output state) TEACH mode
- Shape Rectangular
- Mounting mode Threaded mount
- Degree of protection IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
- Order code / Manufacturer SKU 53708
- Sub-range name SME312 Expert
- Design diffuse mode
- Thread size M18
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Compliant with standard(s) cURus CE
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Sensing distance 380mm
- Connection type Pre-equipped with 5-pin Euro-style M12 connector
- Ambient air temperature for operation -20...+70 °C
- Sensing Mode (Detailed) Diffuse
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- Feature: Chemical Resistant No
- Sensing Mode (General) Proximity
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- Barrel Diameter (mm) 18
- Adjustments Teach Button
- IO Link No
- Min Op. Temp. (°C) -20
- Sensing Beam Infrared LED
- Number of Pins 5
- Feature: Audible No
- Quick Disconnect Type M12 (Euro)
- Max Sensing Distance (mm) 380
- Repeatability (µs) 100
- Feature: Timing (Hold/Delay) No
- Housing Style Rectangular w/M18 Mount
- Output response time (ms) 0.5
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Hazardous Area No
- Input/Output Discrete
- Max Op. Temp. (°C) 70
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
- Feature: Encapsulated No
- Power DC
- Connection Integral QD
- Delay at Power-up (ms) 1000
- Opposed Mode Emitter/Receiver N/A
- Outputs Bipolar (NPN & PNP)
- Special Feature: Remote Teach Yes
- Indicator LEDs
- Primary Housing Material Thermoplastic
- Operation Light/Dark Operate
- IP Rating IP67
- DeviceNet No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SME312DQD Description
Banner Engineering SME312DQD is a photo-electric sensor from the SME312 Expert series, designed with a diffuse mode TEACH mode. This sensor features a thermoplastic housing and an acrylic lens. It comes pre-equipped with a 5-pin Euro-style M12 connector for connectivity. The SME312DQD operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It is designed for M18 threaded mount installation and can operate in ambient air temperatures ranging from -20 to +70°C. This sensor offers a high degree of protection, rated at IP67 and compliant with multiple NEMA standards, including 1, 2, 3, 3S, 4, 4X, 6, 12, and 13. The SME312DQD has a rectangular shape and includes 1 x digital output (PNP/NPN transistor). It features a sensing distance of 380mm and uses infrared (IR) light with a wavelength of 880 nm. The response time of the sensor is 0.5ms / 0.0005 s, and it supports both Light-ON and Dark-ON operating modes.
Related documents SME312DQD Specs
