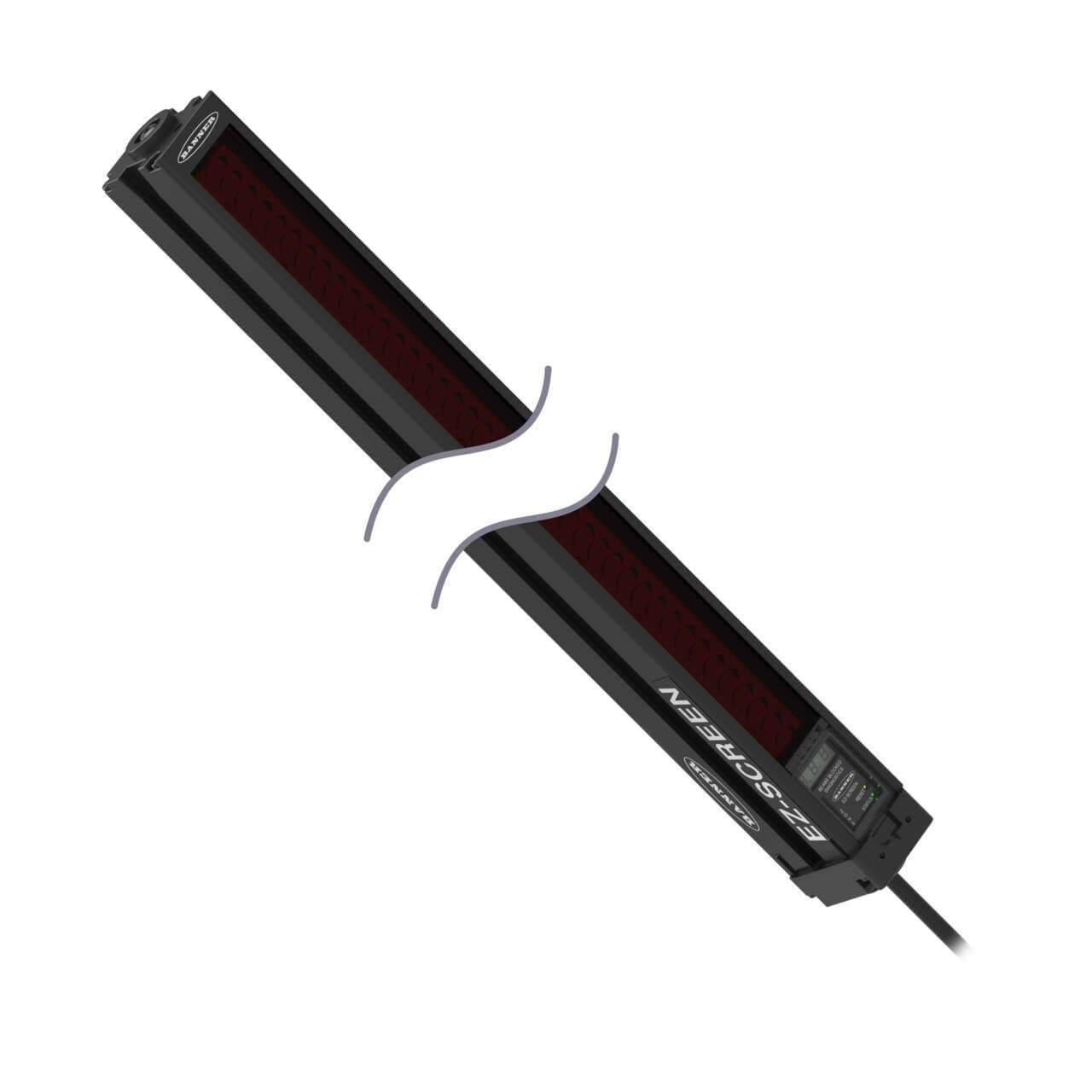

SLSCR30-1800P8 Banner Safety Light Curtains
Part#:SLSCR30-1800P8
Manufacturer:Banner
Alt. Part#:73947
Product Lifecycle:Active
Get a quick Quote!
EZ-SCREEN Cascade Receiver; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 1800 mm (70.9 in); Housing Length: 1869 mm (73.6 in); Connection: 8-pin M12 Pigtail Connector
About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SLSCR30-1800P8 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight5805.9776 g
- Country Of OriginMX
- Fixed Blanking Yes
- Recovery Time 25-152 / 81-495
- Fault Output No
- Supply Current 275 mA max.
- Connector Type M12 Pigtail (Yellow)
- Dimensions WxD (mm) 36 x 45.2
- Resolution (mm) 30
- Overall Length (mm) 1869
- Primary Housing Material Aluminum
- Housing Finish Yellow Polyester
- Vibration 10-55 Hz at 0.35 mm
- Scan Code Selectable
- Safety Level Type 4
- Operating Voltage 24 V dc +/- 15%
- Response Time 32
- PL Rating Ple
- Short Protection Yes
- Defined Area Height (mm) 1800
- Operating Temperature 0 to +55 deg. C; RH 95%
- Electrical Safety Class III
- OSSD Rating 24 V dc at 0.5 A each
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Number of Pins (Receiver/Emitter) 8
- Operating Distance (m) 0.1 - 18
- SIL Rating SIL3; CL3
- low-profile No
- External Monitoring Device 1 or 2 Channel
- IP Rating IP65
- Reduced Resolution Yes
- System Type Receiver
- Feature: Cascade Yes
- Trip/Latch Output Selectable
- Housing Material Aluminum; Zinc; Acrylic
- Feature: ESD Safe No
- Feature: Integral Muting No
- Shock 10g at 16ms (6000 cycles)
- Feature: End-to-End Sensing No
- Auxiliary Output Yes
- Test Input No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SLSCR30-1800P8 Description
Banner Engineering SLSCR30-1800P8 is a safety light curtain designed for hand detection with a resolution of 30mm and a protective height of 1800mm. Part of the SLS series, this cascadable design features an aluminium housing with an acrylic lens and die-cast zinc end caps. It is pre-wired with a 300mm pigtail that terminates with an 8-pin Euro-style M12 connector. The unit operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. It offers a degree of protection rated at IP65. The dimensions include a net width of 36mm, a net height of 1869mm, and a net depth of 46mm. The SLSCR30-1800P8 has a sensing distance ranging from 10cm to 18m and features 30mm beam spacing/pitch. It is equipped with two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary output, one digital input (10Vdc-30Vdc) for EDM input, and one digital input (10Vdc-30Vdc) for RESET input. The response time is 32ms / 0.032 s. The housing is colored yellow.
Related documents SLSCR30-1800P8 Specs
