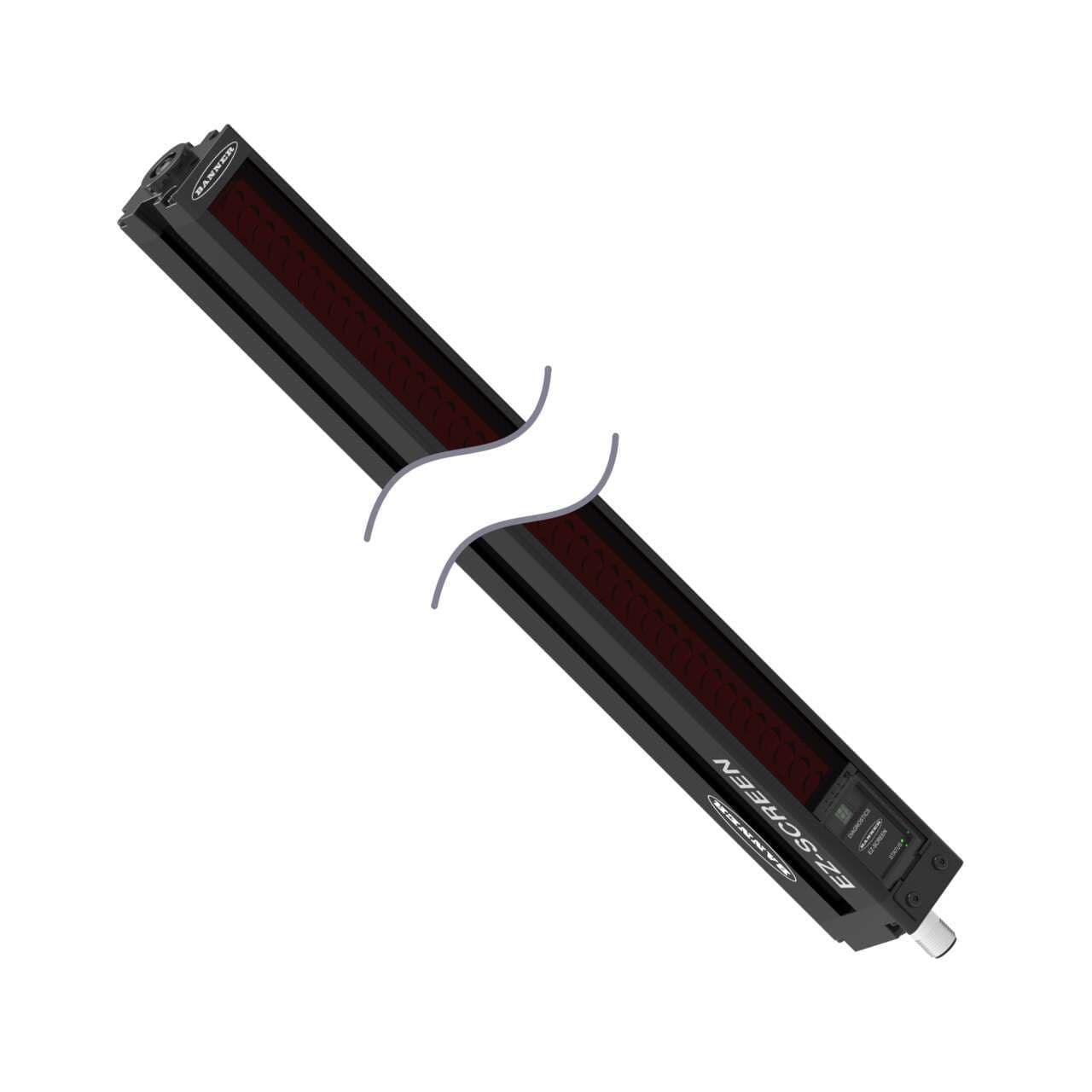

SLSCE14-300Q8 Banner Safety Light Curtains
Part#:SLSCE14-300Q8
Manufacturer:Banner
Alt. Part#:72399
Product Lifecycle:Active
Get a quick Quote!
EZ-SCREEN Cascade Emitter; Resolution: 14 mm; Range: 6 m (20 ft); Defined Area: 300 mm (11.8 in); Housing Length: 372 mm (14.6 in); Connection: 8-pin M12 Connector; No test Input
About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SLSCE14-300Q8 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight1691.89816 g
- Country Of OriginMX
- Number of Pins (Receiver/Emitter) 8
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Electrical Safety Class III
- OSSD Rating N/A
- Safety Level Type 4
- Housing Finish Yellow Polyester
- Resolution (mm) 14
- Vibration 10-55 Hz at 0.35 mm
- Feature: ESD Safe No
- Connector Type M12
- Operating Distance (m) 0.1 - 6
- SIL Rating SIL3; CL3
- Trip/Latch Output N/A
- Overall Length (mm) 372
- Recovery Time 33-220 / 109-800
- Auxiliary Output No
- Feature: End-to-End Sensing No
- Defined Area Height (mm) 300
- Operating Temperature 0 to +55 deg. C; RH 95%
- Short Protection Yes
- Supply Current 100 mA max.
- Primary Housing Material Aluminum
- IP Rating IP65
- Response Time 15
- Housing Material Aluminum; Zinc; Acrylic
- Feature: Integral Muting No
- System Type Emitter
- External Monitoring Device No
- PL Rating Ple
- Scan Code Selectable
- Feature: Cascade Yes
- Dimensions WxD (mm) 36 x 45.2
- Operating Voltage 24 V dc +/- 15%
- Shock 10g at 16ms (6000 cycles)
- Test Input No
- low-profile No
- Fixed Blanking No
- Reduced Resolution No
- Fault Output No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SLSCE14-300Q8 Description
Banner Engineering SLSCE14-300Q8 is a safety light curtain from the SLS series 14-30mm safety light curtains, designed for finger detection with a resolution of 14mm. This cascadable unit features an aluminium housing with an acrylic lens and die-cast zinc end caps, ensuring durability. It is pre-equipped with an 8-pin Euro-style M12 connector for easy integration. The protective height of the device is 300mm, housed in a yellow casing, and it operates on a 24Vdc supply voltage. It is designed to function within an ambient air temperature range of 0 to +55°C and offers a degree of protection rated at IP65. The net dimensions are 36mm in width, 372mm in height, and 46mm in depth. The SLSCE14-300Q8 provides a sensing distance from 10cm up to 6m and utilizes infrared (IR) light with a wavelength of 850 nm for detection. It features a 14mm beam spacing/pitch and includes 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) with a response time of 15ms / 0.015 s.
