SLLCE23-910-S Banner Safety Light Curtains
Part#:SLLCE23-910-S
Manufacturer:Banner
Alt. Part#:809019
Product Lifecycle:Active
Get a quick Quote!
EZ-SCREEN LS Cascade, Emitter; Resolution: 23 mm; Range: 12 m (40 ft); Defined Area: 910 mm (35.8 in); Housing: Black; Connection: Removable Disconnect (RD); Mounting Hardware and Cable/M12 Pigtail Ordered Separately
About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SLLCE23-910-S Banner price in the box on the right side or send a quick quote.
Product Details
- Weight2109.2028 g
- Country Of OriginMX
- Connector Type Removable Disconnect
- Operating Voltage 24 V dc +/- 15%
- Short Protection Yes
- Feature: Cascade Yes
- Overall Length (mm) 914
- Operating Distance (m) 0.1 - 12
- Electrical Safety Class III
- Housing Material Aluminum; Zinc; Acrylic
- External Monitoring Device No
- Recovery Time 67 / 225
- Vibration 10-55 Hz at 0.35 mm
- Feature: End-to-End Sensing Yes
- Dimensions WxD (mm) 36 x 45
- Operating Temperature -20 to +55 deg. C; RH 95%
- System Type Emitter
- Feature: ESD Safe No
- Defined Area Height (mm) 910
- PL Rating Ple
- Auxiliary Output No
- Test Input No
- Primary Housing Material Aluminum
- Fixed Blanking No
- Shock 10g at 16ms (6000 cycles)
- Trip/Latch Output N/A
- Safety Level Type 4
- Resolution (mm) 23
- Fault Output Yes
- Feature: Integral Muting No
- IP Rating IP65; IP67
- SIL Rating SIL3; CL3
- Reduced Resolution No
- OSSD Rating N/A
- Housing Finish Yellow Polyester
- Supply Current 26 mA Typical
- Scan Code Selectable
- Effective Aperture Angle Type 4 Per IEC 61496-2
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SLLCE23-910-S Description

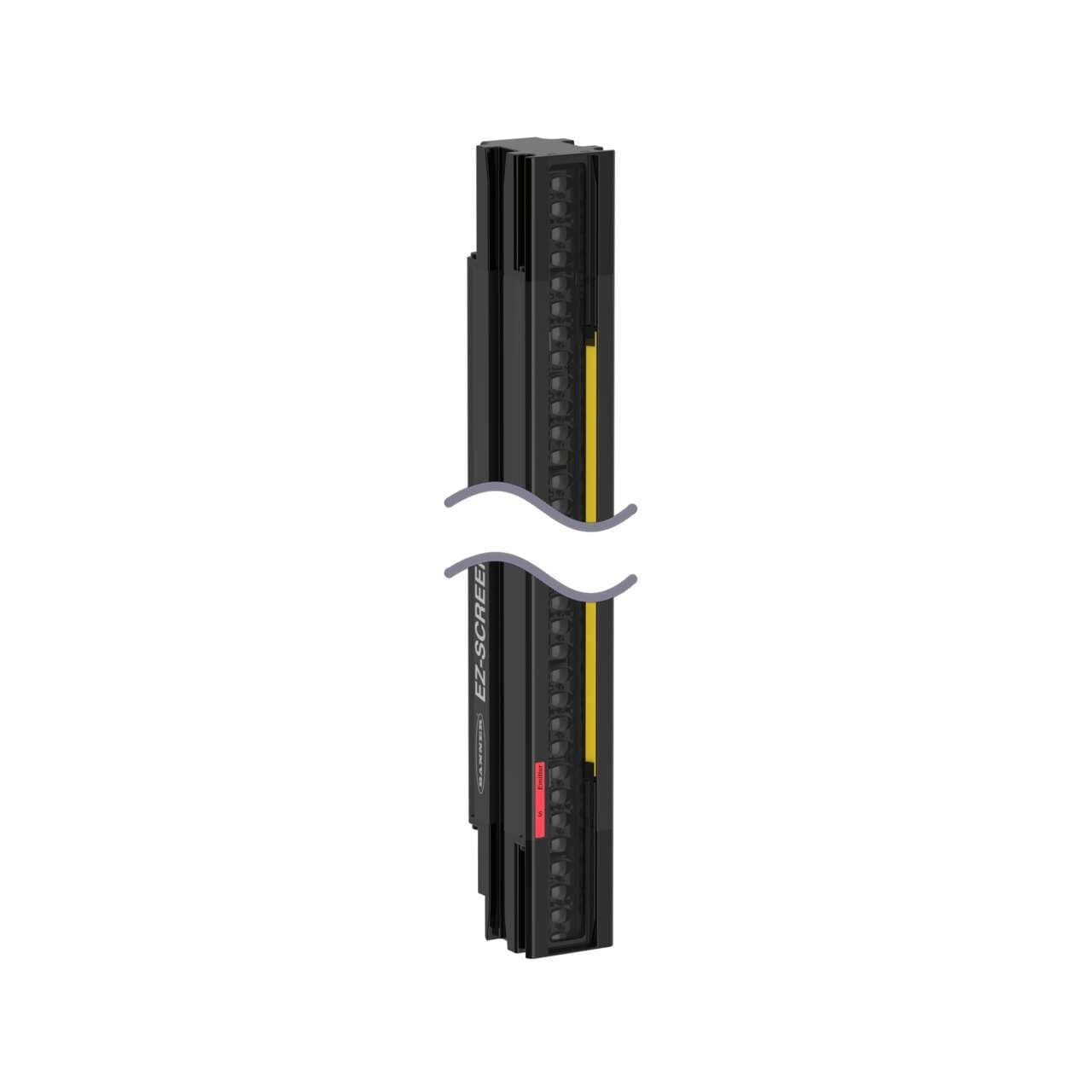

Banner Engineering SLLCE23-910-S is a safety light curtain from the LS-S series type 4 safety light curtains, designed with a cascadable feature. This part functions as a safety light curtain emitter alone, constructed with an aluminium housing, acrylic lens, and zinc end caps. It features an Integral Removable Disconnect (RD) for its connection type. The dimensions include a 910mm protective height, with a net width of 36 mm, net height of 914 mm, and net depth of 45 mm. The housing is colored yellow, and it operates on a 24Vdc supply voltage. It is designed to work within an ambient air temperature range of -20 to +55 °C. This part offers a degree of protection rated at IP65 and IP67. The distance between beams is 23mm, providing a resolution suitable for hand detection. It includes 1 x digital output (24Vdc; sourcing/PNP transistor; 70mA) for emitter fault indication. The sensing distance ranges from 10cm to 12m, with a response time of 15.9ms / 0.0159 s. The light emitted is in the infrared (IR) spectrum, with a wavelength of 850 nm.
