SLLCE23-1050-S Banner Safety Light Curtains
Part#:SLLCE23-1050-S
Manufacturer:Banner
Alt. Part#:809043
Product Lifecycle:Active
Get a quick Quote!

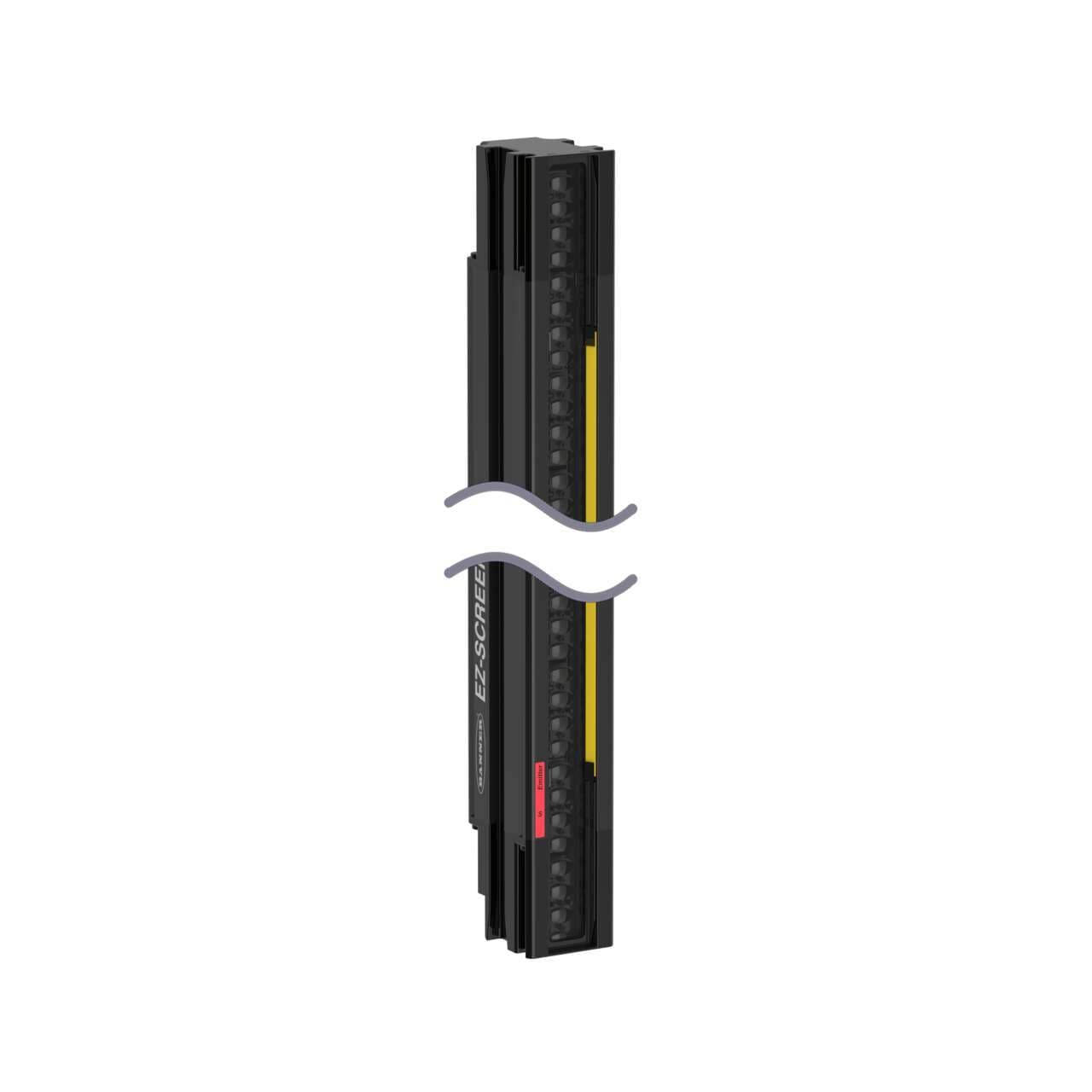

EZ-SCREEN LS Cascade, Emitter; Resolution: 23 mm; Range: 12 m (40 ft); Defined Area: 1050 mm (41.3 in); Housing: Black; Connection: Removable Disconnect (RD); Mounting Hardware and Cable/M12 Pigtail Ordered Separately
About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SLLCE23-1050-S Banner price in the box on the right side or send a quick quote.
Product Details
- Weight2399.50168 g
- Country Of OriginMX
- IP Rating IP65; IP67
- SIL Rating SIL3; CL3
- Trip/Latch Output N/A
- PL Rating Ple
- Test Input No
- Supply Current 26 mA Typical
- External Monitoring Device No
- Resolution (mm) 23
- Feature: End-to-End Sensing Yes
- Fixed Blanking No
- Operating Temperature -20 to +55 deg. C; RH 95%
- Short Protection Yes
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Housing Finish Yellow Polyester
- Operating Distance (m) 0.1 - 12
- Shock 10g at 16ms (6000 cycles)
- Dimensions WxD (mm) 36 x 45
- Electrical Safety Class III
- Fault Output Yes
- Connector Type Removable Disconnect
- Operating Voltage 24 V dc +/- 15%
- Feature: Integral Muting No
- Vibration 10-55 Hz at 0.35 mm
- Safety Level Type 4
- OSSD Rating N/A
- Reduced Resolution No
- Primary Housing Material Aluminum
- System Type Emitter
- Defined Area Height (mm) 1050
- Scan Code Selectable
- Feature: Cascade Yes
- Overall Length (mm) 1053
- Auxiliary Output No
- Housing Material Aluminum; Zinc; Acrylic
- Recovery Time 74 / 249
- Feature: ESD Safe No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SLLCE23-1050-S Description
Banner Engineering SLLCE23-1050-S is a safety light curtain from the LS-S series type 4 safety light curtains, designed with a cascadable feature. This part functions as a safety light curtain emitter alone, constructed with an aluminium housing, acrylic lens, and zinc end caps. It features an Integral Removable Disconnect (RD) for its connection type. The dimensions include a protective height of 1050mm, with a net width of 36mm, net height of 1053mm, and net depth of 45mm. The housing is colored yellow and operates on a 24Vdc supply voltage. It is designed to function within an ambient air temperature range of -20 to +55°C and offers a degree of protection rated at IP65 and IP67. The light curtain has a 23mm beam spacing/pitch, with 1 x digital output (24Vdc; sourcing/PNP transistor; 70mA) for emitter fault indication. It can sense objects within a distance of 10cm to 12m, utilizing infrared (IR) light with a wavelength of 850 nm. The response time is 17.5ms / 0.0175 s, and it has a resolution of 23mm for hand detection.
