SI-RFDL-LP8 Banner Safety Switches

Name: SI-RFDL-LP8
Brand: Banner
Price: 191.4 USD
Availability: InStock

Banner SI-RFDL-LP8 SI-RF Gate Switch; ISD Compatible; Coding: Low; Diagnostics: ISD; Reset: Manual; Connector: 250 mm 8-pin M12 Pigtail QD; Used With: SI-RF-A

Part#:SI-RFDL-LP8

Manufacturer:Banner

Alt. Part#:806401

Product Lifecycle:Active

In-stock parts: 10

Jun 19, 2025

SI-RF Gate Switch; ISD Compatible; Coding: Low; Diagnostics: ISD; Reset: Manual; Connector: 250 mm 8-pin M12 Pigtail QD; Used With: SI-RF-A

About the manufacturer: Banner is one of the manufacturers that offers Safety Switches that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SI-RFDL-LP8 Banner price in the box on the right side or send a quick quote.

Product Details

Weight113.398 g
Country Of OriginHU
Actuation
Standard
Device Shape
Rectangular
In-Series Diagnostics
Yes
Coding Level/Tamper Resistance
Low
Safety Category
Cat 4
Feature: Cascade
Yes
Trip Latch Output
Latch
Feature: Lockable
No
Auxilliary Output
No
Relative Humidity
93% @ 50 °C
SIL Rating
SIL CL 3
Connection Type
M12 Pigtail
Operating Voltage
24 V dc +25%, -20%
Max Op. Temperature (°C)
70
SISTEMA
PFHd of 1 x 10-9
OSSD Rating
24 VDC @ 0.1 A each
Device Type
RFID - Sensor
Actuator (Safety) Contacts
2 NC

Sar Maximum (mm)

Rated Operating Current

50 mA + output loads

Device Size

36 x 26 x 15

Monitor (Locked) Contacts

N/A

H Typical (mm)

Primary Housing Material

Thermoplastic

IP Rating

IP69

Sn Typical

Switch Style

Non-Contact

PL Rating

PL e

Sao Minimum (mm)

Min Op. Temperature (°C)

-25

Output Type

OSSD

Number of Pins

Response Time (ms)

100

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

SI-RFDL-LP8 Description

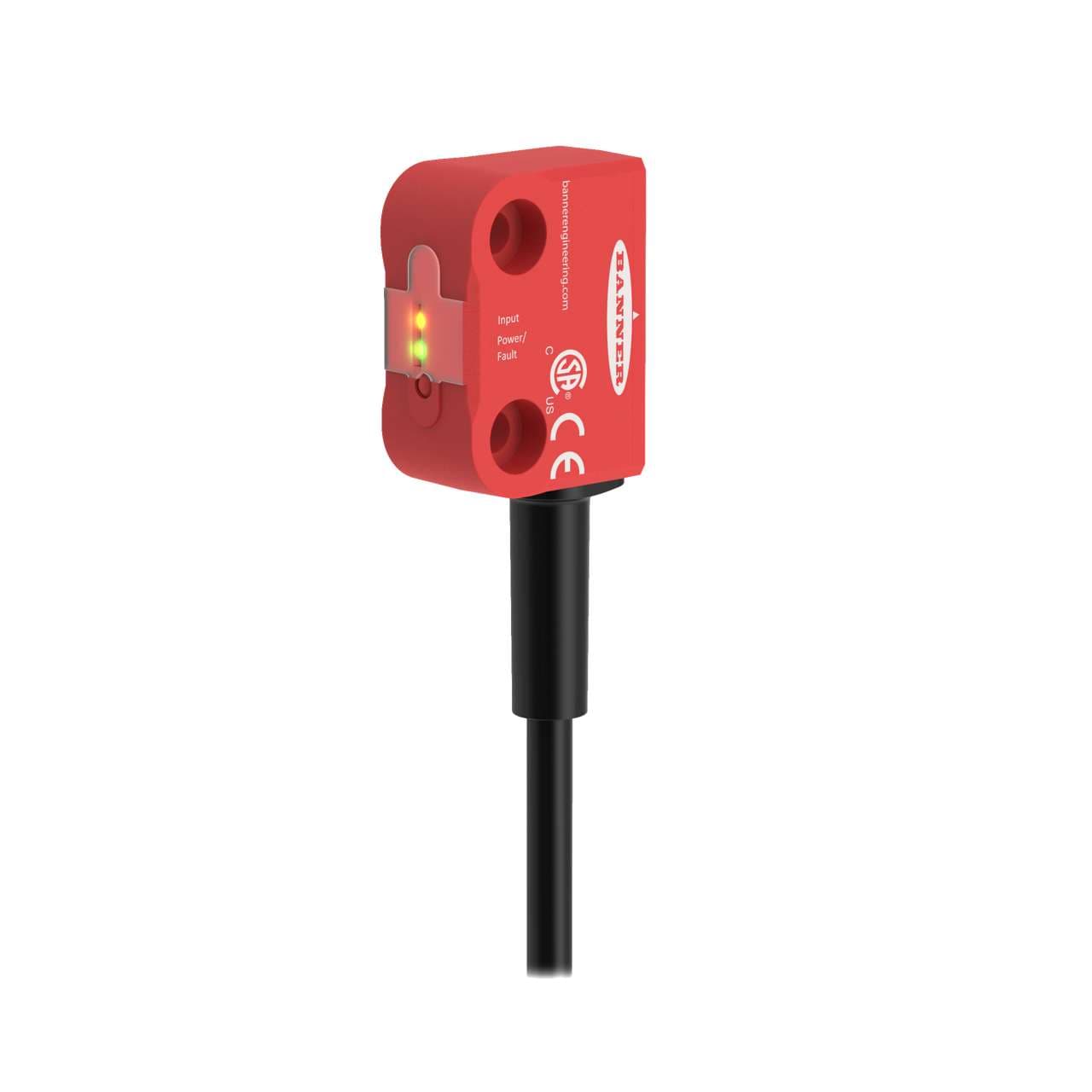

Banner Engineering SI-RFDL-LP8 is a non-contact RFID safety door/hood/gate switch from the SI-RF series, designed with a low-coding switch and In-Series Diagnostic (ISD) manual reset. It features a thermoplastic housing and is pre-wired with a 250mm pigtail terminated with an 8-pin Euro-style M12 connector. This part has 2NC contacts and operates with a 24Vdc supply voltage. It is suitable for ambient air temperatures ranging from -25 to +70°C and offers a degree of protection of IP69K. The switch has a rectangular shape with dimensions of 15mm in width, 32mm in height, and 26mm in depth. It provides a sensing distance of 10mm (Sao) to 25mm (Sar) and includes 0 NO auxiliary contacts and 2 NC auxiliary contacts.
