SI-LM40LA18E Banner Electronic Components
Part#:SI-LM40LA18E
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

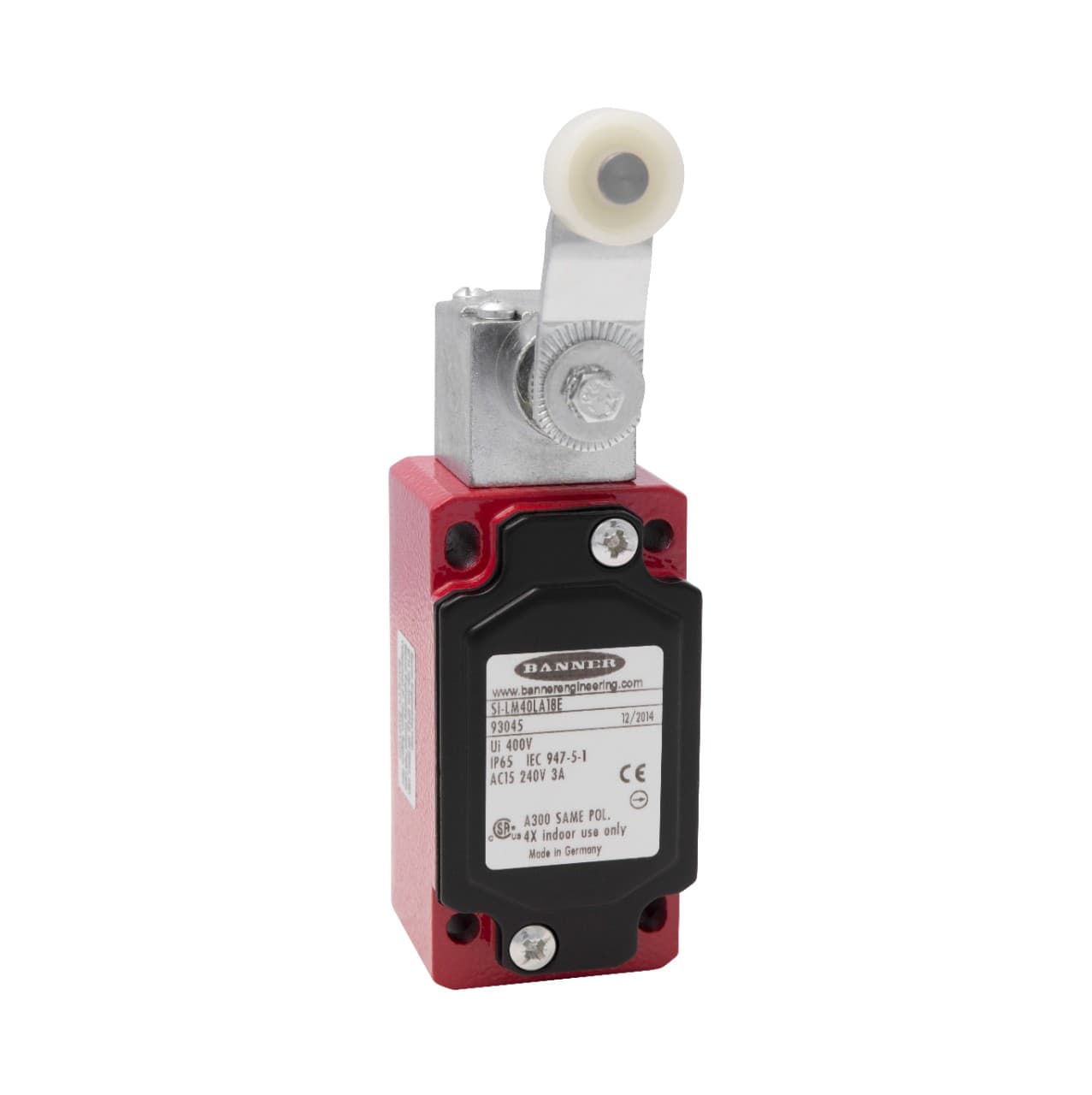

Banner Engineering SI-LM40LA18E is a safety limit switch within the SI-LM40xxx series, featuring a spindle-mount 18mm roller design. This part is constructed with a die-cast Aluminium alloy housing and utilizes a wiring chamber with M20 entry for connections. It is equipped with 2NC (slow-action / make-and-break) contacts, supporting rated currents of 3A at 240Vac (A300), 6A at 120Vac (A300), 1A (Ith), 3A at 240Vac (AC-15), and 6A at 120Vac (AC-15). The SI-LM40LA18E operates within an ambient air temperature range of -30 to +80°C and offers a degree of protection rated at IP65. Its rectangular shape measures 40 mm in width, 78 mm in height, and 42 mm in depth, with 2 NC Pole(s) and 0 NO Pole(s).
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SI-LM40LA18E Banner price in the box on the right side or send a quick quote.
Product Details
- Device Size 108 x 40 x 42
- SIL Rating SIL CL 3
- Auxilliary Output No
- Max Op. Temperature (°C) 80
- Actuator (Safety) Contacts 2 NC
- Coding Level/Tamper Resistance Uncoded
- IP Rating IP65
- Mechanical Life (operations in millions) 1
- Primary Housing Material Aluminum Alloy Die-Cast
- Monitor (Locked) Contacts N/A
- PL Rating PL e
- Feature: Lockable No
- Min Op. Temperature (°C) -30
- Actuation Spindle
- In-Series Diagnostics No
- Device Shape Rectangular
- Output Type Contacts
- Switch Style Contact
- Safety Category Cat 4
- Connection Type Wiring Chamber
- Device Type Limit Switch
- SISTEMA B10d = 2 million
