RP-LS42F-75L Banner Safety Switches
Part#:RP-LS42F-75L
Manufacturer:Banner
Alt. Part#:67707
Product Lifecycle:Active
Get a quick Quote!
Heavy Duty Plastic Emergency Stop Rope Pull; Ring Attachment, 75 m Max Range; Latch Actuation, 2 NC Safety Contacts; 2 NO Aux Contact
About the manufacturer: Banner is one of the manufacturers that offers Safety Switches that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the RP-LS42F-75L Banner price in the box on the right side or send a quick quote.
Product Details
- Weight580.59776 g
- Country Of OriginDE
- Feature: Lockable No
- Attachment Ring
- Dimensions (HxWxD mm ) 224 x 42.5 x 45
- Device Type Rope Pull w/Reset Button
- Min Operating Temperature ( °C) -25
- Housing Style Limit Switch
- IP Rating IP67
- Actuator/Button Material Zinc Alloy Die-Cast
- Actuation Latch
- Contact Rating 3 A @ 240 V ac/10 A @ 24 V dc
- Primary Housing Material Thermoplastic
- Max Operating Temperature ( °C) 70
- Contact Quantity 2 NO, 2 NC
- Button Shroud No
- Connection Type Wiring Chamber
- Max Cable Length (m) 75
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
RP-LS42F-75L Description

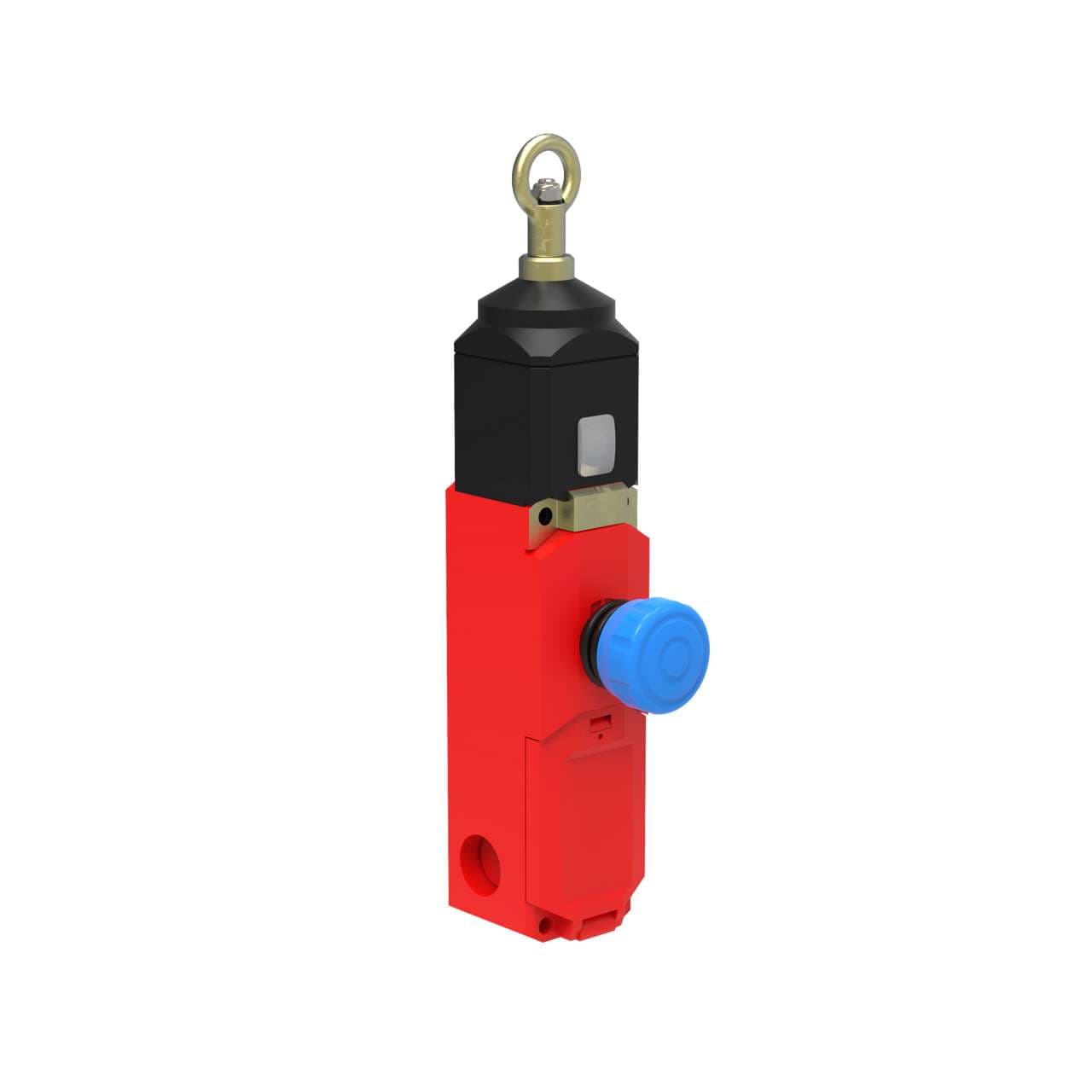

Banner Engineering RP-LS42F-75L is a heavy-duty rope-pull/grab-wire emergency stop switch designed for industrial safety applications. It features a thermoplastic housing with a die-cast zinc alloy actuator and a ring design. This safety switch offers a wiring chamber connection and can accommodate a maximum rope span of 75 meters. It is equipped with 2NC (safety) + 2NO (auxiliary) contacts, supporting a rated current of 10A at 24Vac (AC-15), 6A at 24Vdc (DC-13), 10A at 110Vac (AC-15; 40-60Hz), 1A at 110Vdc (DC-13), 6A at 230Vac (AC-15; 40-60Hz), and 0.4A at 230Vdc (DC-13). The RP-LS42F-75L operates within an ambient air temperature range of -25 to +70��C and offers a degree of protection of IP67. Its net width is 43 mm, and it is rated for a voltage of up to 600Vac.
Related documents RP-LS42F-75L Specs
1-year warranty
