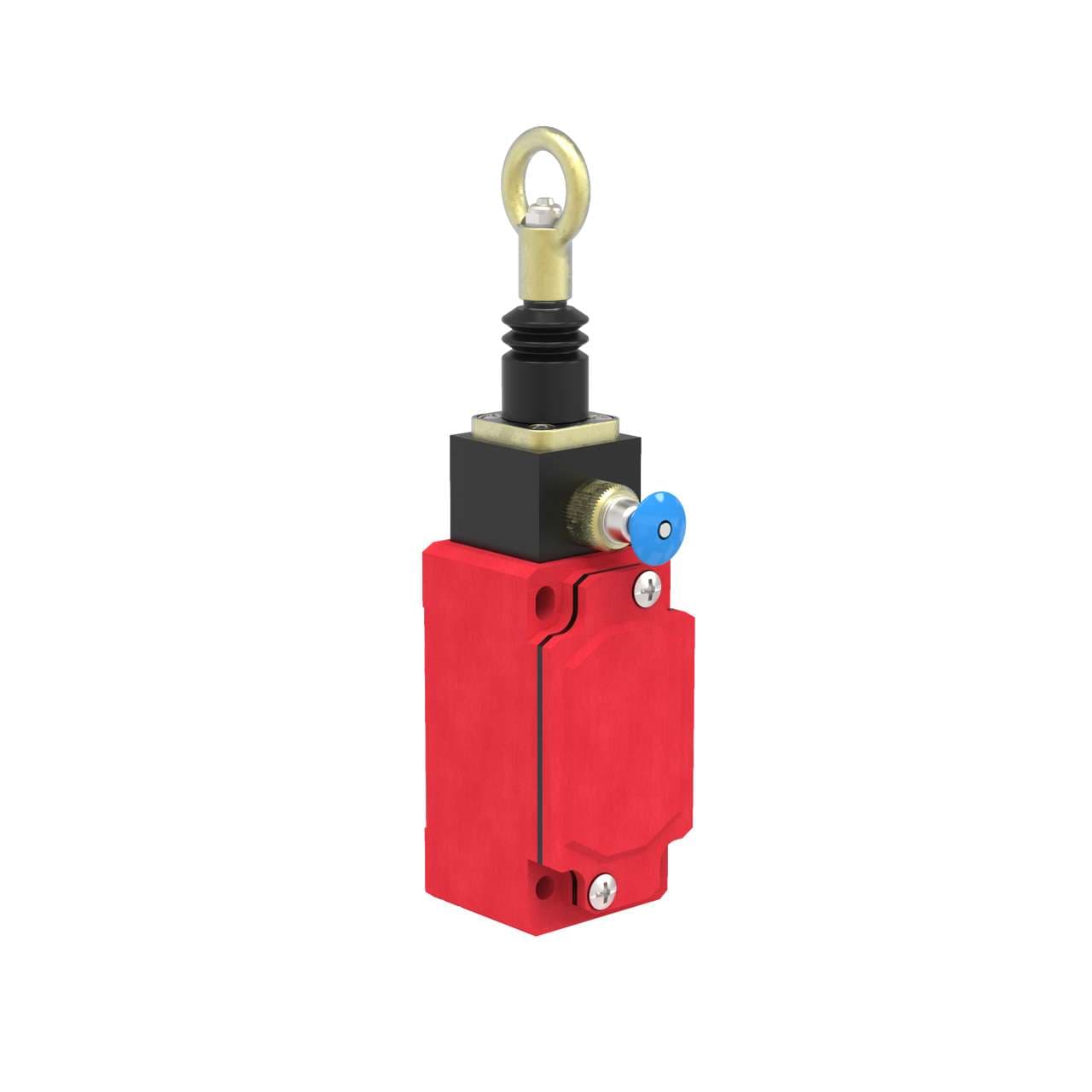

RP-LM40D-6L Banner Safety Switches
Part#:RP-LM40D-6L
Manufacturer:Banner
Alt. Part#:62058
Product Lifecycle:Active
Get a quick Quote!
Heavy Duty Metal Stop Control Rope Pull; Ring Attachment, 6 m Max Range; Latch Actuation, 1 NC Rope Pulled Contact; 1 NC Rope Break Contact
About the manufacturer: Banner is one of the manufacturers that offers Safety Switches that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the RP-LM40D-6L Banner price in the box on the right side or send a quick quote.
Product Details
- Weight386.1882288 g
- Country Of OriginDE
- Actuation Latch
- Min Operating Temperature ( °C) -30
- Contact Quantity 2 NC
- Button Shroud No
- Max Cable Length (m) 6
- Feature: Lockable No
- Dimensions (HxWxD mm ) 147.5 x 40 x 52
- Device Type Rope Pull
- Primary Housing Material Aluminum Alloy Die-Cast
- Housing Style Limit Switch
- IP Rating IP65
- Actuator/Button Material Zinc Alloy Die-Cast
- Attachment Ring
- Max Operating Temperature ( °C) 80
- Connection Type Wiring Chamber
- Contact Rating 6 A @ 24 V dc
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
RP-LM40D-6L Description
Banner Engineering RP-LM40D-6L is a safety switch designed as a latching rope-pull/grab-wire emergency stop switch. It features a heavy-duty ring design with a housing made of die-cast Aluminium alloy and an actuator of die-cast Zinc alloy. This part offers a wiring chamber connection and supports a maximum rope span of 6 meters or 20 feet. It is equipped with 1NC (rope-pull) + 1NC (rope break) contacts. The rated current specifications include 10A at 24Vac (AC-15), 6A at 24Vdc (DC-13), 10A at 110Vac (AC-15; 40-60Hz), 1A at 110Vdc (DC-13), 6A at 230Vac (AC-15; 40-60Hz), and 0.4A at 230Vdc (DC-13). The RP-LM40D-6L operates within an ambient air temperature range of -30 to +80��C and offers a degree of protection rated at IP65. The net width of the device is 40 mm, and it is rated for use with up to 600Vac (AC).
