QDE2R4-825D Banner Cordsets
Part#:QDE2R4-825D
Manufacturer:Banner
Alt. Part#:73258
Product Lifecycle:Active
Get a quick Quote!

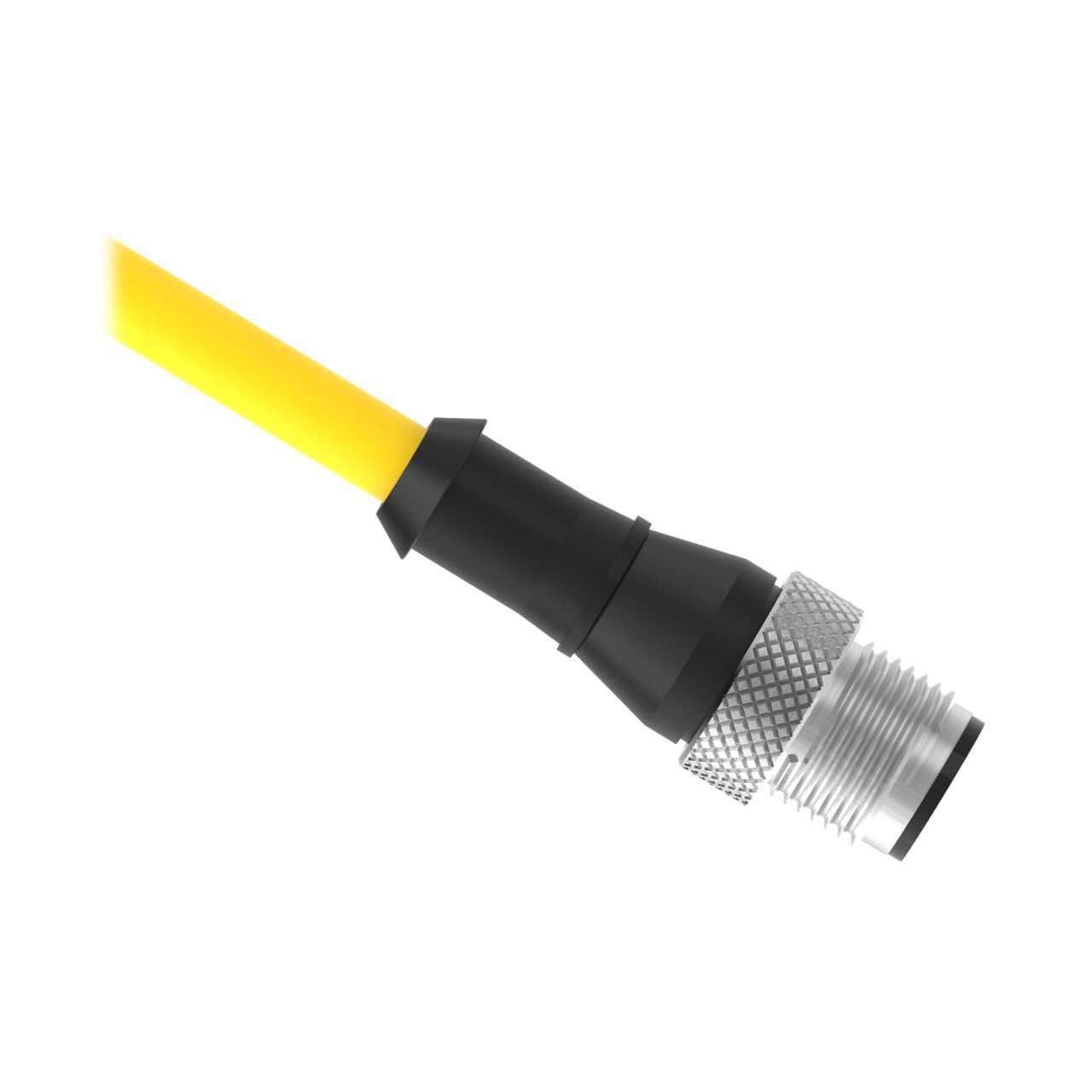

Cordset: Single Ended M12; 8-pin Straight Male; 7.62 m 5x22 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nut
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the QDE2R4-825D Banner price in the box on the right side or send a quick quote.
Product Details
- Weight299.37072 g
- Country Of OriginTW
- Connector Body Material/Color PUR Black
- Primary Number of Conductors 5
- Trunk Length (m) No Trunk
- IP Rating IP67
- Cable Jacket Material PVC
- Minimum Temp. (°C) -40
- Oil/Grease Resistant No
- Coupling Material/Color Nickel Plated Brass
- Primary Orientation Straight
- Shield/No Shield No Shield
- Primary Gender Male
- Cable Jacket Color Yellow
- Voltage Rating (V) 60 V ac/75 V dc
- Feature: Hazardous Area No
- Outside Cable Diameter (mm) 5.5
- Number of Contacts 8
- Primary AWG 22
- Cordset Length (m) 7.62
- Primary Coupling Method M12 Single Key
- Maximum Temp. (°C) 105
- Secondary Connector Type Flying Leads
- Number of Connectors 1
- Current Rating (A) 2.0
- Primary Connector Type EURO
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
QDE2R4-825D Description
Banner Engineering QDE2R4-825D is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 5.5mm diameter PVC cable and a 5-pin Euro-style M12 male connector to bare end flying leads. This cable operates effectively within an ambient air temperature range of -40 to +105°C. It offers a degree of protection rated at IP67, making it suitable for environments where dust and water resistance are necessary. The cable is sheathed in yellow, measures 7.62 meters in length, and is rated for 75Vdc and 60Vac, accommodating a broad range of electrical requirements.
