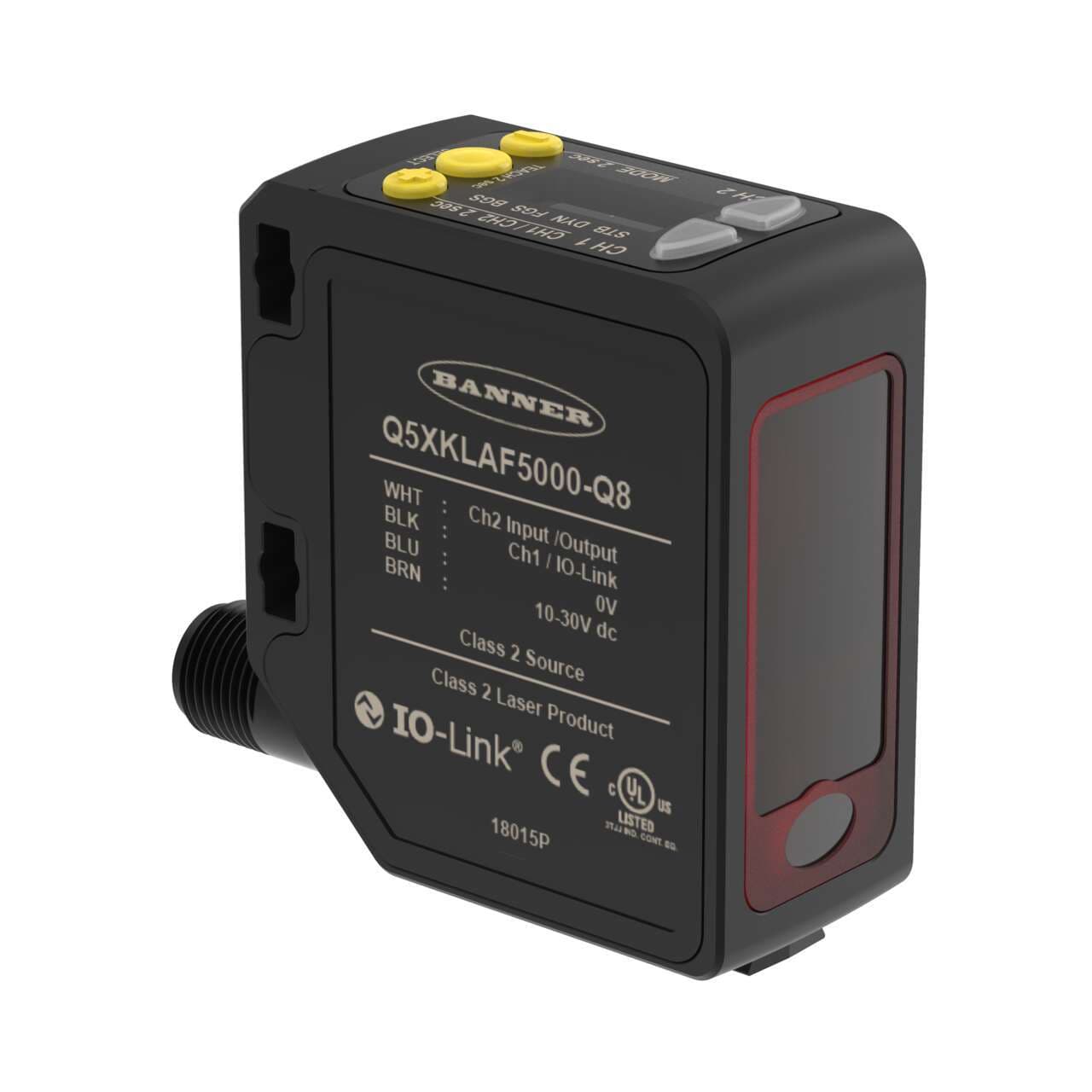

Q5XKLAF5000-Q8 Banner Proximity Sensors
Part#:Q5XKLAF5000-Q8
Manufacturer:Banner
Alt. Part#:807731
Product Lifecycle:Active
Get a quick Quote!
Q5X Series: Laser Adjustable Field; Range: 50-5000 mm; Input: 10-30 V dc; Output: 1 PNP/NPN with IO-Link; 1 PNP/NPN Multi-Function I/O; 4-pin M12 Rotatable QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the Q5XKLAF5000-Q8 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight130.180904 g
- Country Of OriginUS
- Sensing Mode (Detailed) Background/Foreground Suppression
- Indicator Display; LED(s)
- Temperature Effect (mm/°C) < +/- 0.5 mm/°C < 3000 mm,< +/- 0.75 mm/°C at < 5000 mm
- Discrete (Switched) Outputs 2 NPN/PNP Configurable
- Output Protection Protected against continuous overload and short circuit
- Power DC
- Primary Housing Material ABS
- Delay at Power-up (ms) 2500
- Output Saturation Voltage PNP Outputs < 2.5 V @ 50 mA
- Max Op. Relative Humidity Non-Condensing (%) 95 at 50°C
- Power/Current Consumption (exclusive of load) < 1 W
- Feature: Pump-in/ Pump-out Yes
- Profibus No
- Max Measurement Range >1 m - <=20 m
- Connection Integral QD
- Power Supply 10-30 V dc
- Output Saturation Voltage NPN Outputs < 2.5 V @ 50 mA
- Max Operating Temperature (°C) 50
- Max Ambient Light (Lux) up to 5000 lux at 1000 mm and up to 2000 lux at 2000 mm
- Common Ethernet Protocol No
- 1-wire Serial Interface No
- Housing Style Rectangular
- Quick Disconnect Type M12 (Euro)
- Adjustments Push Button; Remote Teach
- Storage Temperature (°C) -25 to 70
- Minimum Response Time (ms) 2
- Feature: Clear Object Detection Yes
- RS-422 No
- Laser Classification Class 2
- Device Type Sensor
- Mechanical Shock MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
- IP Rating IP67
- Laser Control Yes
- PROFINET No
- Input/Output Discrete
- PC Configurable No
- Sensing Beam Wavelength (nm) 650
- Max Discrete (Switched) Output (mA) 50
- Warm-up Time (minutes) 10
- Feature: Remote Teach Yes
- Wireless No
- PFM Output Yes
- Max Sensing Distance (mm) 5000
- Vibration MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
- Minimum Window Size (mm) 1
- Feature: Timing (Hold/Delay) Yes
- RS-232 No
- Sensing Beam Visible Red Laser
- Analog Resolution/Discrete Repeatability 95mm to 3000mm: +/-1.0mm; 3m to 5m: +/- 1.5mm
- Number of Pins 4
- Window Material PMMA
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- IO Link Yes
- Sensing Mode (General) Proximity
- Minimum Sensing Distance (mm) 50
- Min Operating Temperature (°C) -10
- Spot Size (@ Reference Distance) 7.0 mm x 11.0 mm @ 5000 mm
- RS-485 No
- Feature: Chemical Resistant No
- Discrete Output Hysteresis (mm) Automatically adjusted
- SSI No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Q5XKLAF5000-Q8 Description
Banner Engineering Q5XKLAF5000-Q8 is a Class 2 laser adjustable-field photo-electric sensor designed for a variety of applications requiring precise detection. This sensor operates within an ambient air temperature range of -10 to +50 degrees Celsius and features a background/foreground suppression system with dual discrete output and IO Link TEACH mode for enhanced functionality. It comes pre-equipped with a 4-pin Euro-style M12 connector for easy installation. As part of the Q5X series, it boasts an IP67 degree of protection, making it suitable for demanding environments. The sensor requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. Its rectangular shape is constructed from a thermoplastic housing with a Polymethyl methacrylate (PMMA) window for durability. Communication is facilitated via IO-Link protocol. The sensing distance ranges from 65cm to 2.5m, utilizing visible class 2 red laser light with a wavelength of 650 nm. It also features 2 digital outputs (PNP/NPN transistor / IO-Link) for versatile connectivity options.
Related documents Q5XKLAF5000-Q8 Specs
