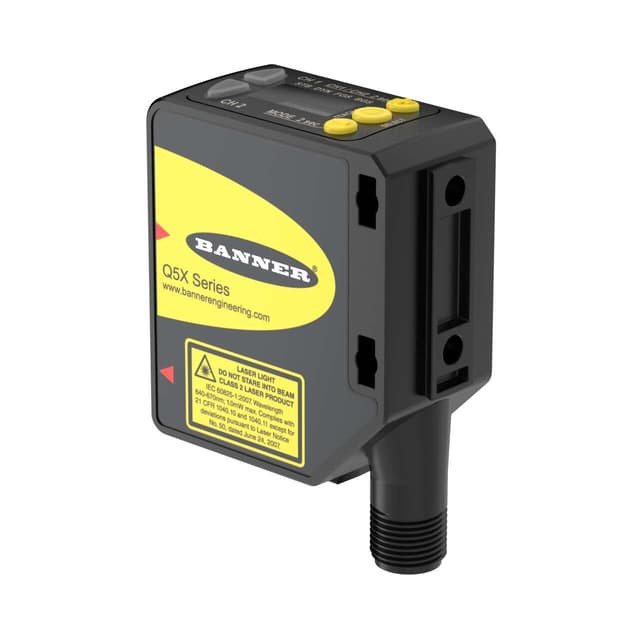

Q5XKLAF2000-Q8 Banner Proximity Sensors
Part#:Q5XKLAF2000-Q8
Manufacturer:Banner
Alt. Part#:803693
Product Lifecycle:Active
Get a quick Quote!

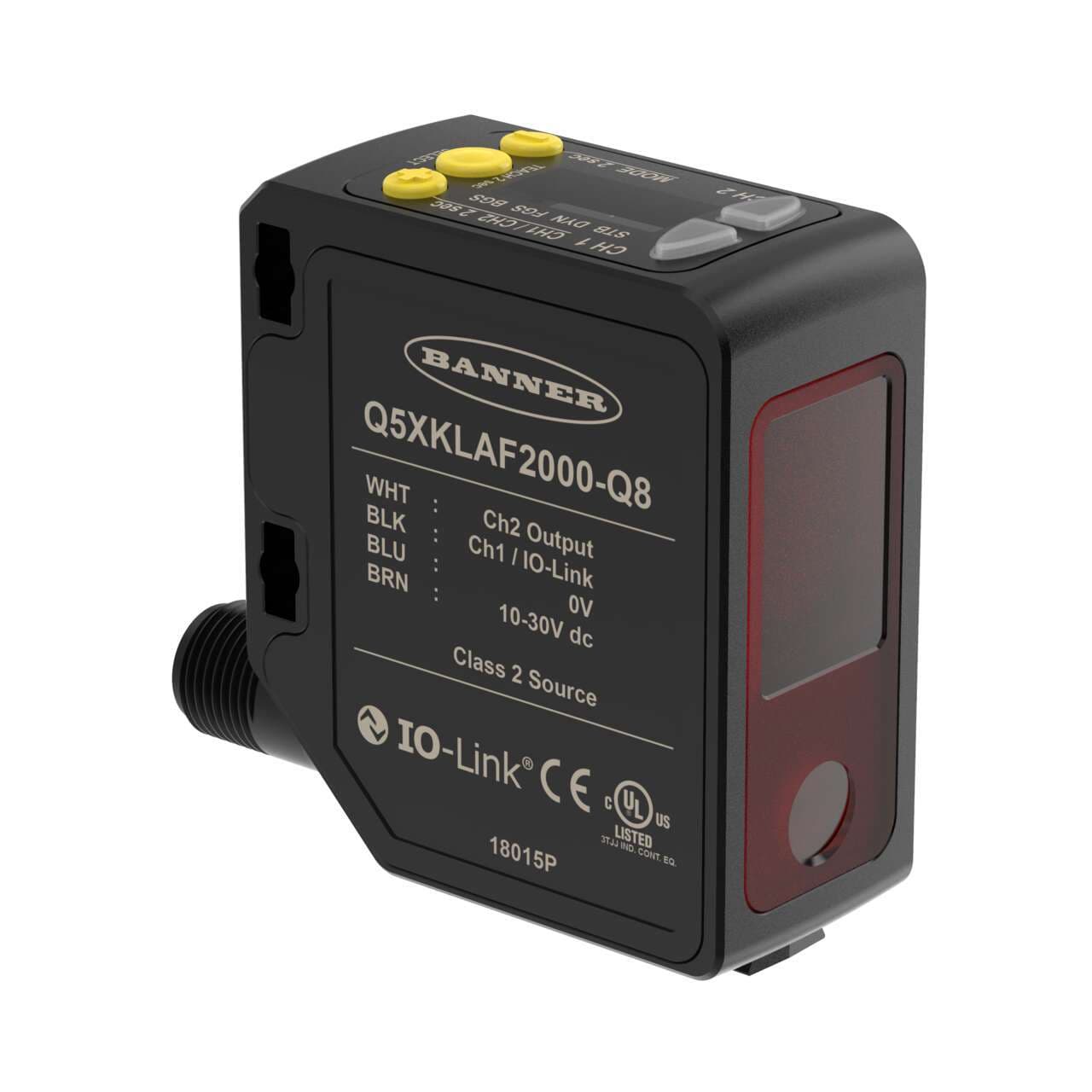

Q5X Series: Laser Adjustable Field; Range: 95-2000 mm; Input: 10-30 V dc; Output: 1 PNP/NPN with IO-Link; 1 PNP/NPN Multi-Function I/O; 4-pin M12 Rotatable QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the Q5XKLAF2000-Q8 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight117.93392 g
- Country Of OriginUS
- Power DC
- Laser Classification Class 2
- Sensing Beam Wavelength (nm) 650
- PC Configurable No
- Primary Housing Material ABS
- Delay at Power-up (ms) 2500
- Vibration MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
- Max Op. Relative Humidity Non-Condensing (%) 95 at 50°C
- Feature: Clear Object Detection Yes
- RS-232 No
- Housing Style Rectangular
- Analog Resolution/Discrete Repeatability 95mm to 300mm: +/-0.5; 300mm to 1m: +/- 0.25% of range;1m to 2m: +/- 0.5% of range
- Output Saturation Voltage PNP Outputs < 2.5 V @ 50 mA
- Max Measurement Range >1 m - <=20 m
- Max Sensing Distance (mm) 2000
- Warm-up Time (minutes) 10
- PFM Output Yes
- Number of Pins 4
- Minimum Sensing Distance (mm) 95
- Storage Temperature (°C) -25 to 70
- Minimum Window Size (mm) 1
- Feature: Pump-in/ Pump-out Yes
- Wireless No
- Device Type Sensor
- Connection Integral QD
- Adjustments Push Button; Remote Teach
- IP Rating IP67
- Discrete Output Hysteresis (mm) Automatically adjusted
- Feature: Chemical Resistant No
- Indicator Display; LED(s)
- Sensing Beam Visible Red Laser
- Mechanical Shock MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
- Max Ambient Light (Lux) up to 5000 lux at 1000 mm and up to 2000 lux at 2000 mm
- Minimum Response Time (ms) 3
- PROFINET No
- Sensing Mode (Detailed) Background/Foreground Suppression
- Input/Output Discrete
- Power Supply 10-30 V dc
- Discrete (Switched) Outputs 2 NPN/PNP Configurable
- Min Operating Temperature (°C) -10
- Power/Current Consumption (exclusive of load) < 1 W
- RS-485 No
- Sensing Mode (General) Proximity
- Temperature Effect (mm/°C) < +/- 0.5 mm/°C < 500 mm,< +/- 1.0 mm/°C at < 1000 mm, < +/- 2.0 mm/°C at < 2000 mm
- Output Protection Protected against continuous overload and short circuit
- Quick Disconnect Type M12 (Euro)
- Feature: Timing (Hold/Delay) Yes
- Output Saturation Voltage NPN Outputs < 2.5 V @ 50 mA
- Window Material PMMA
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- IO Link Yes
- Max Discrete (Switched) Output (mA) 50
- Max Operating Temperature (°C) 50
- Laser Control Yes
- Common Ethernet Protocol No
- 1-wire Serial Interface No
- Feature: Remote Teach Yes
- RS-422 No
- Profibus No
- SSI No
- Spot Size (@ Reference Distance) 6.0 mm x 3.6 mm @ 2000 mm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Q5XKLAF2000-Q8 Description
Banner Engineering Q5XKLAF2000-Q8 is a Class 2 laser adjustable-field photo-electric sensor designed for precise detection tasks. It operates within an ambient air temperature range of -10 to +50 °C and features a background/foreground suppression system with dual discrete output and IO Link TEACH mode for enhanced functionality. This sensor is equipped with a 4-pin Euro-style M12 connector for easy installation and is part of the Q5X series. It boasts an IP67 degree of protection, ensuring durability in various environments. The supply voltage requirement ranges from 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. The Q5XKLAF2000-Q8 has a rectangular shape with a thermoplastic housing and a Polymethyl methacrylate (PMMA) window for durability. It utilizes the IO-Link communication protocol for efficient data exchange. The sensing distance spans from 9.5cm to 2m, and it emits a visible class 2 red laser with a wavelength of 650 nm. Additionally, it features 2 x digital outputs (PNP/NPN transistor / IO-Link) for versatile connectivity options.
Related documents Q5XKLAF2000-Q8 Specs
