PSG-4M-410-USB Banner Cordsets
Part#:PSG-4M-410-USB
Manufacturer:Banner
Alt. Part#:11338
Product Lifecycle:Active
Get a quick Quote!

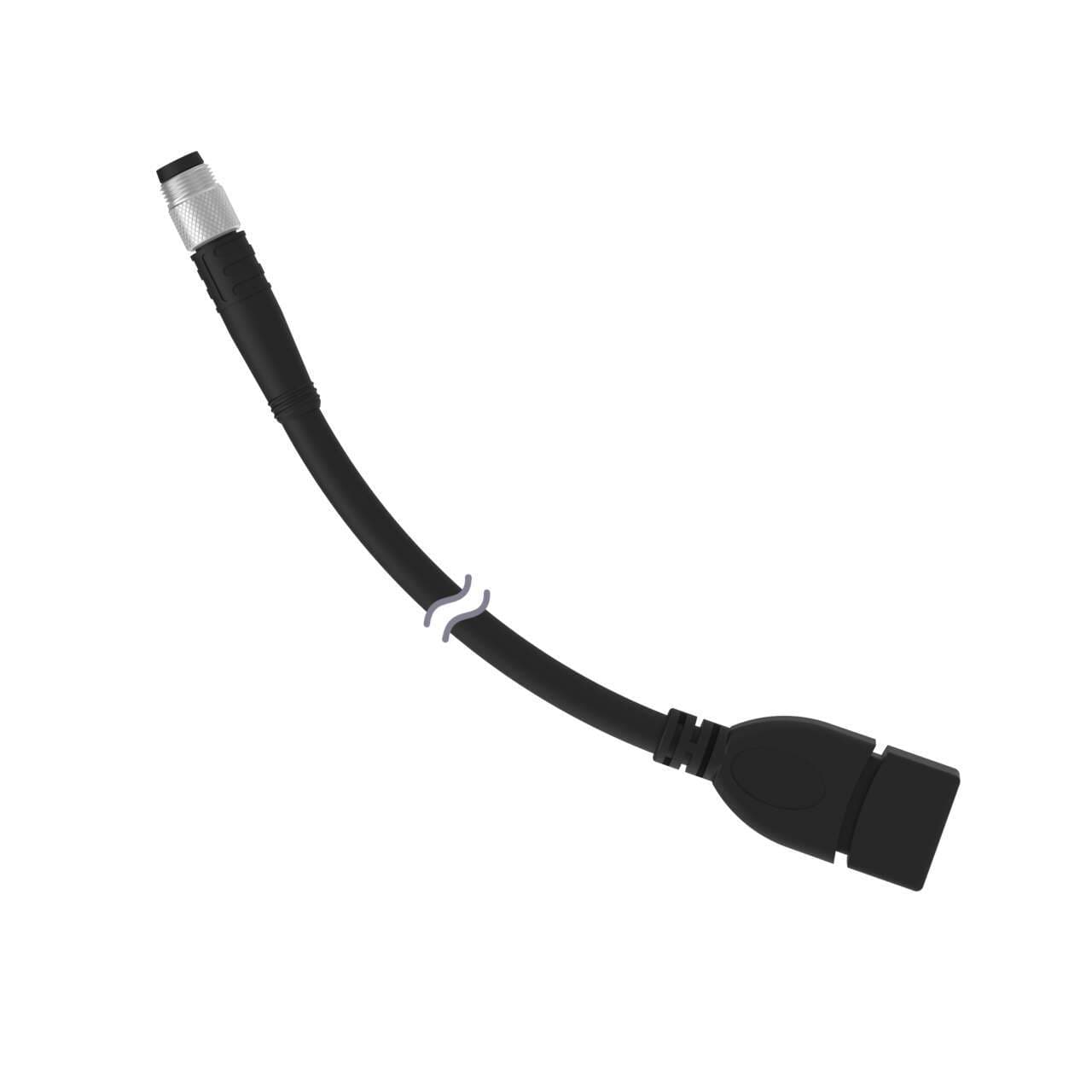

Cordset: Double Ended M8 to USB-A; 4-pin Straight Male; 4-pin Straight Female; 3 m 4x24,28 Shielded Black PVC Jacket; Nickel-Plated Brass Coupling Nuts
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the PSG-4M-410-USB Banner price in the box on the right side or send a quick quote.
Product Details
- Weight113.398 g
- Country Of OriginTW
- Cable Jacket Material PVC
- Secondary Connector Type USB-A
- Maximum Temp. (°C) 105
- Outside Cable Diameter (mm) 4.8
- IP Rating IP67
- Secondary Number of Conductors 4
- Trunk Length (m) No Trunk
- Primary Connector Type PICO
- Secondary Orientation Straight
- Number of Contacts 4
- Secondary Coupling Method USB
- Current Rating (A) 2.0
- Primary Number of Conductors 4
- Coupling Material/Color Nylon/NPB
- Primary Gender Male
- Oil/Grease Resistant No
- Shield Type Open
- Primary AWG 24, 28
- Feature: Hazardous Area No
- Cordset Length (m) 3.05
- Minimum Temp. (°C) -40
- Secondary Gender Female
- Connector Body Material/Color PUR Black
- Cable Jacket Color Black
- Voltage Rating (V) 60 V ac/75 V dc
- Primary Coupling Method M8 Thread/Snap
- Number of Connectors 2
- Shield/No Shield Shield
- Primary Orientation Straight
- Secondary AWG 24, 28
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
PSG-4M-410-USB Description
Turck PSG-4M-410-USB is a cover designed specifically for M8 connectors, serving as a dust cap to protect the connector interfaces from dust and debris.
