PSG-4M-403-USB Banner Cordsets
Part#:PSG-4M-403-USB
Manufacturer:Banner
Alt. Part#:11337
Product Lifecycle:Active
Get a quick Quote!

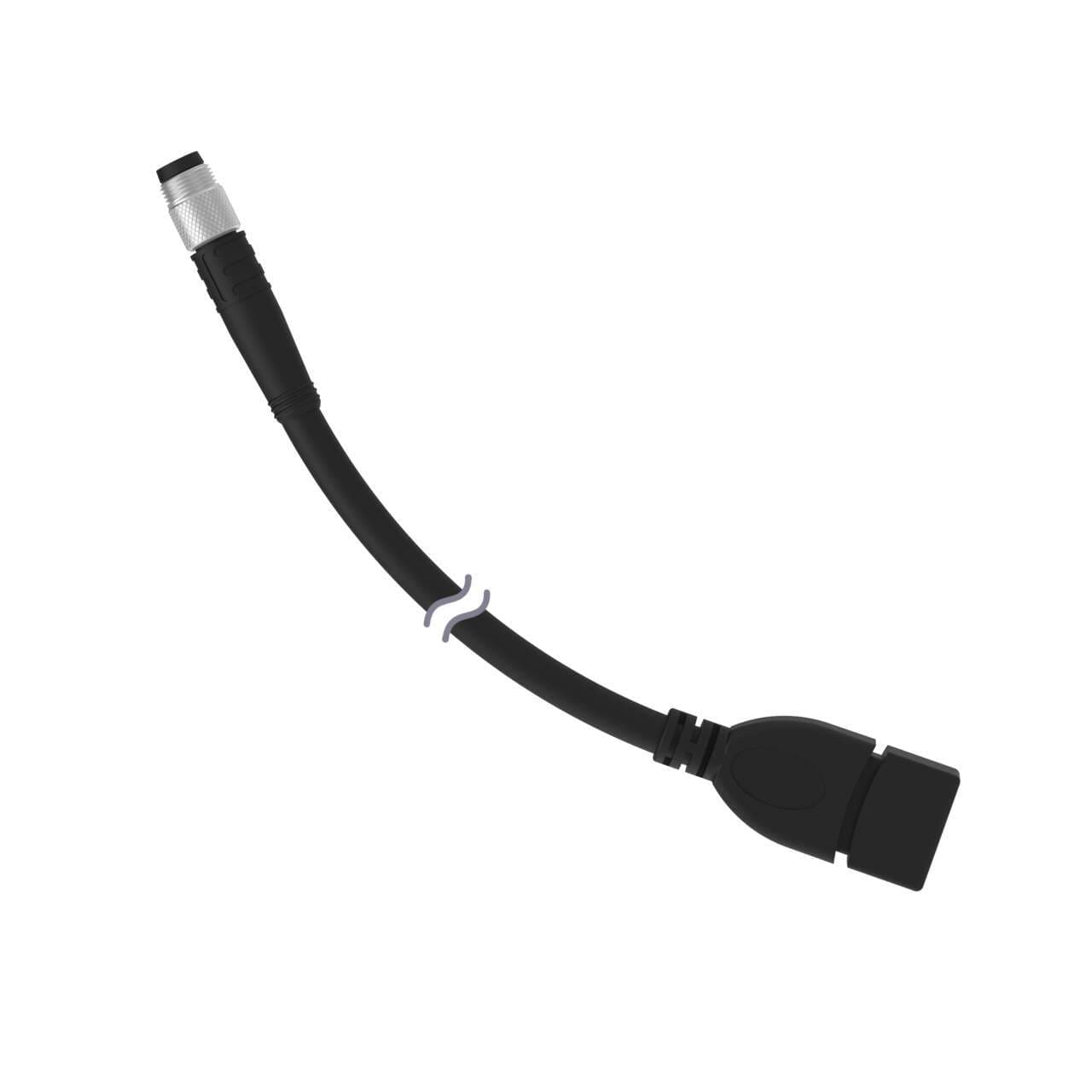

Cordset: Double Ended M8 to USB-A; 4-pin Straight Male; 4-pin Straight Female; 0.9 m 4x24,28 Shielded Black PVC Jacket; Nickel-Plated Brass Coupling Nuts
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the PSG-4M-403-USB Banner price in the box on the right side or send a quick quote.
Product Details
- Weight45.3592 g
- Country Of OriginTW
- Shield Type Open
- Secondary Connector Type USB-A
- Cordset Length (m) 0.91
- Current Rating (A) 2.0
- Secondary Number of Conductors 4
- Trunk Length (m) No Trunk
- Number of Contacts 4
- Primary Coupling Method M8 Thread/Snap
- Number of Connectors 2
- Primary Connector Type PICO
- Cable Jacket Material PVC
- Minimum Temp. (°C) -40
- Secondary Coupling Method USB
- Outside Cable Diameter (mm) 4.8
- Maximum Temp. (°C) 105
- Voltage Rating (V) 60 V ac/75 V dc
- Primary AWG 24, 28
- Shield/No Shield Shield
- Primary Gender Male
- Secondary Gender Female
- Cable Jacket Color Black
- Primary Number of Conductors 4
- IP Rating IP67
- Connector Body Material/Color PUR Black
- Coupling Material/Color Nylon/NPB
- Primary Orientation Straight
- Secondary AWG 24, 28
- Oil/Grease Resistant No
- Feature: Hazardous Area No
- Secondary Orientation Straight
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
PSG-4M-403-USB Description
Banner Engineering PSG-4M-403-USB is a pre-assembled, double-ended cable designed for various automation applications. It features a 4.8mm diameter PVC cable with black sheathing and measures 10ft (3m) in length. This cordset is equipped with a 4-pin M8 male connector on one end and a USB type A connector on the other. It operates within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP67, making it suitable for environments where dust and moisture resistance are required. The PSG-4M-403-USB is rated for a voltage of 75Vdc and 60Vac.
