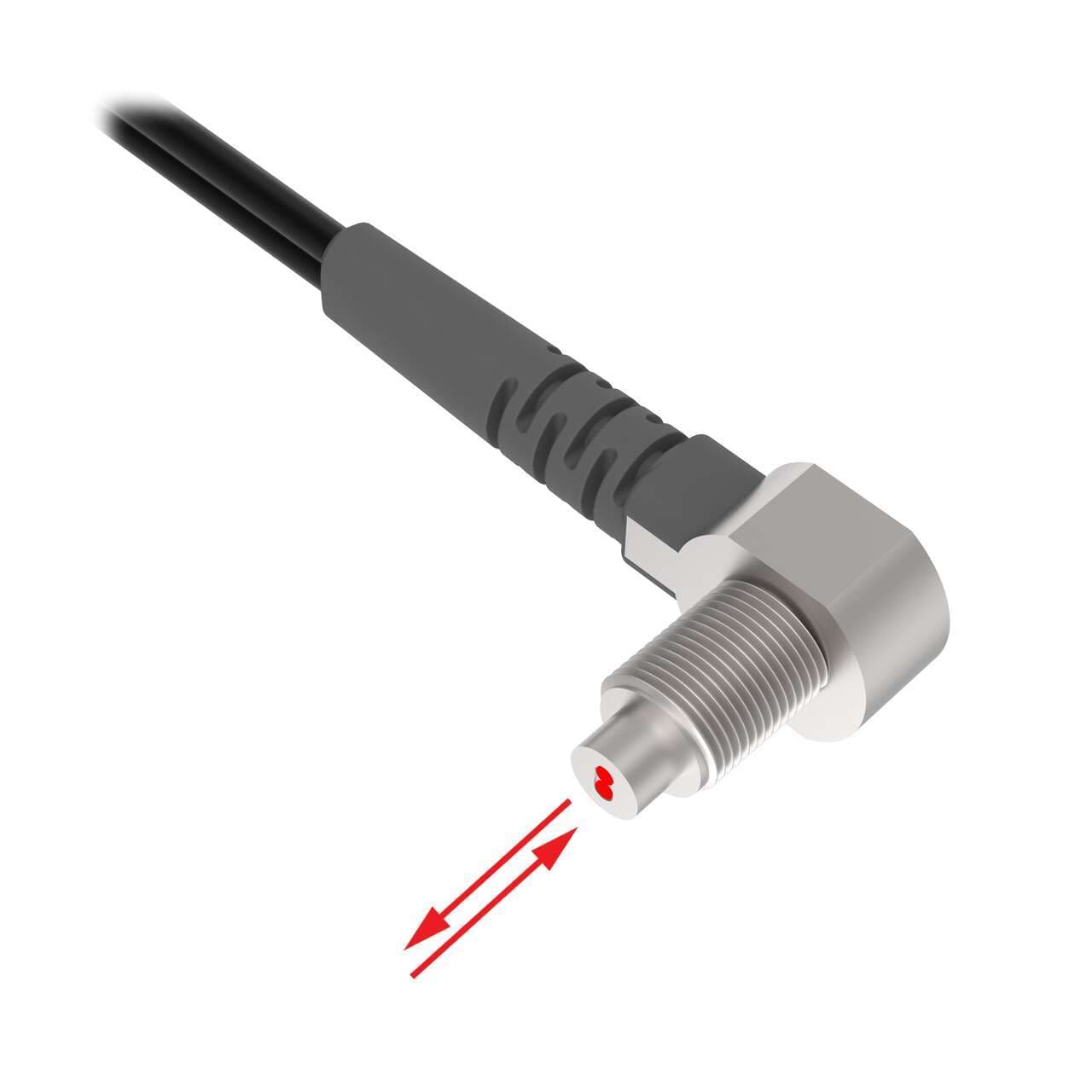

PBAT43UHFTA-VL Banner Through Beam Sensors
Part#:PBAT43UHFTA-VL
Manufacturer:Banner
Alt. Part#:88141
Product Lifecycle:Active
Get a quick Quote!
Plastic Fiber, Diffuse Reflective; Core Dia.: 1 mm; Fiber Length 1 m; Right-Angle, Thread M6; High Flex 2 mm Bend Radius, Flex Relief; Free Cut; Vantage Line
About the manufacturer: Banner is one of the manufacturers that offers Through Beam Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the PBAT43UHFTA-VL Banner price in the box on the right side or send a quick quote.
Product Details
- Weight205.1143024 g
- Country Of OriginTW
- Main function Fiber sensor
- Shape Cylindrical (threaded) end tip
- Material Stainless steel sensing end Plastic fiber Polyethylene fiber sheath
- Sub-range name Plastic fiber - Vantage Line
- Design diffuse-reflective system flex strain relief Bifurcated fiber Side / right-angled sensing
- Order code / Manufacturer SKU 88141
- Product series / family name Fiber sensors
- Thread size M6
- Equivalent to PBAT43UHFTAVL
- Primary brand Banner Engineering
- Functions Fiber optic sensor
- Length 3ft / 1m
- Diameter 1mm fiber core
- Ambient air temperature for operation +70 °C
- Sensing Mode (General) Diffuse
- Fiber Sensing End Size 4.0 mm
- Termination Free Cut
- Fiber Optic Type Plastic
- Sensing End Segment 2 Thread
- Max Temp ( °C) 70
- Max Distance: DF-G2 (mm) 238
- Housing Style Round
- Core Diameter (mm) 1
- Feature: Chemical Resistant No
- Max Range: DF-G3 (mm) >1m - <=3m
- Beam Exit Right Angle
- Flex Relief Yes
- Sensing Mode (Detailed) Reflective
- Fiber Length (m) 1
- Sensing End Material (Specific) Stainless Steel
- Sensing End Segment 3 Ferrule
- Fiber Sensing End Tip Ferrule
- Integrated Lens No
- Measured Max Distance (mm) 147
- Fiber Sheathing Material (Jacket) Polyethylene
- Sensing End Segment 1 Angle
- Quantity Included 1
- Retractile No
- Feature: Small Object Detection No
- Max Distance: DF-G1 (mm) 147
- Feature: Extended Range No
- Max Distance: DF-G3 (mm) 1139
- Minimum Bend Radius (mm) 2
- Fiber Sensing End Size - Mounting Area M6
- Application: Liquid Level No
- Minimum Repeat Bending Endurance 1000
- Tariff Fiber Meters (fbm) 2
- Termination Type Plastic Fiber Sensors
- Application: Vacuum Feed Through None
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
PBAT43UHFTA-VL Description
Banner Engineering PBAT43UHFTA-VL is a fiber optic sensor designed with a diffuse-reflective system and bifurcated fiber with a side / right-angled sensing orientation. It features a 1mm fiber core diameter and is part of the Plastic fiber series. The sensor has a cylindrical (threaded) end tip shape, constructed from plastic fiber with a Steelskin fiber sheath for enhanced durability. It measures 6ft / 2m in length, suitable for various industrial applications requiring precise detection and positioning.
Related documents PBAT43UHFTA-VL Specs
