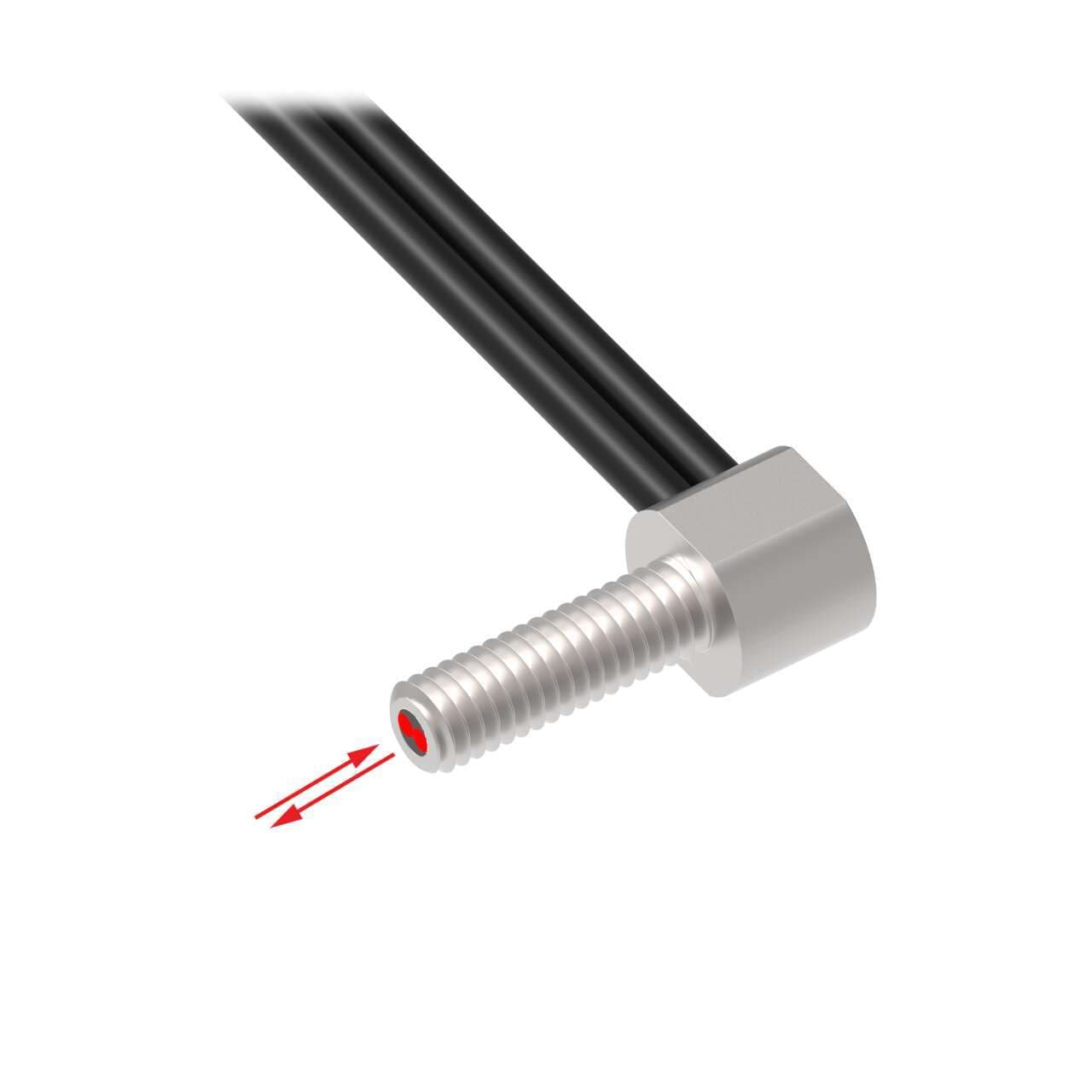

PBAT415UHFMTA Banner Through Beam Sensors

Banner PBAT415UHFMTA Plastic Fiber, Diffuse Reflective; Core Dia.: 1 mm; Fiber Length 5 m; Angle, Thread; DuraBend, Free cut
Banner

Part#:PBAT415UHFMTA

Manufacturer:Banner

Alt. Part#:88604

Product Lifecycle:Active

Get a quick Quote!

Plastic Fiber, Diffuse Reflective; Core Dia.: 1 mm; Fiber Length 5 m; Angle, Thread; DuraBend, Free cut

About the manufacturer: Banner is one of the manufacturers that offers Through Beam Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the PBAT415UHFMTA Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight45.3592 g
  • Country Of OriginJP
  • Housing Style
    Round
  • Minimum Repeat Bending Endurance
    1000
  • Measured Max Distance (mm)
    No Data
  • Sensing Mode (General)
    Diffuse
  • Sensing End Segment 2
    Thread
  • Max Temp ( °C)
    70
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Core Diameter (mm)
    1
  • Feature: Small Object Detection
    No
  • Retractile
    No
  • Termination Type
    Plastic Fiber Sensors
  • Fiber Sensing End Tip
    Thread
  • Fiber Sensing End Size
    M4
  • Feature: Extended Range
    No
  • Max Distance: DF-G1 (mm)
    No Data
  • Fiber Optic Type
    Plastic
  • Fiber Length (m)
    5
  • Feature: Chemical Resistant
    No
  • Fiber Sensing End Size - Mounting Area
    M4
  • Quantity Included
    1
  • Minimum Bend Radius (mm)
    2
  • Application: Liquid Level
    No
  • Sensing End Material (Specific)
    Stainless Steel
  • Termination
    Free Cut
  • Tariff Fiber Meters (fbm)
    10
  • Beam Exit
    Right Angle
  • Sensing End Segment 1
    Angle
  • Integrated Lens
    No
  • Max Distance: DF-G3 (mm)
    No Data
  • Sensing Mode (Detailed)
    Reflective
  • Flex Relief
    No
  • Application: Vacuum Feed Through
    None
  • Max Distance: DF-G2 (mm)
    No Data

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

PBAT415UHFMTA Description

Banner Engineering PBAT415UHFMTA is a fiber optic sensor designed for diffuse-reflective system applications, featuring a flexible, bifurcated fiber with side/right-angled sensing. It operates effectively at an ambient air temperature up to +70°C. This sensor is part of the Plastic fiber (Vantage Line) series, characterized by a 1mm fiber core diameter and a 3ft / 1m length. The design incorporates a cylindrical (threaded) end tip made of stainless steel, with the fiber itself being plastic and encased in a stainless flexible tubing sheath for enhanced durability and flexibility in installation.

Related documents PBAT415UHFMTA Specs

PBAT415UHFMTA PBAT4 SERIES UNTERMINATED HF TIGHT ANGLE-1630954774532.stp
PBAT415UHFMTA PBAT4 SERIES UNTERMINATED HF TIGHT ANGLE-1630954774521.pdf
