OTBA5LQD Banner Sensor Accessories
Part#:OTBA5LQD
Manufacturer:Banner
Alt. Part#:32255
Product Lifecycle:Active
Get a quick Quote!
OTB Series: Momentary Action Touch Button w/Black F.C.; Input: 120 V ac; Upper Housing: Polycarbonate; Output: E/M Relay (SPDT); Mini-style Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Sensor Accessories that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the OTBA5LQD Banner price in the box on the right side or send a quick quote.
Product Details
- Weight221.806488 g
- Country Of OriginMX
- Sensing Mode (General) Single Point Optical
- Input Type AC
- Field Cover Color Black
- Wireless No
- Non-Illuminated Yes
- Max Input Response Time (ms) 100
- Min Op. Temperature (°C) -20
- Modbus RTU No
- Primary Housing Material Polycarbonate
- Product Size (mm) Other
- Actuation Yes
- Number of Input Pins/Conductors 5
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Primary Housing Color Red
- Feature: Quick Disconnect Yes
- Activation Function Optical
- Supply Voltage 105-130 V ac
- Number of Beams 1
- Feature: Chemical Resistant No
- Cable Length (m) 9
- Mounting Thread M30 x 1.5
- Max Output Response Time (ms) 100
- Secondary Material Thermoplastic
- Power Source AC
- Connection Integral QD
- NEMA Type and UL Type Rating NEMA 1, 3, 4, 4X, 12, 13
- Button Operation Momentary
- Power AC
- Operation Normally Open/Normally Closed
- Max Op. Temperature (°C) 50
- IO Link No
- Physical Dimensions (LxWxH or DxH mm) 59.9 x 43.2 x 48.0
- Feature: Audible No
- Housing Style Base Mount - Saddle
- Output Type SPDT e/m Relay
- Environmental Rating IP66
- Feature: Hazardous Area No
- Pro-Editor Compatible (Discrete) No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
OTBA5LQD Description

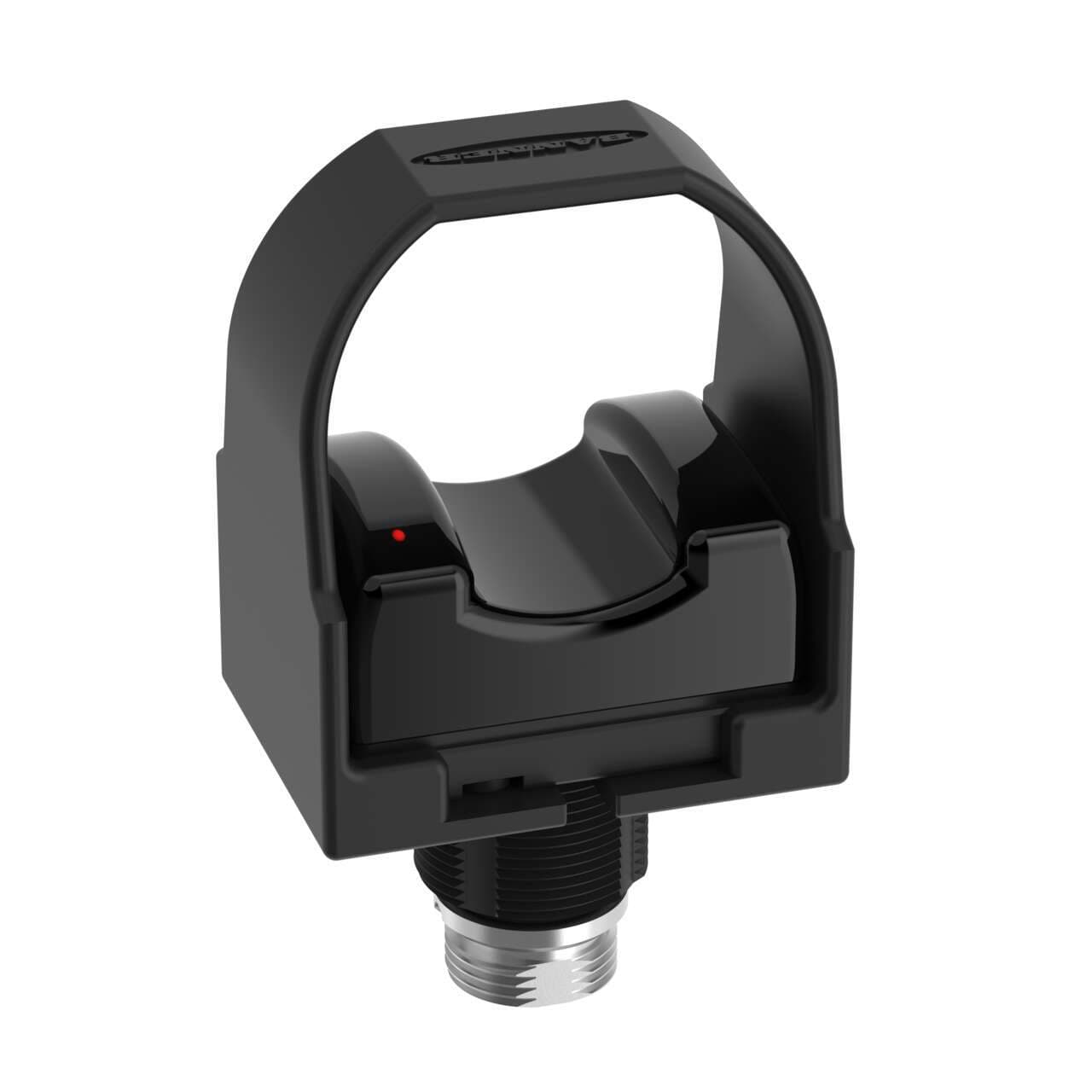

Banner Engineering OTBA5LQD is a photo-electric optical touch-activated button designed for surface or base flush mounting with a 30mm hole. It operates within an ambient air temperature range of -20°C to +50°C and features a black field cover. This part is pre-equipped with a 5-pin 7/8"-16UN-2B Mini-style QD connector for connectivity and requires a supply voltage of 105Vac-130Vac (120Vac nominal). It offers a degree of protection rated at IP66, NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 12, and NEMA 13. The OTBA5LQD has a saddle/yoke-shaped body made from a polycarbonate (PC) upper housing and a thermoplastic polyester base, with a red housing color. It operates in a momentary NO (Normally Open) or NC (Normally Closed) mode and includes 1 x digital output (SPDT / 1NO/NC relay contact type) for touch activation.
Related documents OTBA5LQD Specs
