OTBA5 Banner Sensor Accessories

Banner OTBA5 OTB Series: Momentary Action Touch Button w/Black F.C.; Input: 120 V ac; Upper Housing: Polysulfone; Output: E/M Relay (SPDT); 2 m (6.5 ft) Integral Cable

Part#:OTBA5

Manufacturer:Banner

Alt. Part#:27986

Product Lifecycle:Active

In-stock parts: 18

Jun 20, 2025

OTB Series: Momentary Action Touch Button w/Black F.C.; Input: 120 V ac; Upper Housing: Polysulfone; Output: E/M Relay (SPDT); 2 m (6.5 ft) Integral Cable

About the manufacturer: Banner is one of the manufacturers that offers Sensor Accessories that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the OTBA5 Banner price in the box on the right side or send a quick quote.

Product Details

Weight303.453048 g
Country Of OriginMX
Power
AC
Mounting Thread
M30 x 1.5
Physical Dimensions (LxWxH or DxH mm)
59.9 x 43.2 x 48.0
Feature: Chemical Resistant
No
Cable Length (m)
9
Number of Input Pins/Conductors
5
Number of Beams
1
Button Operation
Momentary
Wireless
No
Power Source
AC
Max Input Response Time (ms)
100
NEMA Type and UL Type Rating
NEMA 1, 3, 4, 4X, 12, 13
Feature: Audible
No
Actuation
Yes
Non-Illuminated
Yes
Product Size (mm)
Other
Supply Voltage
105-130 V ac
Environmental Rating
IP66

Field Cover Color

Black

Secondary Material

Thermoplastic

Modbus RTU

Pro-Editor Compatible (Discrete)

Primary Housing Material

Thermoplastic Polysulfone

Housing Style

Base Mount - Saddle

Operation

Normally Open/Normally Closed

Output Type

SPDT e/m Relay

Max Output Response Time (ms)

100

Min Op. Temperature (°C)

-20

IO Link

Activation Function

Optical

Input Type

Connection

Cable

Sensing Mode (General)

Single Point Optical

Max Op. Relative Humidity Non-Condensing (%)

90% @ 50°C

Max Op. Temperature (°C)

Primary Housing Color

Black

Feature: Quick Disconnect

Feature: Hazardous Area

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

OTBA5 Description

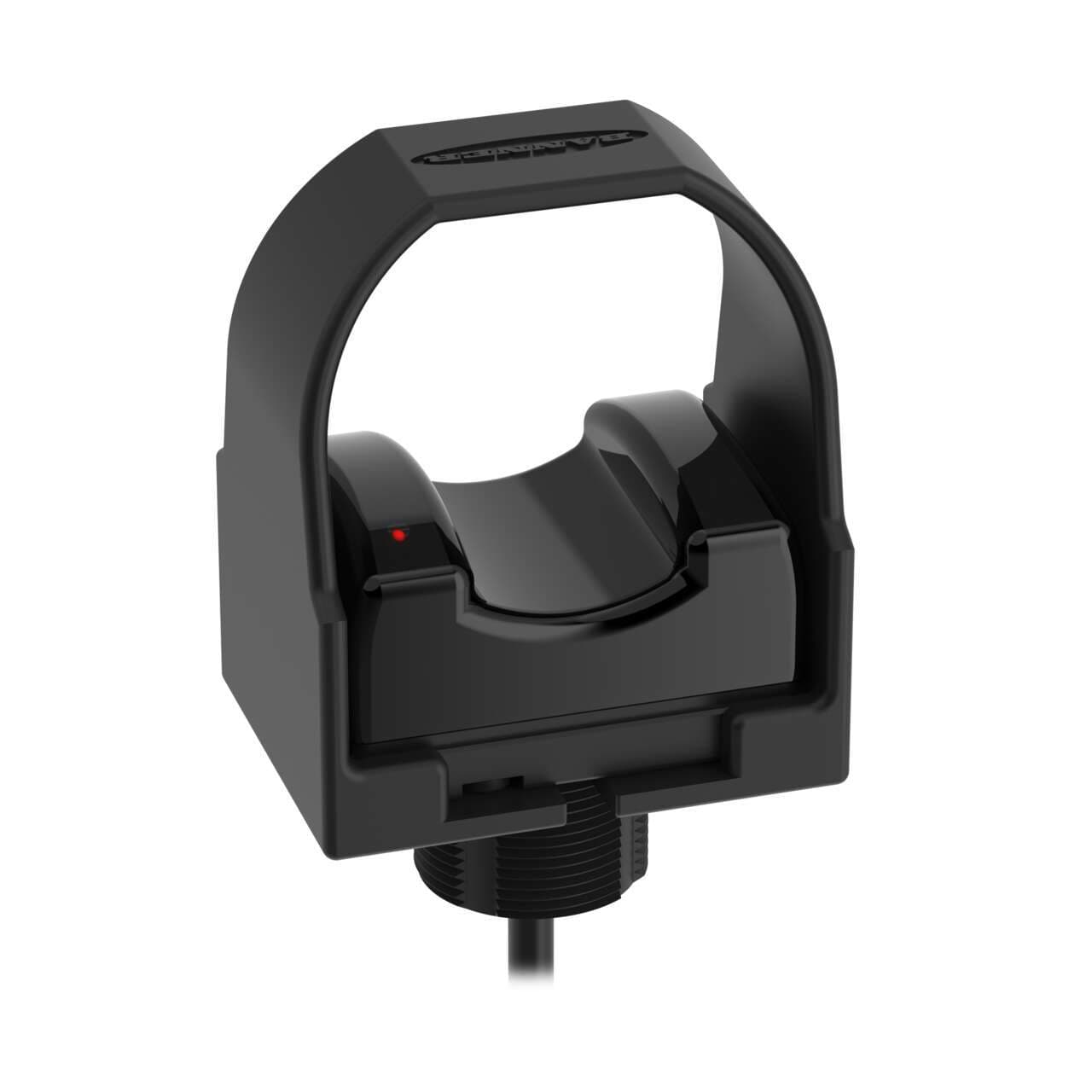

Banner Engineering OTBA5 is a photo-electric optical touch-activated button designed for surface or base flush mounting with a 30mm hole requirement. It operates within an ambient air temperature range of -20°C to +50°C and features a black field cover for its design. This part is pre-wired with a 2m / 6.5ft 5-wire cable terminated with bare end flying leads, supporting a supply voltage of 105Vac-130Vac (120Vac nominal). It offers a degree of protection rated at IP66 NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 12, and NEMA 13. The OTBA5 has a saddle/yoke-shaped body made from a polysulfone upper housing and a thermoplastic polyester base, presented in a black color. Its operating mode is momentary, offering Normally Open (NO) or Normally Closed (NC) configurations, and it includes 1 x digital output (SPDT / 1NO/NC relay contact type) for touch activation.
