K80LGRYBWPQ8 Banner Pick-to-Light Sensors
Part#:K80LGRYBWPQ8
Manufacturer:Banner
Alt. Part#:77524
Product Lifecycle:Active
Get a quick Quote!
K80 Series EZ-LIGHT: 5-Color Multi-Function Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Green Red Yellow Blue White; M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K80LGRYBWPQ8 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight340.194 g
- Country Of OriginUS
- Primary Housing Material Polycarbonate
- Color Option 3 Yellow
- Supply Voltage 18-30 V dc
- IO Link No
- Indication Yes
- Color Option 2 Red
- Color Option 5 White
- Max Op. Temperature (°C) 50
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Technology Standard LED
- Animation Option 3 Multiple
- Physical Dimensions (LxWxH or DxH mm) 107.6 x 80.9 x 66.7
- Power DC
- Color Option 1 Green
- Color Option 4 Blue
- Environmental Rating IP67
- Multi-Color Device Single Color On - Alternating
- Wireless No
- Power Source DC
- Animation Option 2 Multiple
- Wire Selectable Function Multi-Function
- Primary Window Material Acrylic Diffused
- Pro-Editor Compatible (Discrete) No
- Mounting Thread No Thread
- Product Size (mm) 80
- Max Input Response Time (ms) 10
- Primary Housing Color Yellow
- Feature: Quick Disconnect Yes
- Cable Length (m) 0.15
- Animation Option 1 Multiple
- Input Type PNP
- Min Op. Temperature (°C) -40
- Modbus RTU No
- Number of Colors / Segments 5
- Quick Disconnect Type M12 (Euro)
- Max Current Color (mA) 40
- Feature: Hazardous Area No
- Housing Style Flat Mount - Dome Window
- Connection Integral QD
- Number of Input Pins/Conductors 5
- Feature: Audible No
- Feature: Chemical Resistant No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K80LGRYBWPQ8 Description

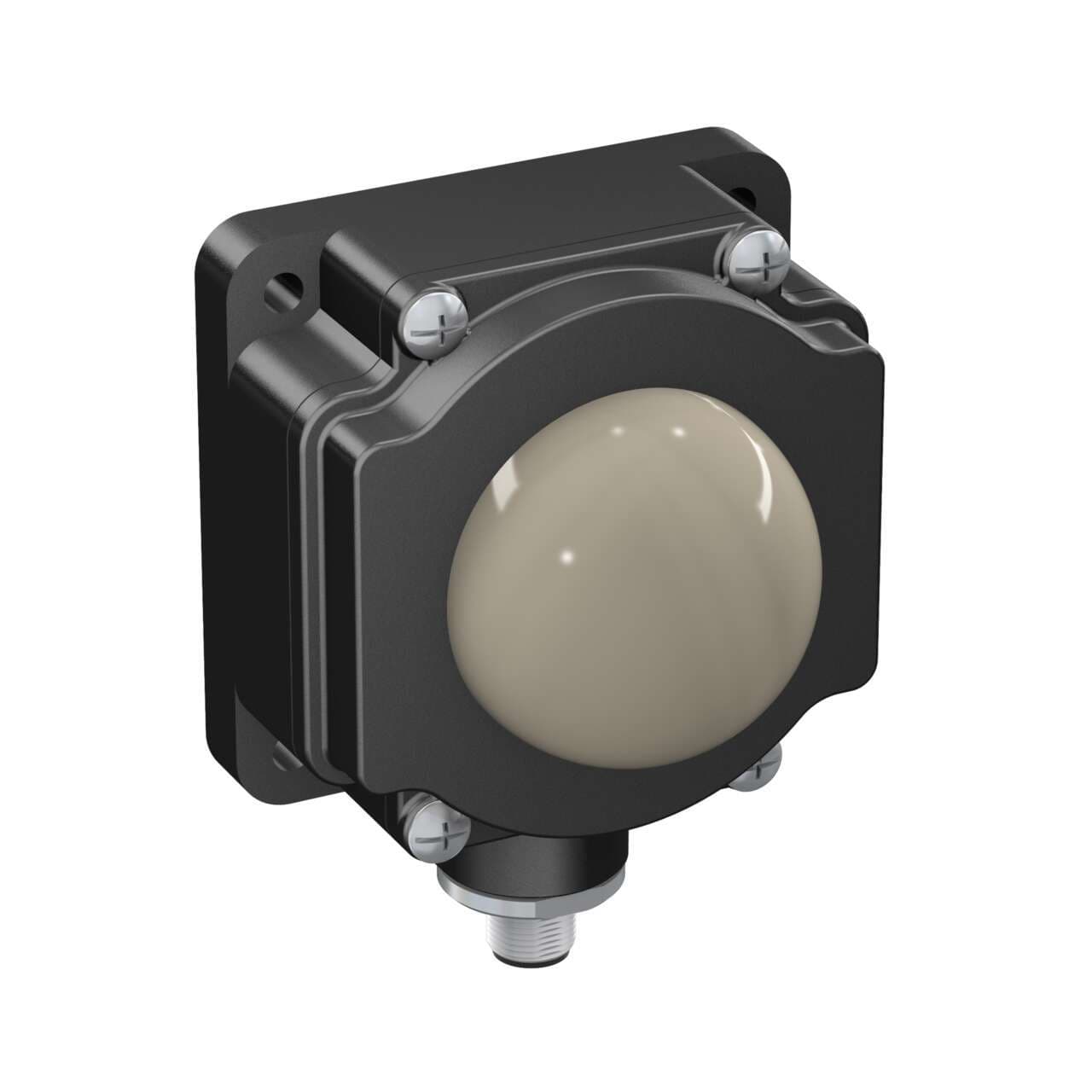

Banner Engineering K80LGRYBWPQ8 is a pilot light from the EZ-LIGHT series designed for versatile signaling applications. This flat-pack LED pilot light indicator features a 5-color multifunction G/R/Y/B/W color pattern LED illumination housed in a yellow acrylic diffused window with a polycarbonate (PC) base. The design includes a dome window on a flat-pack body, ensuring clear visibility. It offers a screw-clamp terminal connection for secure installation and operates on a supply voltage of 18Vdc-30Vdc, with 24Vdc nominal. Suitable for surface or wall mounting with an 80x80mm footprint, the unit has a 50mm / 2" dome diameter. It is engineered to function within an ambient air temperature range of -40°C to +50°C and is protected against ingress with an IP67 rating. The current consumption is 40mA, and it features 5 x digital inputs (18-30Vdc; PNP) for color control.
