K80LGRAL1YPQ Banner Pick-to-Light Sensors
Part#:K80LGRAL1YPQ
Manufacturer:Banner
Alt. Part#:79484
Product Lifecycle:Active
Get a quick Quote!
K80 Series EZ-LIGHT: 3-Color Audible Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP50; Tone: Loud; Input: PNP; Colors: Green Red Yellow; M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K80LGRAL1YPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight294.8348 g
- Country Of OriginUS
- Animation Option 1 Solid On
- Supply Voltage 18-30 V dc
- Environmental Rating IP50
- Feature: Quick Disconnect Yes
- Cable Length (m) 0.15
- Quick Disconnect Type M12 (Euro)
- Audible Alarm Type Continuous
- Max Op. Temperature (°C) 50
- Modbus RTU No
- Indication Yes
- Color Option 2 Red
- Max Current - Audible Alarm (mA) 40
- Wireless No
- Housing Style Flat Mount - Dome Window
- Color Option 3 Yellow
- Audible Operating Frequency (kHz) 2.7
- Primary Window Material Acrylic Diffused
- Power Source DC
- Color Technology Standard LED
- Max Audible Intensity (db at 1m) 95
- Feature: Audible Yes
- Primary Housing Material Polycarbonate
- Number of Colors / Segments 3
- Number of Input Pins/Conductors 5
- Physical Dimensions (LxWxH or DxH mm) 136.6 x 80.9 x 66.7
- Multi-Color Device Single Color On
- Mounting Thread No Thread
- Max Current Color (mA) 40
- Max Input Response Time (ms) 10
- Feature: Chemical Resistant No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Product Size (mm) 80
- Primary Housing Color Yellow
- Pro-Editor Compatible (Discrete) No
- Color Option 1 Green
- Min Op. Temperature (°C) -20
- IO Link No
- Power DC
- Connection Integral QD
- Input Type PNP
- Feature: Hazardous Area No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K80LGRAL1YPQ Description

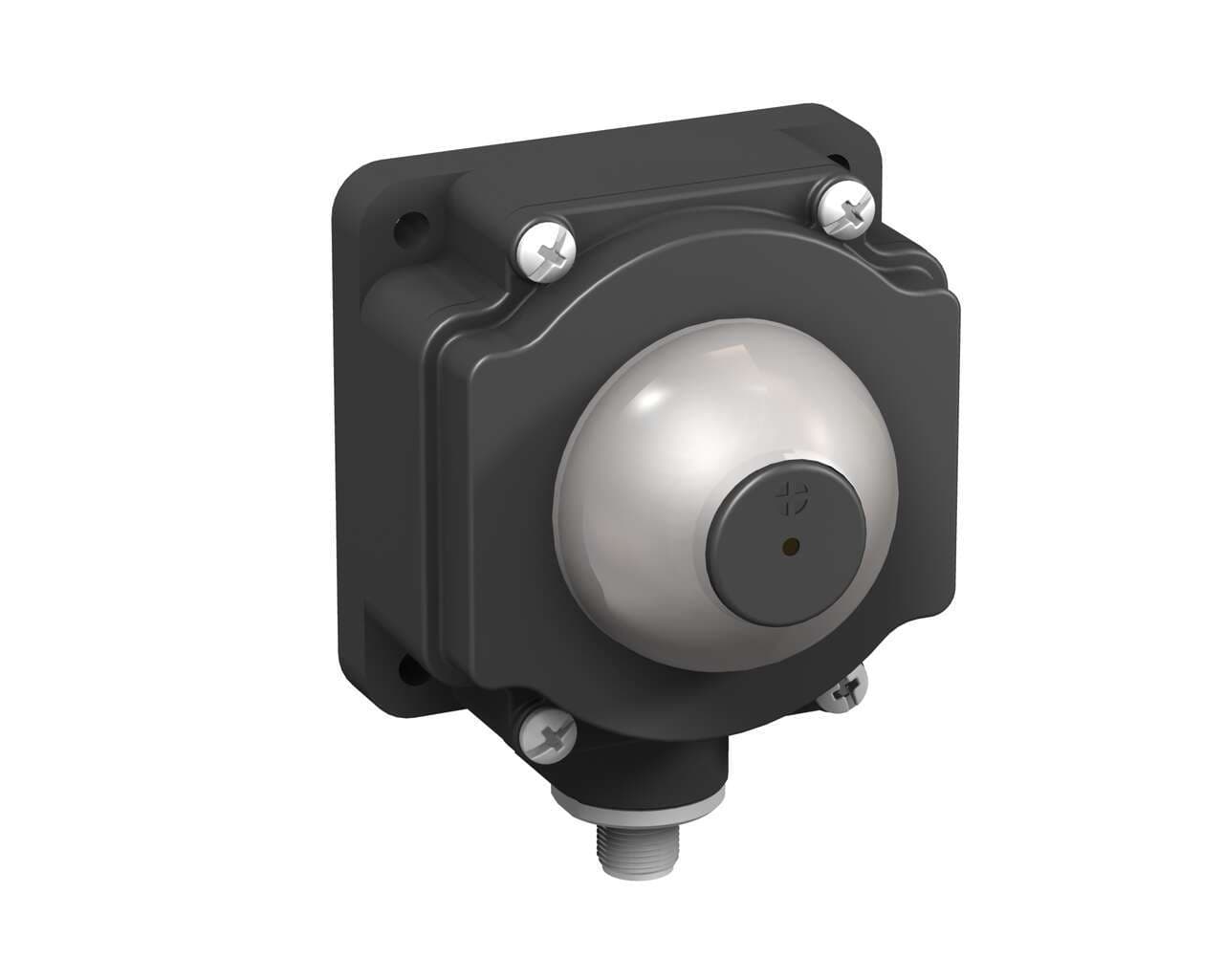

Banner Engineering K80LGRAL1YPQ is a pilot light from the EZ-LIGHT series designed with a flat-pack audible LED pilot light indicator. It features a continuous loud sound and 3-color G/R/Y color pattern LED illumination housed in a black casing. The dome window is made from acrylic with a diffused finish, and the base is constructed from polycarbonate (PC), ensuring durability. This part offers a screw-clamp terminal connection for secure installation and operates on a supply voltage of 18Vdc to 30Vdc, with 24Vdc as the nominal voltage. It is designed for surface or wall mounting with an 80x80mm footprint and has a 50mm (2") diameter dome. The K80LGRAL1YPQ can operate in ambient air temperatures ranging from -20°C to +50°C and boasts a degree of protection rated at IP50, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. It has a current consumption of 40mA and is equipped with three digital inputs for color control and one digital input for alarm input, all accepting 18-30Vdc PNP signals.
