K30PTKQP Banner Pick-to-Light Sensors
Part#:K30PTKQP
Manufacturer:Banner
Alt. Part#:809274
Product Lifecycle:Active
Get a quick Quote!
K30 Pro Touch with IO-Link Series: RGB Touch Sensor; Voltage: 18-30 V dc; Housing: Polycarbonate; Environ. Rating: IP67 IP69K; Colors: Multicolor; 150 mm (6 in) 4-pin M12 PVC Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K30PTKQP Banner price in the box on the right side or send a quick quote.
Product Details
- Weight75.97666 g
- Country Of OriginMX
- Activation Function Capacitive Touch
- Color Option 1 RGB
- Actuation Yes
- Quick Disconnect Type M12 (Euro)
- Housing Style Base Mount - Dome Window
- Connection Pigtail QD
- Cable Length (m) 0.15
- Product Size (mm) 30
- Primary Housing Material Polycarbonate
- Dimming Option Programmable
- Mounting Thread M22 x 1.5
- Max Output Response Time (ms) 300
- Primary Housing Color Black
- Feature: Hazardous Area No
- Power DC
- Color Input Control Communication Protocol
- Number of Input Pins/Conductors 4
- I/O Block Compatible Yes
- Supply Voltage 18-30 V dc
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 48.5
- Min Op. Temperature (°C) -40
- Max Input Response Time (ms) 5
- Storage Temp (°C) -40 to 70
- Max Op. Temperature (°C) 50
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Environmental Rating IP67; IP69
- Feature: Washdown Rated Yes
- Button Operation Programmable
- Power Source DC
- Color Technology RGB IO-Link
- Number of Colors / Segments Programmable
- Animation Option 1 Programmable
- Input Type Communication Protocol
- Output Type Communication Protocol
- Max Current Color (mA) 40
- Pick-to-Light Function Programmable
- Operation Programmable
- Wireless No
- Multi-Color Device Simultaneous Colors On
- Feature: Audible No
- Feature: Chemical Resistant No
- Modbus RTU No
- Primary Window Material Polycarbonate Diffused
- Pro-Editor Compatible (Discrete) No
- IO Link Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K30PTKQP Description

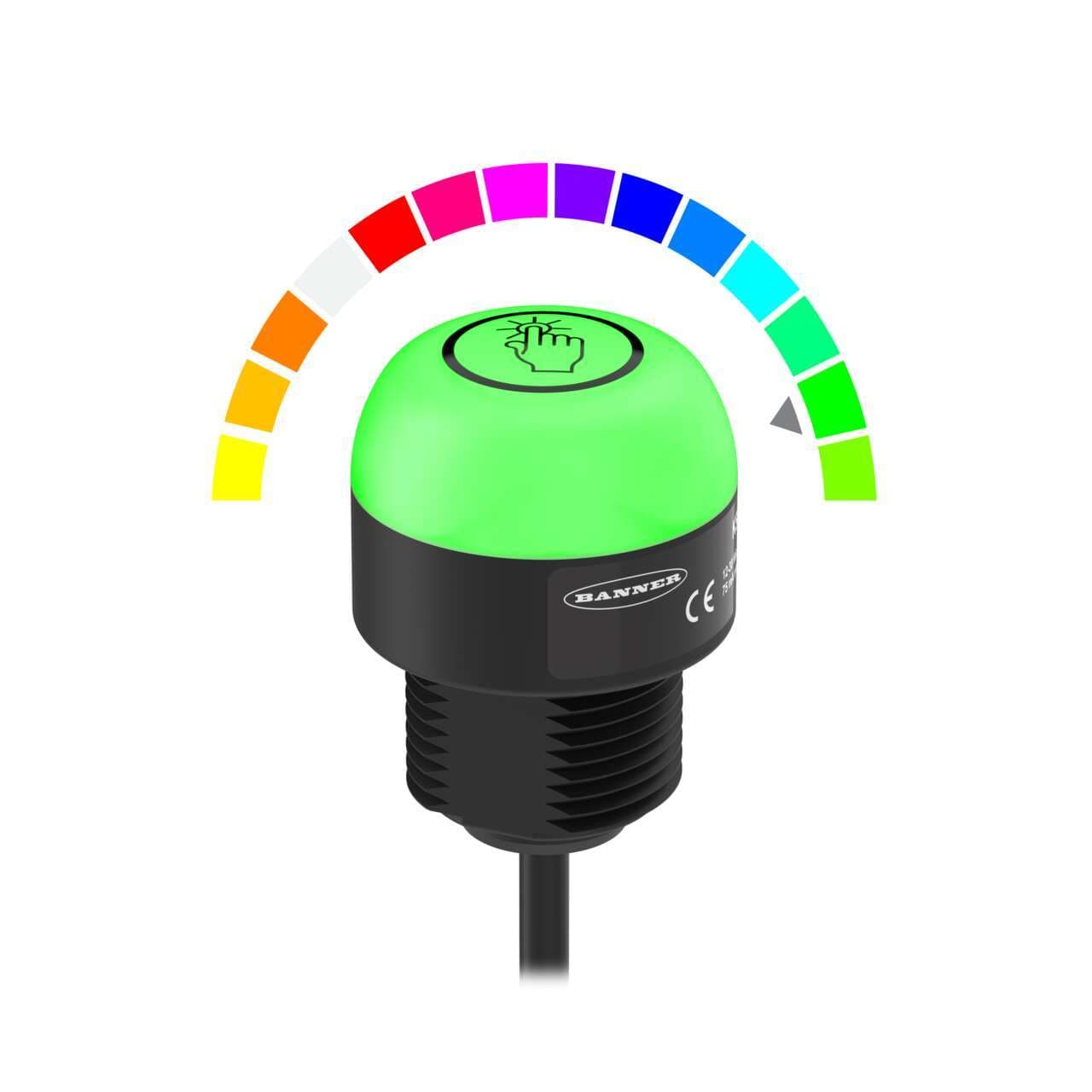

Banner Engineering K30PTKQP is a programmable capacitive touch-sensitive button designed with a black polycarbonate housing and a dome-shaped window. This part features IO-Link compatibility and offers 14-color multicolor LED illumination for clear status indication. It is pre-wired with a 6-inch (15cm) pigtail that terminates with a 4-pin M12 Euro-style quick disconnect (QD) connector. The K30PTKQP operates on a supply voltage range of 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc, and has a current consumption of 40mA. It supports both momentary and latched operating modes, which are programmable to suit various application needs. The touch-button is designed for surface or base pole mounting with an M22 thread and features a 30mm (1-3/16 inch) dome diameter. It can operate in ambient air temperatures ranging from -40°C to +50°C and is rated for IP67 and IP69K degrees of protection, ensuring durability in harsh environments.
