K30PTKQ Banner Pick-to-Light Sensors
Part#:K30PTKQ
Manufacturer:Banner
Alt. Part#:809273
Product Lifecycle:Active
Get a quick Quote!
K30 Pro Touch with IO-Link Series: RGB Touch Sensor; Voltage: 18-30 V dc; Housing: Polycarbonate; Environ. Rating: IP67 IP69K; Colors: Multicolor; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K30PTKQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight72.121128 g
- Country Of OriginMX
- Primary Housing Material Polycarbonate
- Animation Option 1 Programmable
- Number of Input Pins/Conductors 4
- Power Source DC
- Product Size (mm) 30
- Housing Style Base Mount - Dome Window
- Activation Function Capacitive Touch
- Color Technology RGB IO-Link
- Max Input Response Time (ms) 5
- Cable Length (m) 0.15
- Pick-to-Light Function Programmable
- Actuation Yes
- Storage Temp (°C) -40 to 70
- Color Input Control Communication Protocol
- Connection Integral QD
- Mounting Thread M22 x 1.5
- Max Current Color (mA) 40
- Power DC
- Number of Colors / Segments Programmable
- Output Type Communication Protocol
- I/O Block Compatible Yes
- Color Option 1 RGB
- Quick Disconnect Type M12 (Euro)
- Dimming Option Programmable
- Operation Programmable
- Supply Voltage 18-30 V dc
- Input Type Communication Protocol
- Environmental Rating IP67; IP69
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Max Output Response Time (ms) 300
- Feature: Washdown Rated Yes
- Modbus RTU No
- Multi-Color Device Simultaneous Colors On
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 54.5
- IO Link Yes
- Button Operation Programmable
- Pro-Editor Compatible (Discrete) No
- Primary Housing Color Black
- Feature: Hazardous Area No
- Min Op. Temperature (°C) -40
- Primary Window Material Polycarbonate Diffused
- Wireless No
- Max Op. Temperature (°C) 50
- Feature: Chemical Resistant No
- Feature: Audible No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K30PTKQ Description

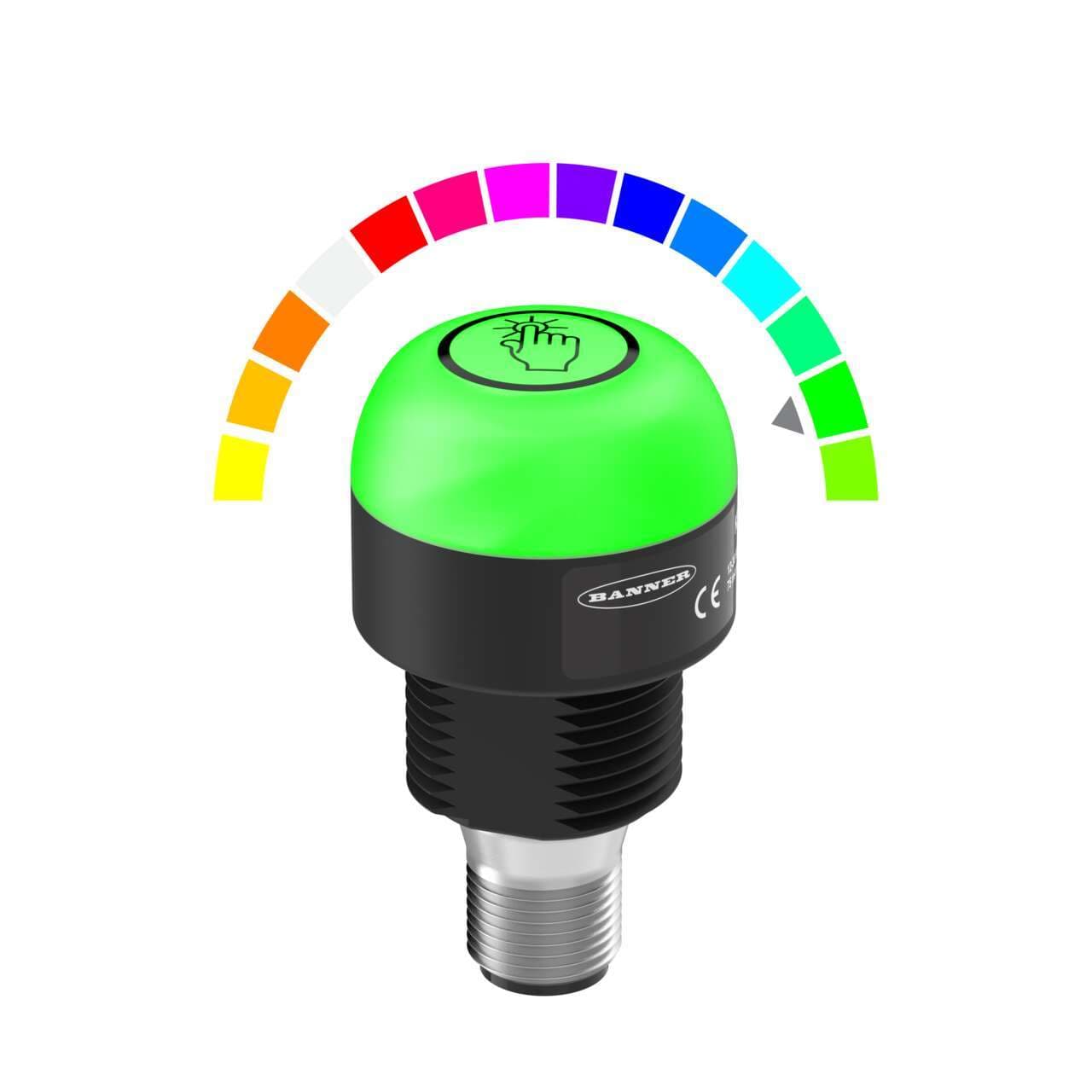

Banner Engineering K30PTKQ is a programmable capacitive touch-sensitive button featuring IO-Link compatible 14-color multicolor LED illumination. This part comes in a black housing with a dome window shape made of polycarbonate. It is pre-equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector. The supply voltage required ranges from 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc. It offers flexible mounting options, including surface or base pole with an M22 thread, and has a diameter of 30mm or approximately 1-3/16 inches for the dome. The K30PTKQ can operate in ambient air temperatures ranging from -40°C to +50°C and is designed with a degree of protection rated at IP67 and IP69K. Its operating modes can be programmed as either momentary or latched, and it has a current consumption of 40mA.
Related documents K30PTKQ Specs
