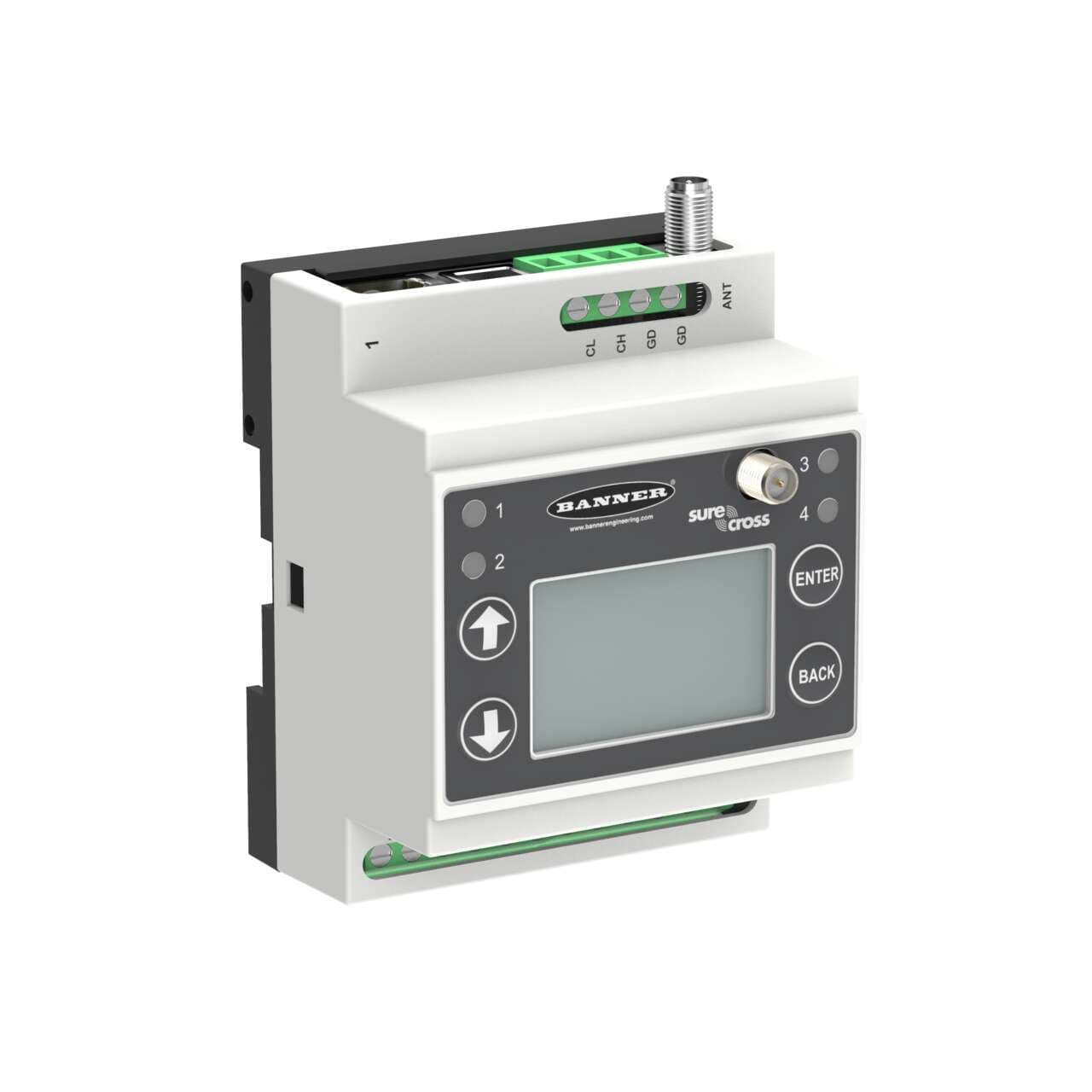

DXM700-B1 Banner I/O Modules
Part#:DXM700-B1
Manufacturer:Banner
Alt. Part#:806251
Product Lifecycle:Active
Get a quick Quote!
DXM700 Controller; I/O Base Board Only; Outputs: 4 PNP; M7 Processor, 16MB Memory, LCD Display; RS485, Ethernet, USB
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DXM700-B1 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight317.5144 g
- Country Of OriginUS
- Output Details 4 PNP
- EtherNet/IP Yes
- 1-wire Serial Interface No
- Relative Humidity 95%
- Modbus RTU Yes
- Input/Output Analog & Discrete
- Dimension Length (mm) 70
- Environmental Rating (IP) IP20
- On-Board Memory (MB) 16
- RS-232 No
- Housing Style External Terminals
- Feature: Hazardous Area No
- Wireless Yes
- Max Temp Operating Conditions 60
- Processing Speed (MHz) 300
- PROFINET Yes
- Power Supply 12-30 V dc
- Application: Indicator Light Yes
- Discrete Outputs Yes
- Min Temp Operating Conditions -20
- LCD Display Yes
- RS-485 Yes
- Device Type Wireless Controller
- Power DC
- Application: Pick-to-Light Yes
- Modbus/TCP Yes
- Wireless Radio Frequency N/A
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DXM700-B1 Description
Banner Engineering DXM700-B1 is a remote I/O controller designed for DIN rail mounting, featuring a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP20. The dimensions of this part are H58.1mm x W70mm x D94.5mm. It includes 4 digital outputs (12Vdc-30Vdc; PNP/NPN; 100mA) and functions primarily as a Modbus controller within the DXM700-B1 series. The design is focused on an I/O base board only, with a 300MHz processing speed for efficient data aggregation of sensor and wireless networks, utilizing FHSS (Frequency Hopping Spread Spectrum) technology and an M7 processor. Connection types include an RJ45 connector for Ethernet and an RP-SMA connector. The supply voltage required is 12-30Vdc (12Vdc-24Vdc nom.), and it supports RS-485 Modbus RTU, Modbus TCP, and Ethernet/IP communication protocols. Memory capacity is provided by 16MB of on-board memory and an expandable 8GB via SD card.
Related documents DXM700-B1 Specs
